4.25-6.25m
2-12cm
>150 hp
125mm
Carrier 420-820 can be fitted with either 450mm discs or 470mm TrueCut discs. Both discs produces fine tilth optimal for a stale seedbed.
The 450mm disc has small cut-outs, resulting in an intensive cultivation even at a very shallow working depth. The 470mm TrueCut disc has larger cut-outs which can handle more crop residue with increased penetration.
CrossCutter Disc performs outstanding in oilseed rape stubble and in cover crops, while also enabling great advantages in grain stubble as well as on ploughed land. Because of its disc shape and high quality Swedish steel, CrossCutter Disc provides full cut-out and intensive mixing at shallow working depth. This means that an extensive stale seedbed is created over the entire field.
The discs are positioned in an x-shape, which enables the lateral forces to cancel each other out. The x-disc format guarantees that the machine will always run dead straight behind the tractor. This saves diesel but is also essential when using a GPS guidance system or when driving in hilly conditions.
By equipping Carrier 500 and Carrier 650 with the intensive knife roller CrossCutter Knife, crop residues can be cut in two directions. Weeds and small-seeded crops, such as oilseed rape, profit from an improved germination. A benefit after grain or sunflowers is the intensified chopping of the straw, giving a faster decomposition. Additionally, cover crops can be crushed and incorporated cost efficiently.
With CrossBoard Heavy, clods are crushed and the soil is levelled. A double acting stabilising bar increases levelling capacity.
The CrossBoard is equipped with master and slave cylinders, which ensures a level work result by maintaining the position of each CrossBoard section.
On ploughed heavy land, CrossBoard Heavy enables Carrier to prepare a well prepared seedbed which in turn reduces the number of passes required.
With a strong tube frame and heavy-duty joints, Carrier X is constructed to withstand heavy stresses.
You benefit from a long working life with exceptional working results in the field.
By equipping the Carrier XT 425-625 with the mountable small seeder, BioDrill 360, small-seeded crops such as canola or cover crops can be established in the same pass as the cultivation operation.
The integrated ground radar ensures precise speed detection, while the high fan capacity guarantees even distribution of all seed sizes.
BioDrill delivers accurate seeding, all while reducing the number of passes required in the field.

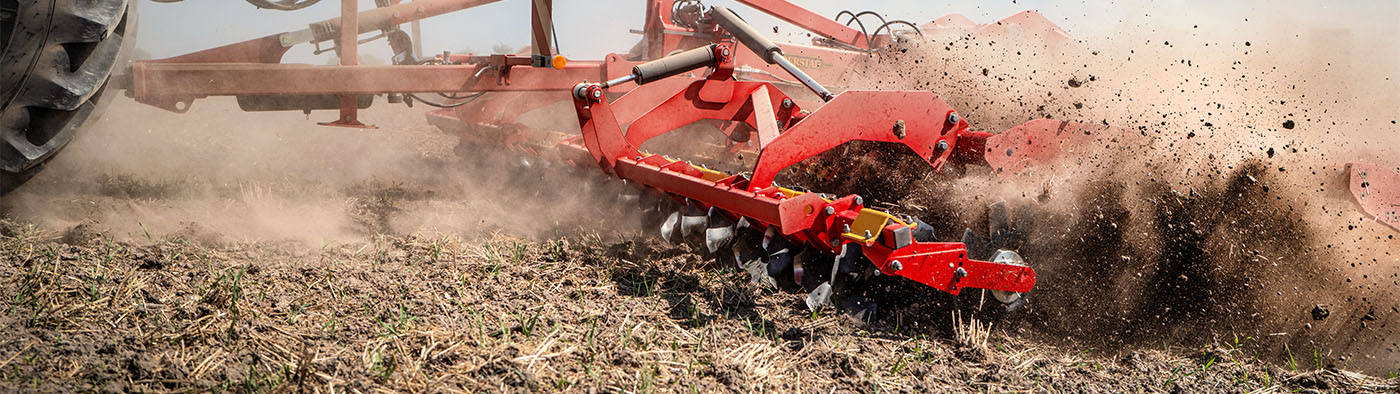

Whether you require a stale seedbed, levelling of ploughed land or cover crop incorporation, the optional front tools offer versatility to different farming requirements.
CrossCutter Knife
CrossCutter Knife is the optimal toolbar for efficiently and economically incorporating cover crops or creating an false seedbed for oilseed rape. It can also be used for cutting up heavy stubble and straw for faster decomposition.
CrossBoard Heavy
CrossBoard Heavy consists of hardened tines with angled wearing plates, crushing clods and levelling the field. On ploughed heavy land, CrossBoard Heavy enables Carrier to prepare a well prepared seedbed which in turn reduces the number of passes required.
Two rows of high quality V-55 hardened Swedish steel discs aggressively cuts and mixes harvest residues down to 12cm working depth. The conical shape of the discs ensures a long working life and good crumbling of the soil.
CrossCutter Disc
CrossCutter Disc, which has a diameter of 450mm, works very intensively with a full cut-out at ultra-shallow working depth at 2-3cm. Learn more about CrossCutter Disc
CrossCutter Disc Aggressive
CrossCutter Disc Aggressive, with a diameter of 450mm, works very intensively with full cultivation at an ultra-shallow working depth of 2-3cm. The cut-outs of the CrossCutter Disc Aggressive increases its penetration capability in hard or heavy soil conditions. Learn more about CrossCutter Disc
450mm discs
The 450mm conical discs aggressively cuts the top layer of soil and mixes in straw, soil and residues very intensively.
TrueCut 470mm discs
The TrueCut 470mm disc has the same conical shape as the standard 450mm disc, but have bigger cut-outsthat are better suited to handle larger amounts of crop residues. TrueCut ensures that the shape of the disc is maintained during its whole working life. Learn more about TrueCut
Carrier can be equipped with packers suitable for a wide range of field conditions. The rubber suspension on the packer absorbs shocks and extends the working life of the frame and the packer.
Single SteelRunner
Single SteelRunner have an aggressive profile crushing clods and ensuring even consolidation throughout the working depth. The single SteelRunner works best on medium to heavy soils and in cloddy conditions. Pending scrapers keep the packer clean in all conditions.
Double SteelRunner
Double SteelRunner is a very aggressive steel packer which works well in all soil types, including wet conditions. Because of the design of the packer the soil dries up faster, thereby allowing the farmer to quickly go out on the field for the next operation. Double SteelRunner creates a full depth reconsolidation and a heavy clod breaking.
CageRunner HeavyDuty
The robust CageRunner HeavyDuty offers a good carrying capacity and precise depth control for light to medium heavy soils.
Single SoilRunner
Single SoilRunner is a U-profile packer which uses soil to act against soil, leaving an open cultivated surface. Owing to its design, the single SoilRunner does not clog and the draught requirement is low. Since the U-profile is filled with soil the wear is reduced.
Double SoilRunner
Double SoilRunner is a u-profile packer. The packer let soil act against soil, leaving an open cultivated surface. Owing to its design, the double SoilRunner does not clog and the draught requirement is low. Due to its large carrying capacity it is best on light to medium soils.
Following harrow
The following harrow tines levels the surface layer, bringing the larger aggregates and crop residues to the top.
Tiller tines
The heavy Tiller tines levels the field and gives a slight consolidation.
