Carrier XT 425-625 - Trailed

4.25-6.25m

2-12cm

>150 hp

125mm

Optimized tillage performance

The trailed models of Carrier XT 425-625 is a foldable disc cultivator with discs positioned in an x-shape, available in 4.25, 5.25 or 6.25 metre working width. With an easy machine setting as well as rotating disc axles, Carrier XT is built to optimize the tillage result depending on the working depth.

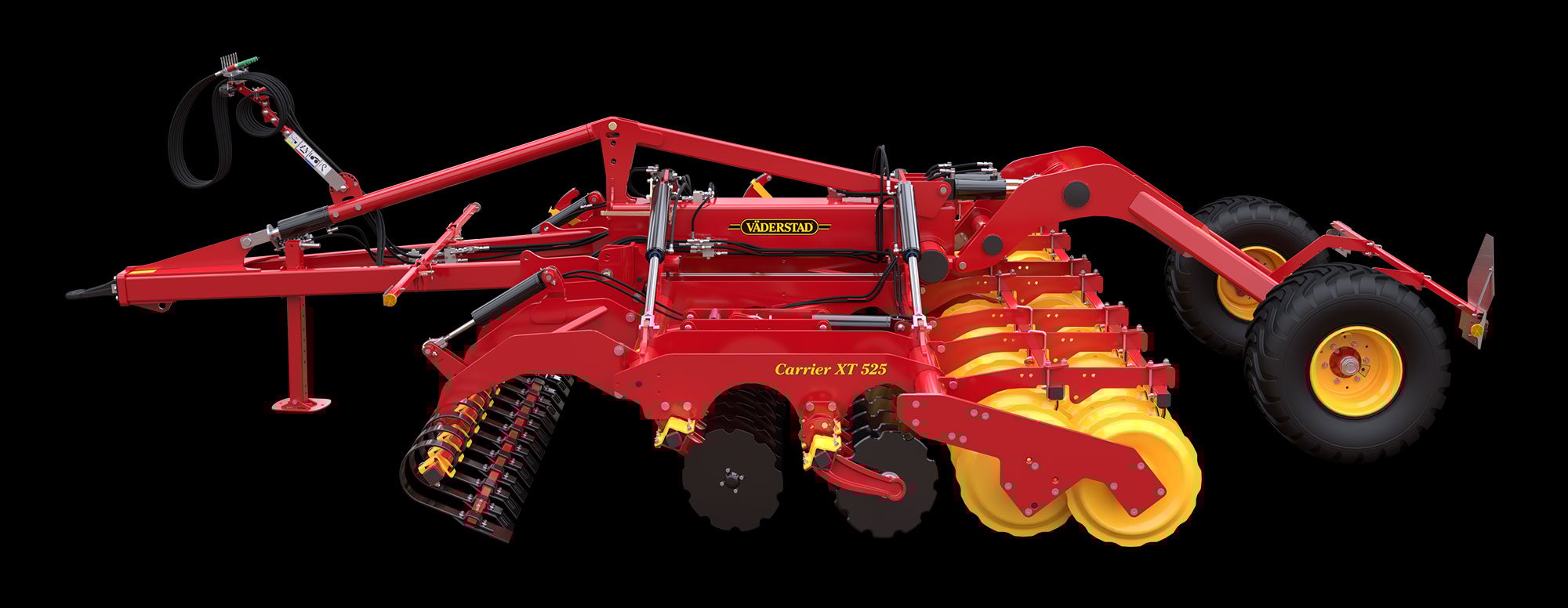

Click to active 360 product spinner
Part of the Carrier concept

Carrier is a disc cultivator used for high speed primary tillage and seedbed preparation. The wide range of front tools, discs and packers enables Carrier to handle the versatile challenges of modern farming – from ultra-shallow cultivation to a deeper incorporation. The versatility it brings to the farm saves passes, decreases machine cost per hectare and provides the best start possible for the coming crop.

Learn more about the Carrier concept

It's all about angles

A main feature of Carrier XT is its hydraulically rotating disc axles. Thereby Carrier XT is able to optimize the cut-out performance at shallow depth, while increasing the depth precision at deeper working depths. Reducing the amount of soil moved and optimizing the machine weight, is important to deliver best possible results as well as minimise the diesel consumption. By adapting the disc angles to the working depth, Väderstad Carrier can do more with less.

For the farmer, this is seen in a full cut-out at shallower working depth, as well as an excellent depth keeping and reduced soil flow at deeper working depths.

Read more
Väderstad Carrier with discs according to requirement

Discs according to requirement

Carrier XT 425-625 can be fitted with either 450mm discs or 470mm TrueCut discs. Both discs produces fine tilth optimal for a stale seedbed.

The 450mm disc has small cut-outs, resulting in an intensive cultivation even at a very shallow working depth. The 470mm TrueCut disc has larger cut-outs which can handle more crop residue with increased penetration.

Read more

Disc Configurator

To meet differing farming needs, Väderstad offers a wide range of discs for disc cultivators. With the right choice of discs you are able to optimise the working result on your fields, providing the best start possible for the next crop.

Read more
Intensive ultra-shallow tillage with CrossCutter Disc

Intensive ultra-shallow tillage

CrossCutter Disc performs outstanding in oilseed rape stubble and in cover crops, while also enabling great advantages in grain stubble as well as on ploughed land. Because of its disc shape and high quality Swedish steel, CrossCutter Disc provides full cultivation and intensive mixing at shallow working depth. This means that an extensive stale seedbed is created over the entire field.

Read more
Väderstad X-disc runs straight behind the tractor

X stands for x-disc

The discs are positioned in an x-shape, which enables the lateral forces to cancel each other out. The x-disc format guarantees that the machine will always run dead straight behind the tractor. This saves diesel but is also essential when using a GPS guidance system or when driving in hilly conditions.

Read more
Intensive knife roller CrossCutter Knife

CrossCutter Knife adds versatility

By equipping Carrier XT with the intensive knife roller CrossCutter Knife, crop residues can be cut in two directions.

Weeds and small-seeded crops, such as oilseed rape, profit from an improved germination. A benefit after grain or sunflowers is the intensified chopping of the straw, giving a faster decomposition. Additionally, cover crops can be crushed and incorporated cost efficiently.

Learn more
Read more
Väderstad Carrier CrossBoard heavy for perfect levelling

CrossBoard Heavy for perfect levelling

With CrossBoard Heavy, clods are crushed and the soil is levelled. A double acting stabilising bar increases levelling capacity.

The CrossBoard is equipped with master and slave cylinders, which ensures a level work result by maintaining the position of each CrossBoard section.

On ploughed heavy land, CrossBoard Heavy enables Carrier to prepare a well prepared seedbed which in turn reduces the number of passes required.

Read more
CrossBoard Performance

Maximum CrossBoard performance

The double-acting stabiliser bar connects the CrossBoard tines to one single unit, preventing separate tines to move either forward or backward. This radically increases the suspension power and in turn the capacity to both level the field, and crush clods.

Read more

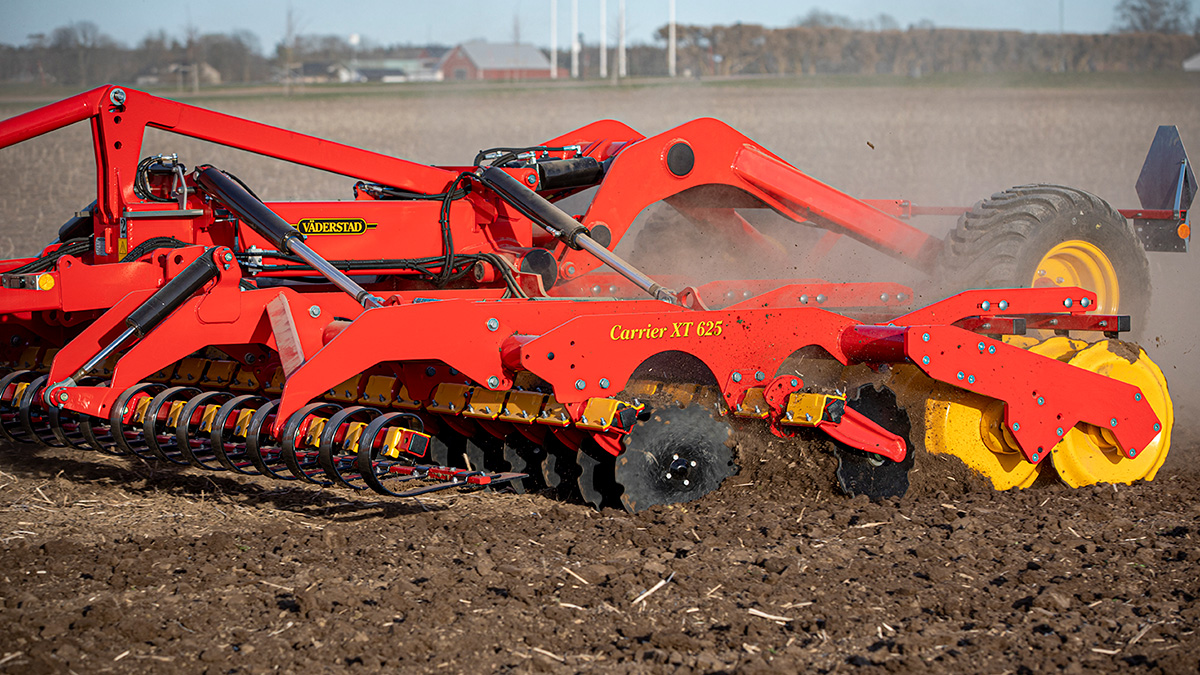

Väderstad Carrier XT heavy-duty design for long working life

Heavy-duty design for long working life

With a strong tube frame and heavy-duty joints, Carrier XT is constructed to withstand heavy stresses.

You benefit from a long working life with exceptional working results in the field.

Read more
Packer suspension

Unique packer suspension

All Väderstad packers are equipped with packer suspensions. This reduces the shocks into the frame, drastically increasing the machine working life.

Read more

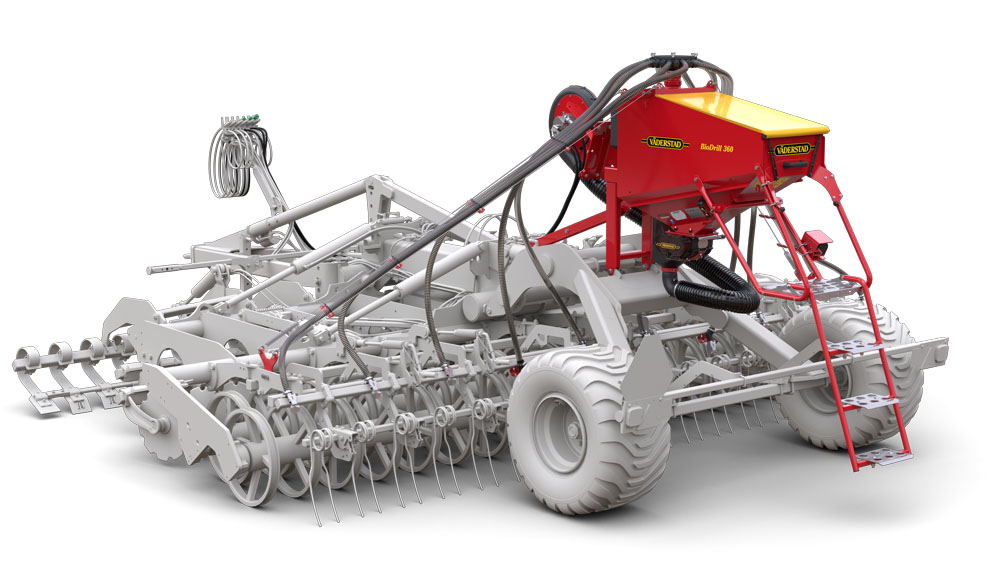

Rendered image of BioDrill mounted on a Carrier XT

Save Passes with BioDrill

By equipping the Carrier XT 425-625 with the mountable small seeder, BioDrill 360, small-seeded crops such as oilseed rape or cover crops can be established in the same pass as the cultivation operation.

The integrated ground radar ensures precise speed detection, while the high fan capacity guarantees even distribution of all seed sizes.

BioDrill delivers accurate seeding, all while reducing the number of passes required in the field.

Read more about BioDrill
Read more

Product concept

Zone 1 - Front tools

Whether you require a stale seedbed, levelling of ploughed land or cover crop incorporation, the optional front tools offer versatility to different farming requirements.

CrossCutter Knife

CrossBoard Heavy

Zone 2 - Intensive cutting and mixing

Two rows of high quality V-55 hardened Swedish steel discs aggressively cuts and mixes harvest residues down to 12cm working depth. The conical shape of the discs ensures a long working life and good crumbling of the soil.

CrossCutter Disc

CrossCutter Disc Aggressive

450mm discs

TrueCut 470mm discs

Zone 3 - Reconsolidation

Carrier can be equipped with packers suitable for a wide range of field conditions. The rubber suspension on the packer absorbs shocks and extends the working life of the frame and the packer.

Single SteelRunner

Double SteelRunner

CageRunner HeavyDuty

Single SoilRunner

Double SoilRunner

Following harrow

Tiller

Technical data

Technical data Carrier XT Trailed

  CRXT 425 CRXT 525 CRXT 625
Working width (m) 4.0 5.0 6.0
Packer width (m) 4.4 5.4 6.4
Transport width (m) 2.86 2.86 2.86
Transport height (m) 2.7 3.2 3.7
Weight with single SoilRunner (kg) 4550 5190 5620
Weight with double SoilRunner (kg) 4790 5480 5990
Weight with CageRunner HeavyDuty (kg) 4600 5230 5650
Weight with single SteelRunner (kg) 5060 5800 6340
Weight with double SteelRunner (kg) 5440 6310 6980
Number of discs 34 42 50
Disc spacing (cm) 12.5 12.5 12.5
Brakes P P P
Recommended working speed (km/h) 10-15 10-15 10-15
Wheel dimension (transport wheels) 400/60x15.5 400/60x15.5 400/60x15.5
Hydraulic requirements (DA) 3/4 3/4 3/4
Draught requirement (hp) 150-200 180-240 220-270
