8-12 m
>120 hp
76-102 cm

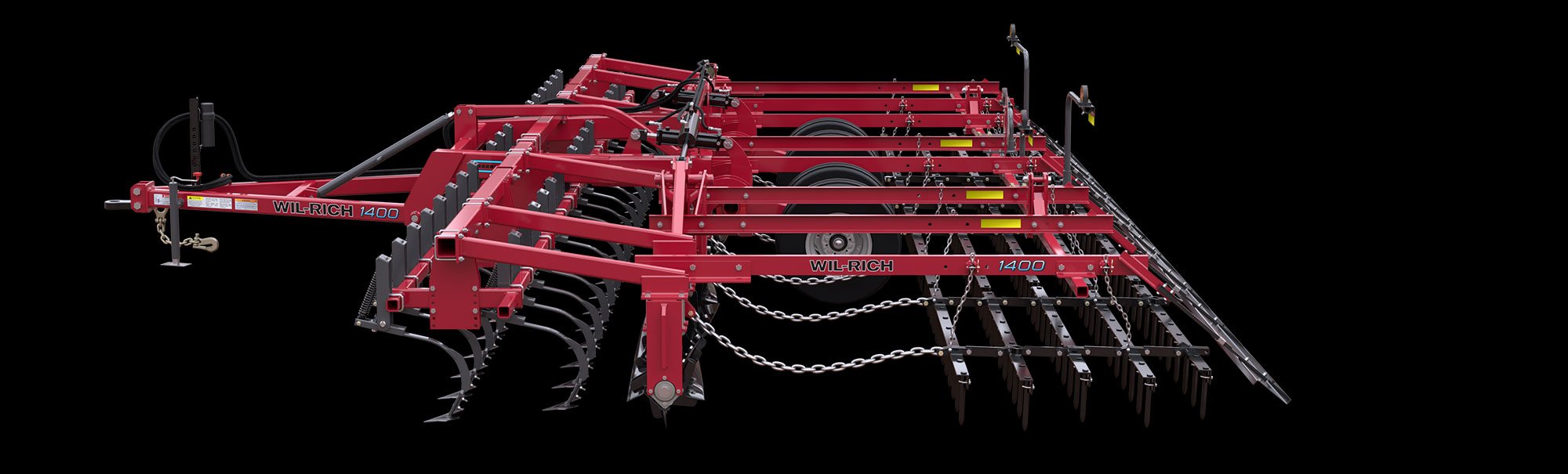

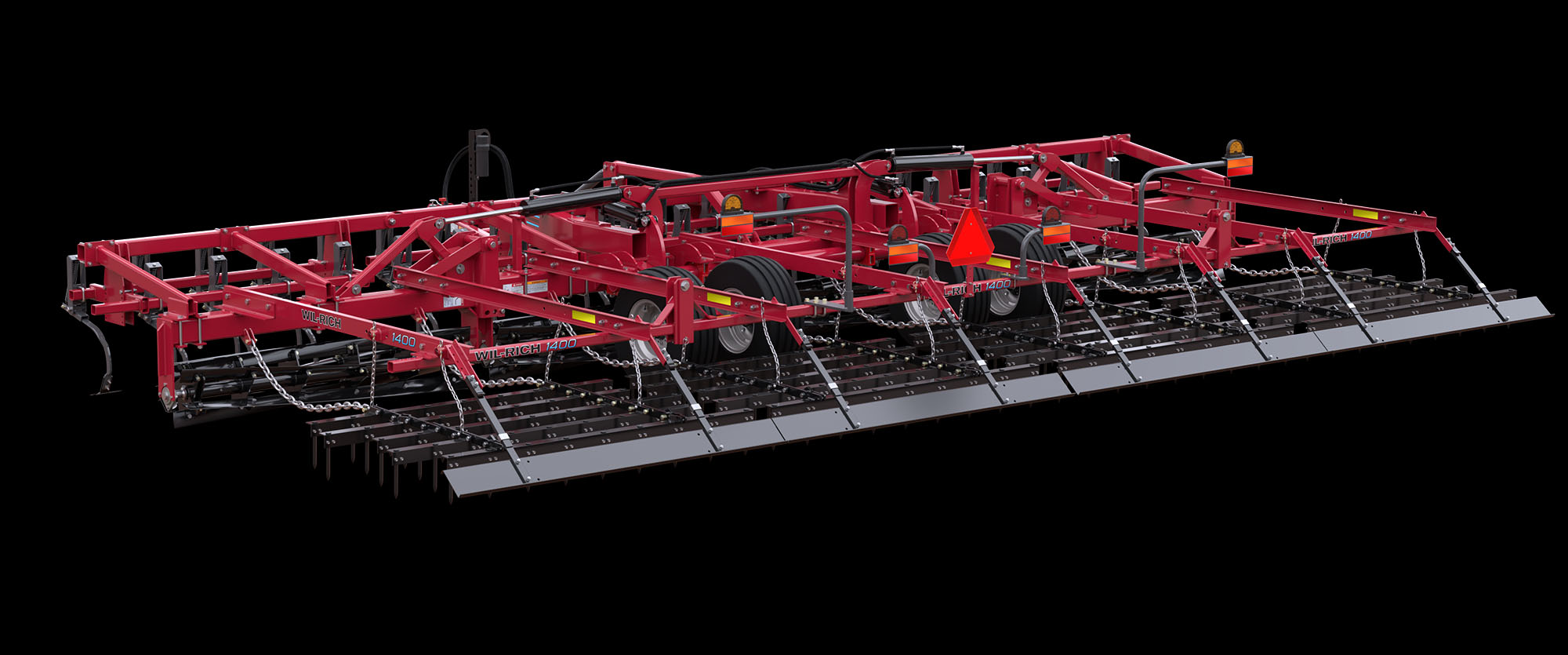

The Wil-Rich 1400 Series Seedbed Finisher is an essential tool for creating a perfect seedbed. This multi-functional machine penetrates, mixes, smooths, and firms the ground, preparing your fields for the even emergence of delicate crops. It is designed to work efficiently in various soil conditions, ensuring optimal seedbed preparation.
By crushing clods, the Wil-Rich 1400 creates finer soil tilth for better seed-to-soil contact when planting.
The Wil-Rich 1400 can be used to prepare the seedbed for ideal planting conditions.
Create an ideal, level field finish with the Wil-Rich 1400 to help ensure optimal planting conditions.
A well-prepared seedbed is essential for optimal crop emergence and yield. The Wil-Rich 1400 Series Seedbed Finisher enhances soil conditions by breaking up clods, mixing soil, and creating a smooth, level surface. This promotes healthier plants and maximises performance throughout the growing season.
The Wil-Rich 1400 crushes large soil clods, creating finer soil tilth for better seed-to-soil contact. This ensures even emergence and higher yields. Optional shanks, a cutting reel, and spike harrow break up crust, mix soil, and reduce clod size, promoting healthier plants. Levelling boards create an even soil profile for uniform seed placement and early crop vigour.
Swipe to read more ⮕
The Wil-Rich 1400 is equipped with optional tines, a cutting reel, and spike harrow to prepare the seedbed by breaking up crust, mixing the soil, and reducing the clod size through the top of the soil profile. This creates ideal conditions for planting all crops to help ensure excellent emergence and promote healthier plants.
The Wil-Rich 1400 is equipped with optional tines, a cutting reel, and spike harrow to prepare the seedbed by breaking up crust, mixing the soil, and reducing the clod size through the top of the soil profile. This creates ideal conditions for planting all crops to help ensure excellent emergence and promote healthier plants.
The Wil-Rich 1400 is equipped with optional tines, cutting reels, spike harrows, and levelling boards to create an even soil profile. The smooth, level surface provides an ideal environment for planting. It helps ensure seeds are placed in uniform conditions for even emergence and early crop vigour.
By preparing the soil correctly, a planter can operate immediately behind the seedbed finisher, preserving moisture and extending the planting window. The Wil-Rich 1400 Series Seedbed Finisher is built for both raised seedbeds and flat or rolling ground, featuring the heaviest cutter reel to penetrate the ground effectively.
Optional tines on the Wil-Rich 1400 Series penetrate the ground to break up the soil. These tines work well on flat ground, ensuring better soil preparation and improved crop emergence.
The cutter reel on the Wil-Rich 1400 Series pulverises the ground to mix soil and incorporate chemicals accurately at the required depth. This balanced and heavy cutter has self-aligning bearings, ensuring efficient soil pulverisation.
The spike harrow on the Wil-Rich 1400 Seriesdrags the soil and breaks up clods to smooth the ground. This feature helps create an ideal seedbed for planting.
The rear levelling board firms the ground, creating an ideal seedbed. This ensures that the soil is well-prepared for planting, leading to better crop emergence.

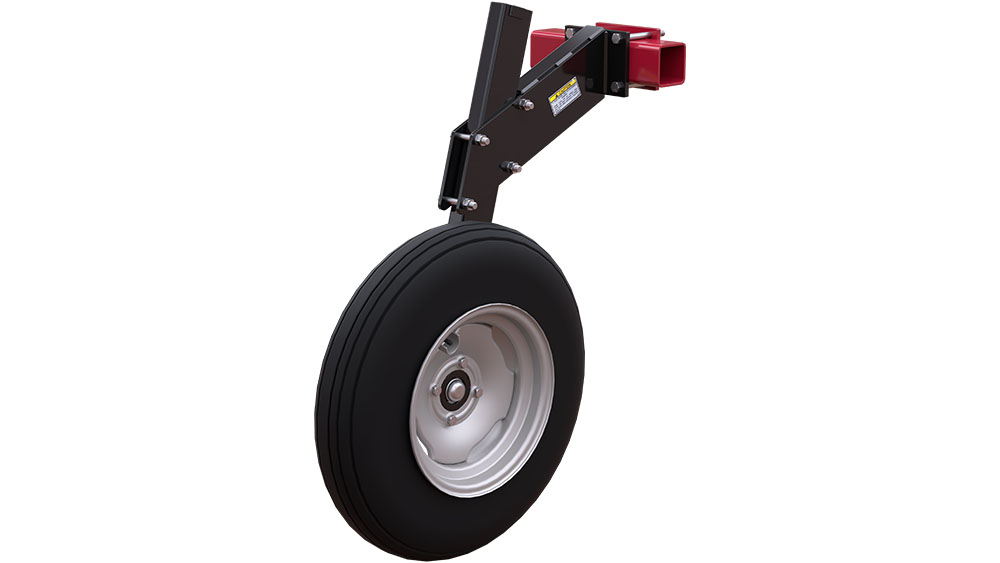

Four dual walking wheels with 11L x 15 12-ply tyres on 15 x 8 6-bolt rims ensure stability and even weight distribution, making the implement effective in rolling ground. Additionally, the gauge wheels control the depth for consistent soil penetration.

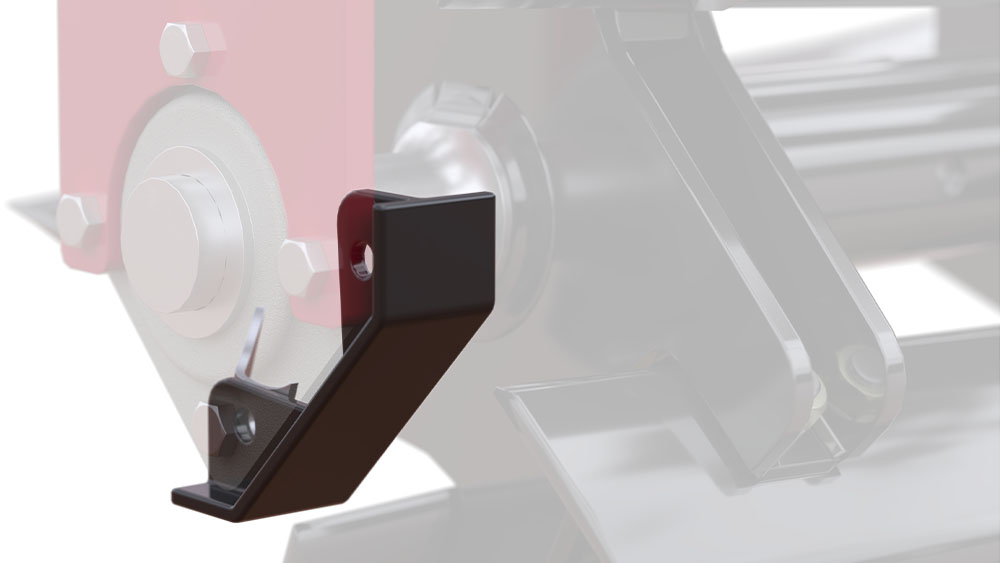

Bearing guards on the Wil-Rich 1400 Series protect the bearings from debris, ensuring the longevity and reliability of the machine.

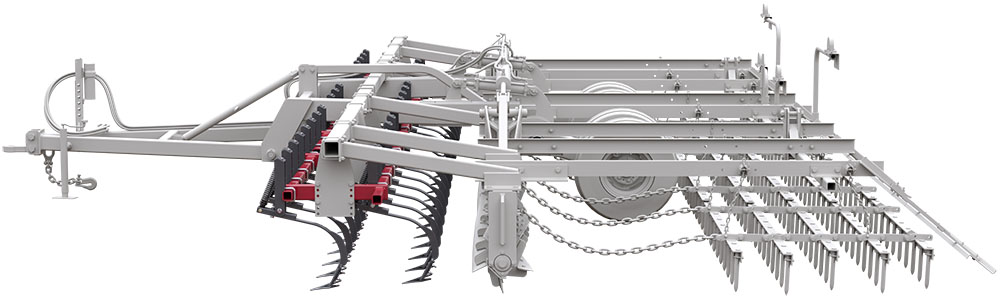

Optional two ranks of tines are engineered to mix in residue and loosen soil.

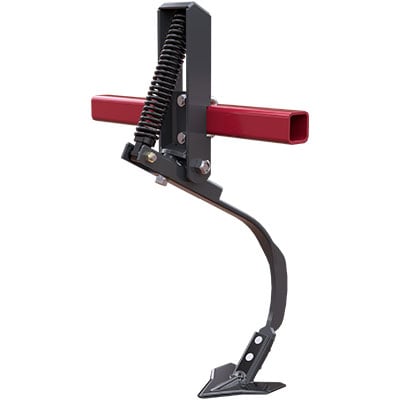

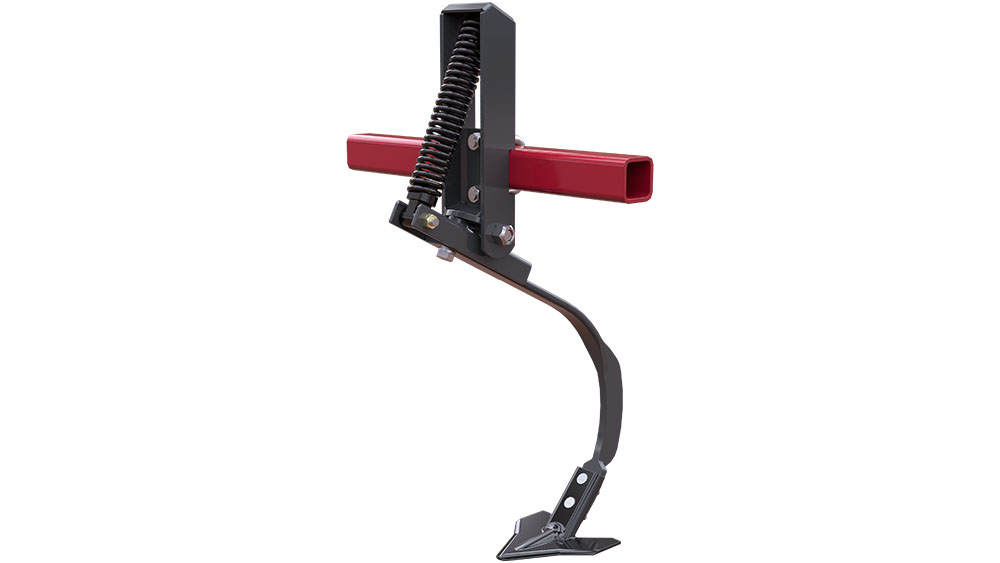

Tine
Optional tines on the Wil-Rich 1400 Seedbed Finisher penetrate the ground to break up the soil. The tines work well on flat ground.

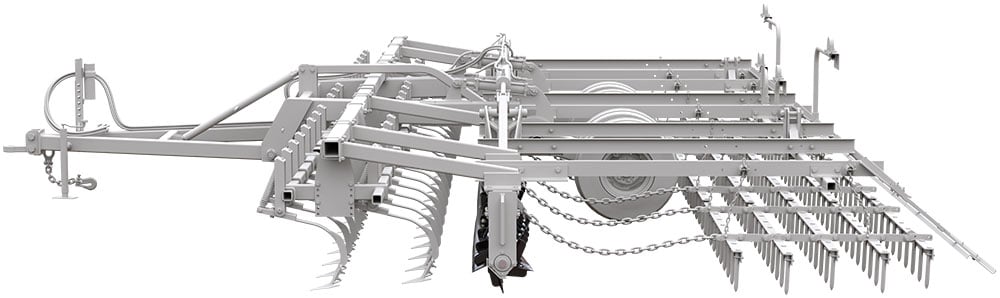

The cutting reel pulverises soil and incorporates chemicals at the desired depth for optimal soil preparation.

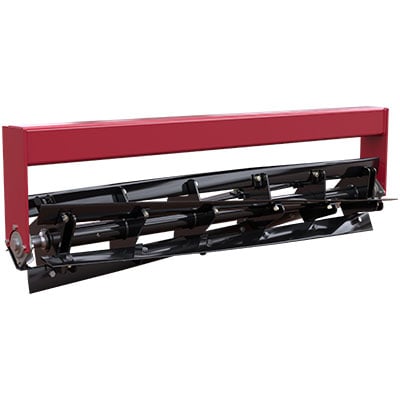

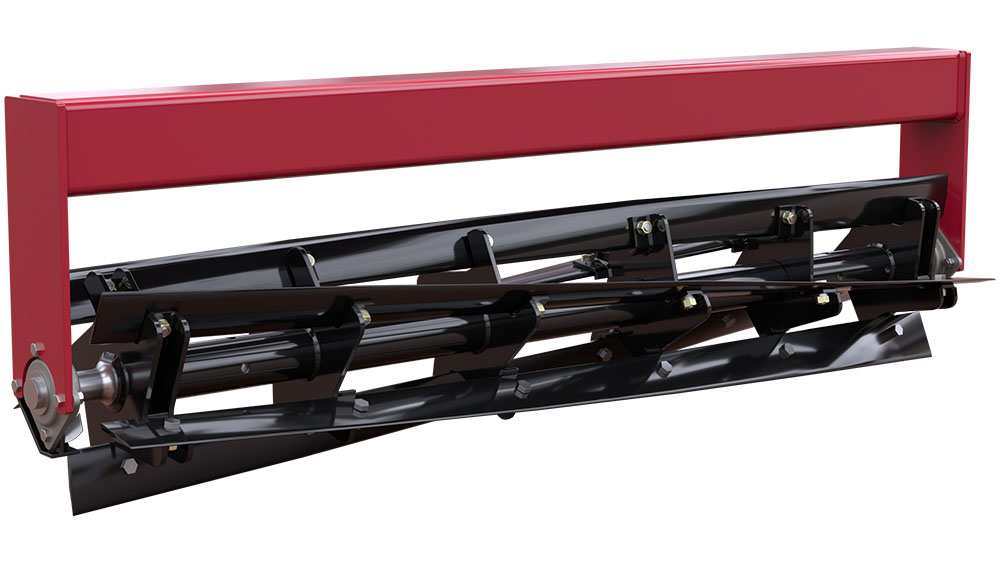

Cutter reel
The cutter reel on the Wil-Rich 1400 Series pulverises the ground to mix soil and incorporate chemicals accurately at the required depth. This balanced and heavy cutter has self-aligning bearings.

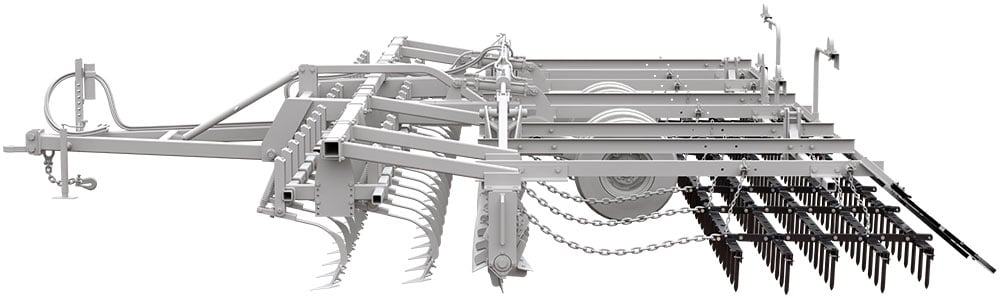

Finishing attachments create a level soil profile, setting the stage for an ideal seedbed in the spring. They also help distribute residue and break up clods.

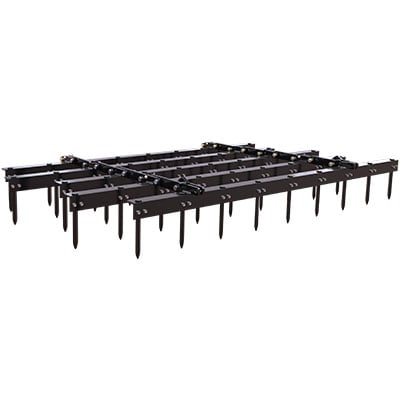

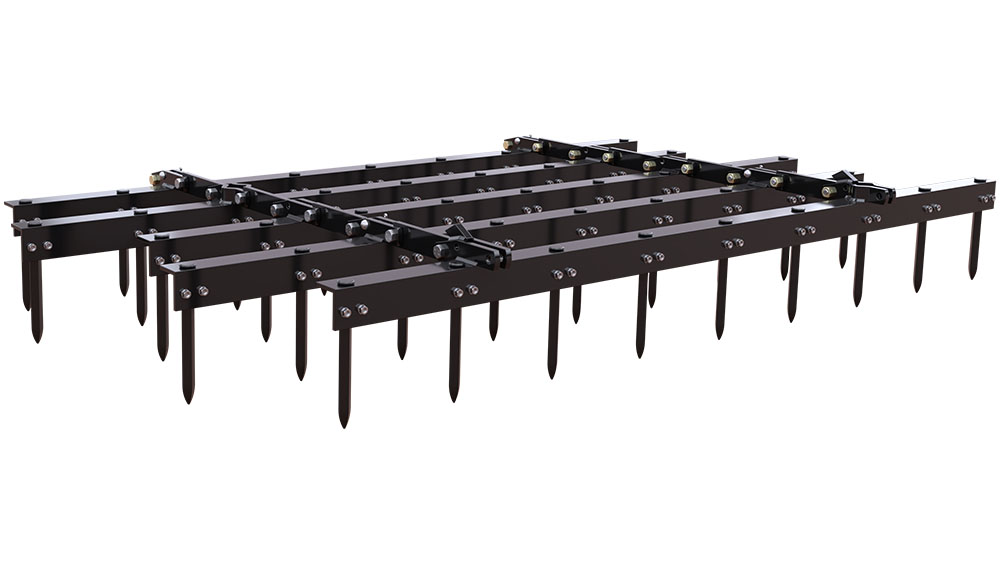

Spike harrow
The spike harrow on the Wil-Rich 1400 Series drags the soil and breaks up clods to smooth the ground.

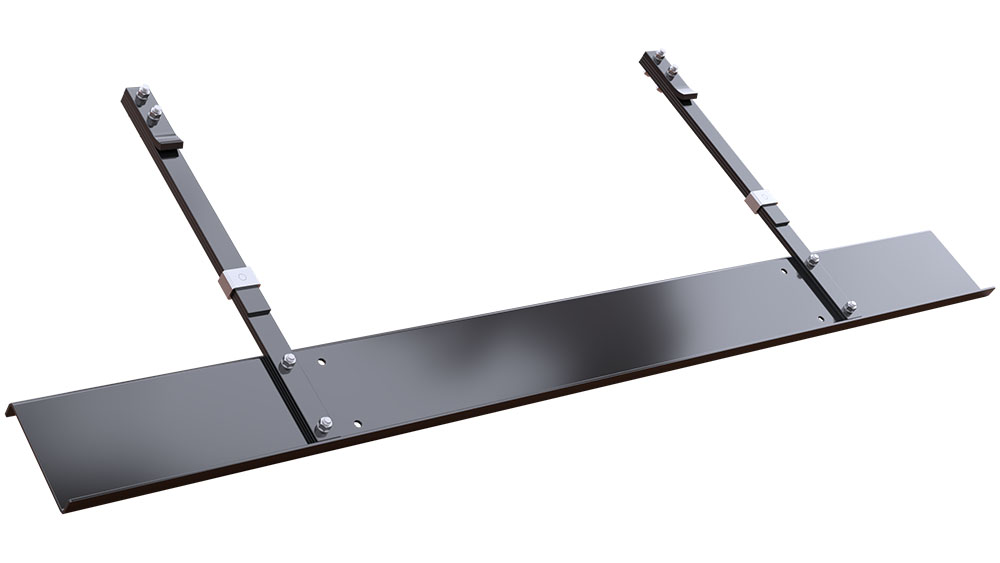

Rear levelling board
The rear levelling board on the Wil-Rich 1400 Series firms the ground for an ideal seedbed.
| SBF-1400-8R36-40 | SBF-1400-12R30 | SBF-1400-12R40 | |
| Number of rows | 8 | 12 | 12 |
| Row spacing (cm) | 91.3/101.6 | 76.2 | 101.6 |
| Working width (m) | 7.8 | 9 | 12 |
| Cutter reel width (m) | 1.8 | 2 | 2.75 |
| Transport width (m) | 5 | 6 | 7.6 |
| Transport height (m) | 3 | 3.5 | 4.3 |
| Weight (kg) | 6,140 | 6,025 | 7,362 |
| Draught requirement (hp) | 120 | 160 | 200 |
| SBF-1403-8R36-40 | SBF-1403-12R40 | ||
| Number of rows | 8 | 12 | |
| Row spacing (cm) | 91.3/101.6 | 101.6 | |
| Working width (m) | 7.8 | 12 | |
| Cutter reel width (m) | 2 | 2.75 | |
| Transport width (m) | 5.4 | 6.3 | |
| Transport height (m) | 3 | 2.4 | |
| Weight (kg) | 2,356 | 4,144 | |
| Draught requirement (hp) | 120 | 190 |
