3-9.1 m
0-41 cm
>140 hp
76 cm
The Wil-Rich 357 Inline Ripper is ideal for heavy residue conditions, featuring a strong, rugged design that penetrates even the hardest ground. It is available with rigid or spring reset options, and multiple tine options, including parabolic, minimal disturbance, and low disturbance tines. Break up compaction layers as deep as 41 cm (16") and promote better water infiltration and root growth.
Soil compaction can significantly decrease yields. The Wil-Rich 357 offers the strength needed to break up deep compaction layers for healthier, higher-yielding crops.
Tight, compacted soils have less ability to hold water and air. The Wil-Rich 357 can loosen the soil to promote a healthier profile with greater pore space.
Compaction restricts the ability of water to soak deep into the soil profile. Using the Wil-Rich 357 not only improves water infiltration but also promotes deeper root growth.
Give your crop the best chance to succeed while reducing risks at the same time with the Wil-Rich 357.
The Wil-Rich 357 breaks up deep compaction layers, improving soil tilth and water infiltration. This leads to healthier roots, better access to moisture and nutrients, and ultimately higher crop yields.
Swipe to read more ⮕
Compaction causes plant stress, increases the risk of root diseases, and hinders microorganism activity in the soil, among other negative effects. The heavy-duty Wil-Rich 357 can penetrate tough soils and break up compaction layers as deep as 41 cm (16"). Eliminating compaction promotes healthier plant roots which, in turn, results in higher-yielding crops.
The tight structure of compacted soils reduces the amount of space available for water and air. This is especially true in heavy soils. The Wil-Rich 357 has the strength to penetrate tough conditions. It breaks up compaction while mixing soil to provide an improved level of tilth. The loosened soil structure can hold more water and air, while providing a better environment for growing roots.
Compaction layers restrict the movement of water and roots deeper into the soil. The Wil-Rich 357 can help shatter compaction as much as 41 cm (16") deep. This improves water infiltration into the subsoil and enhances drainage to reduce the risk of waterlogging. It also helps roots to explore the soil more freely for better access to moisture and nutrients.

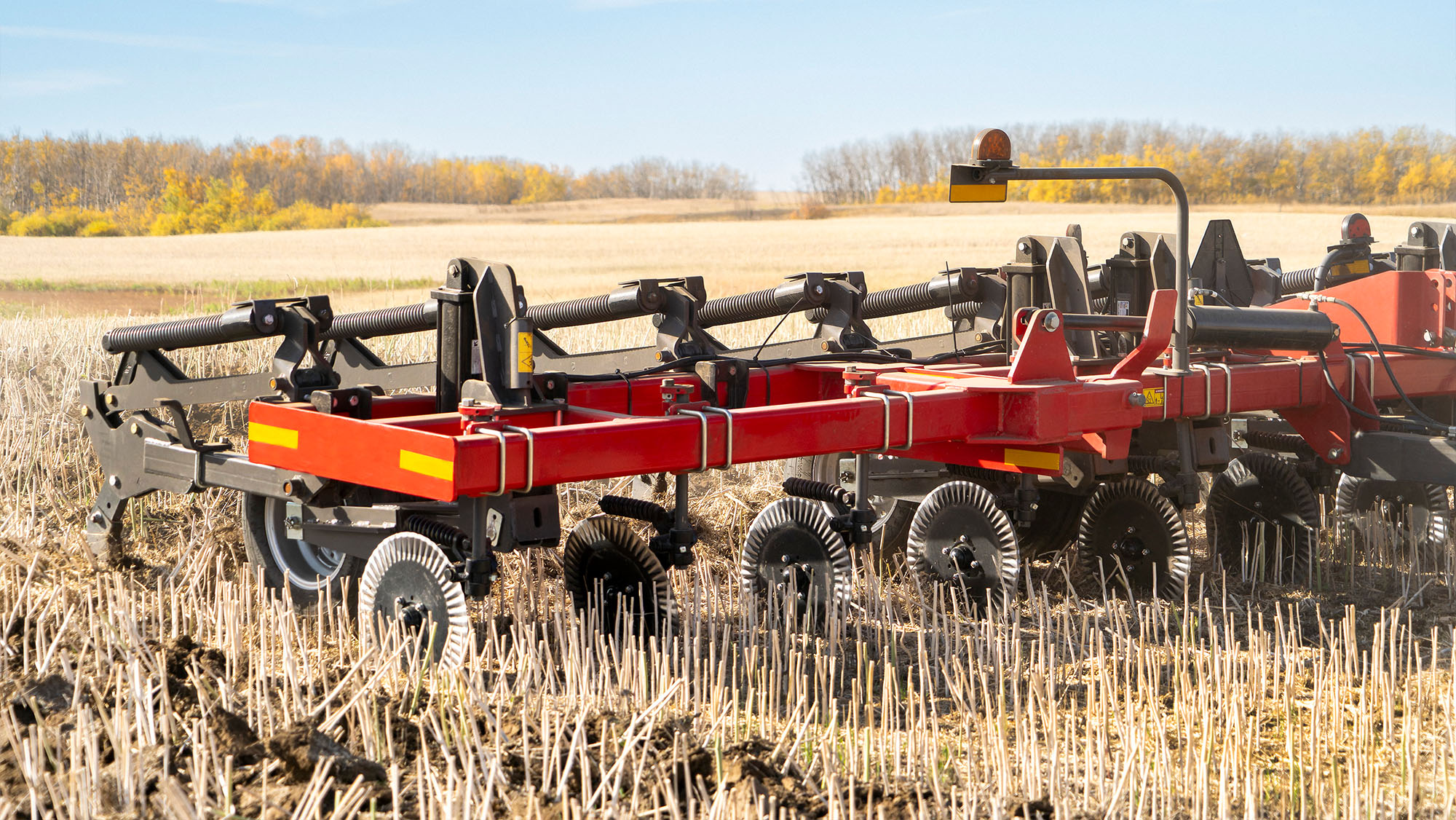

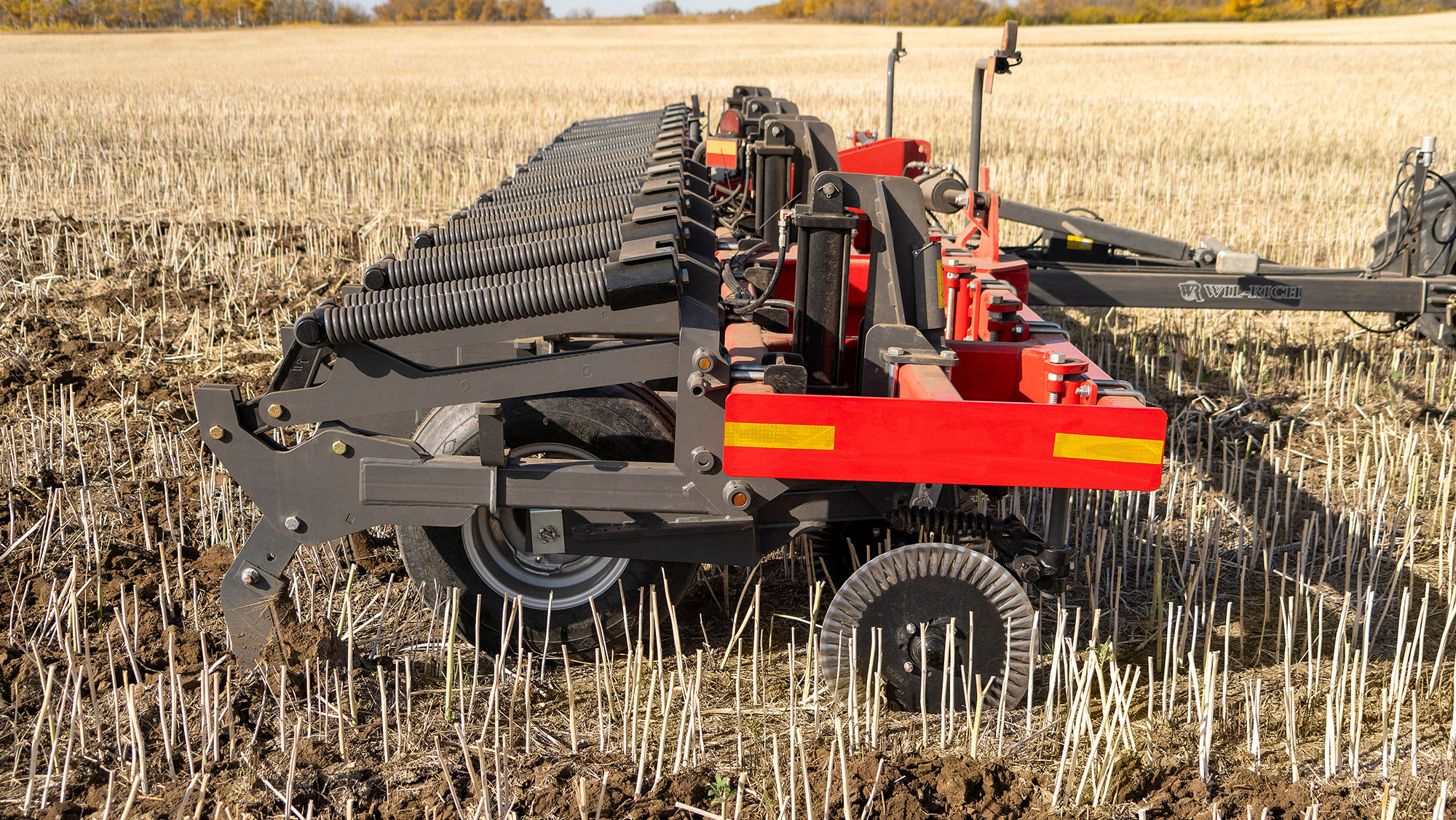

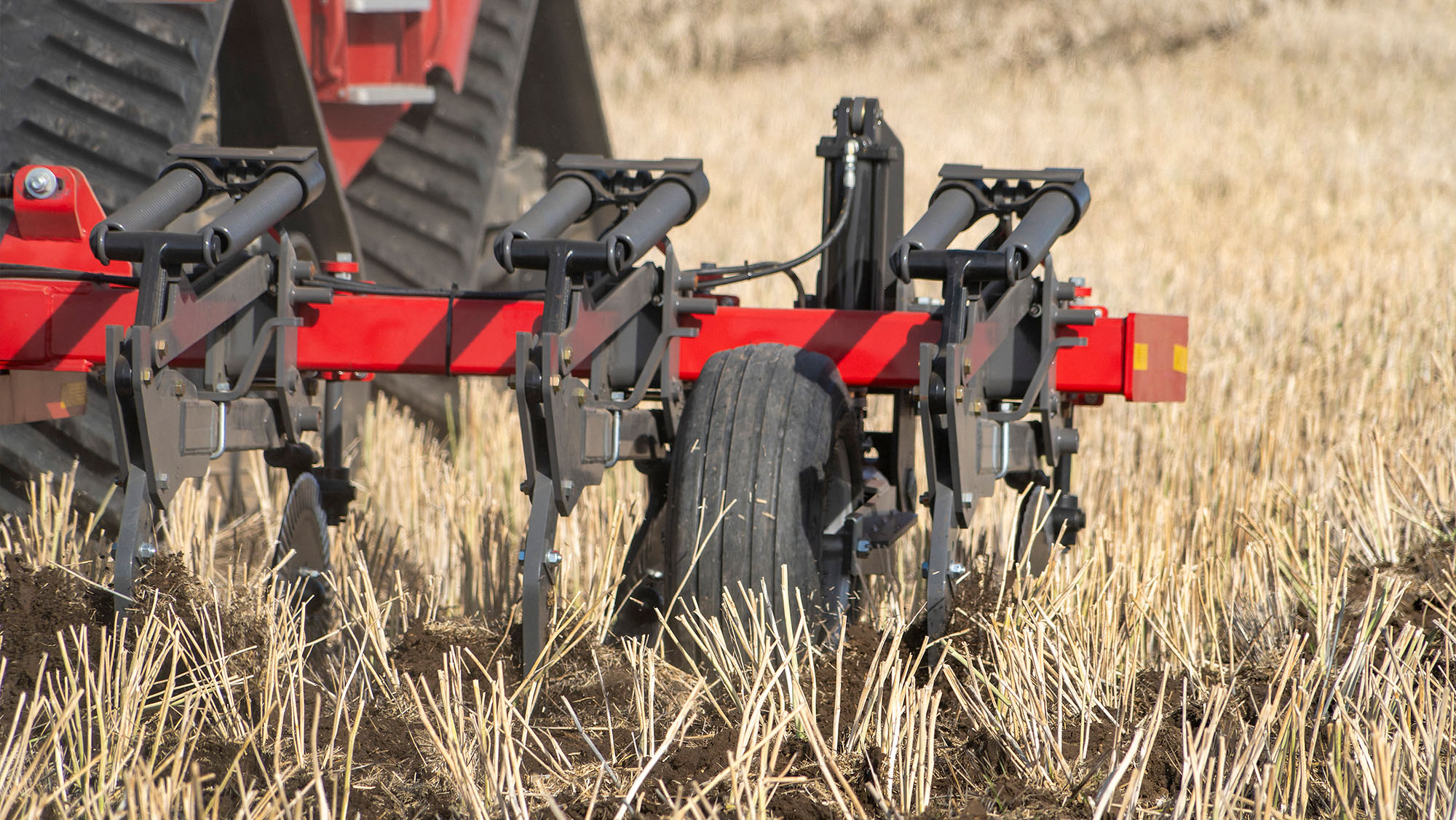

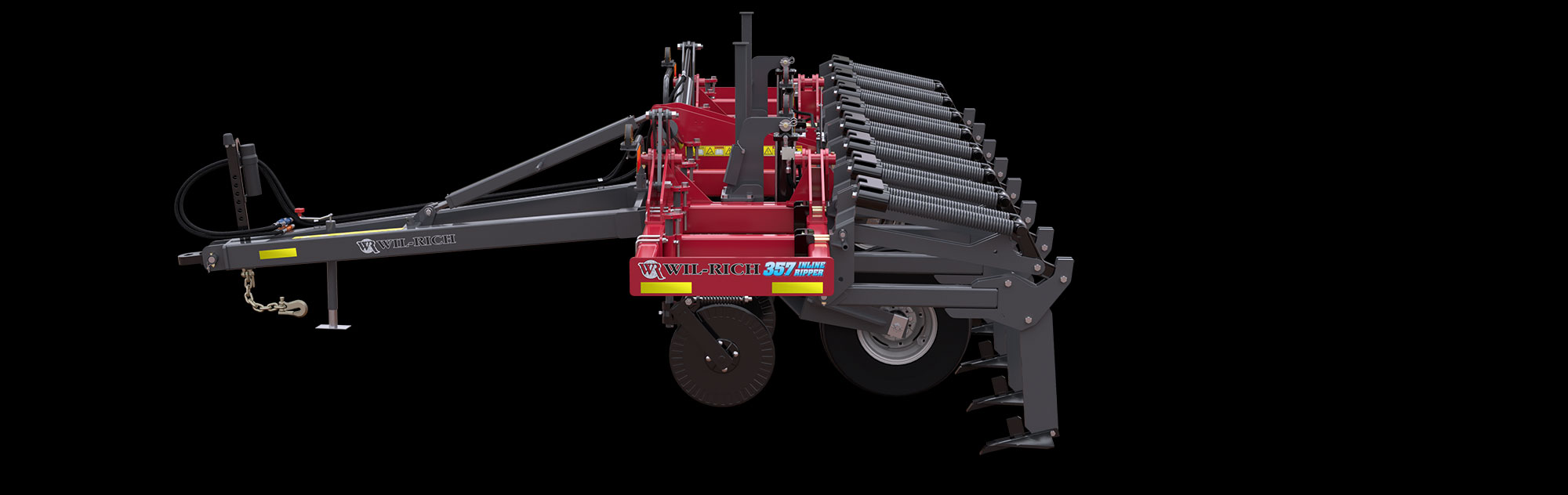

The Wil-Rich 357 Inline Ripper is a versatile and robust machine designed for deep subsoiling in heavy residue conditions. It features multiple tine options and subsoiling points to suit various soil types, promoting better root growth and water infiltration. With its durable box frame, reliable spring reset trip assembly, and precise adjustable gauge wheels, it ensures long-lasting performance and optimal soil management, leading to improved crop yields. The machine offers versatile hitch options, including a three-point rigid mount and a pull type hitch with hydraulic lift wheels, accommodating different tractor setups for stable performance and easy manoeuvrability. Optional coulters enhance performance in heavy residue conditions, making it an essential tool for modern farmers.

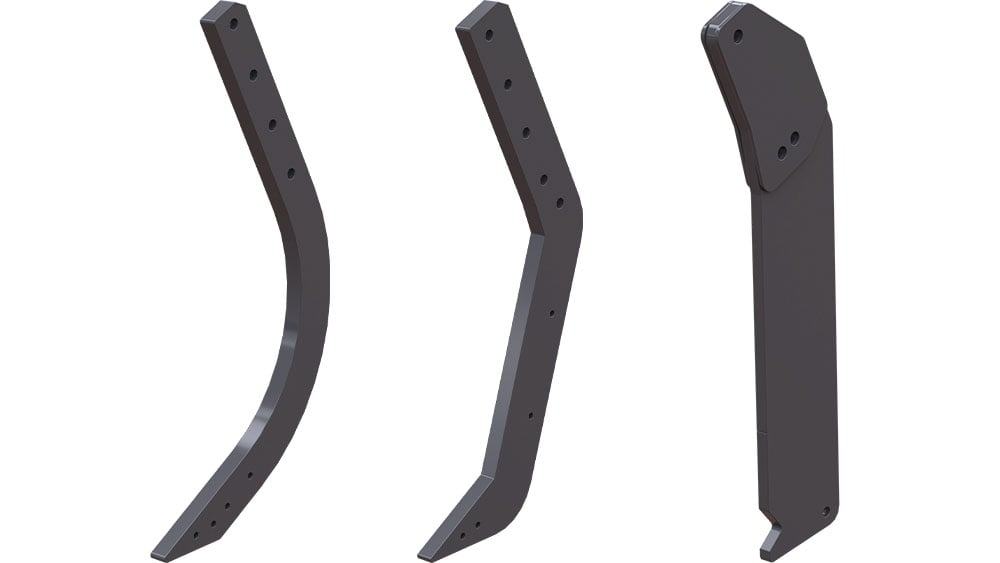

The Wil-Rich 357 Inline Ripper is equipped with versatile tine and subsoiling point options, designed to meet the diverse needs of modern agriculture. These components play a crucial role in ensuring effective soil penetration, loosening compacted layers, and promoting better root growth and water infiltration. By selecting the appropriate tines and points, farmers can optimise their soil management practices and achieve improved crop yields.
Parabolic tines are the most aggressive option. They are designed for deep penetration, soil mixing, and loosening to promote better water infiltration and root growth.
Low disturbance tines are a middle-of-the-road option that provides a balance of soil penetration and surface preservation. These are a suitable choice for many field conditions.
Minimal disturbance tines break up deep compaction layers while maintaining soil structure and minimising surface disruption. They produce a smoother field finish than other tines, as they provide less soil mixing.

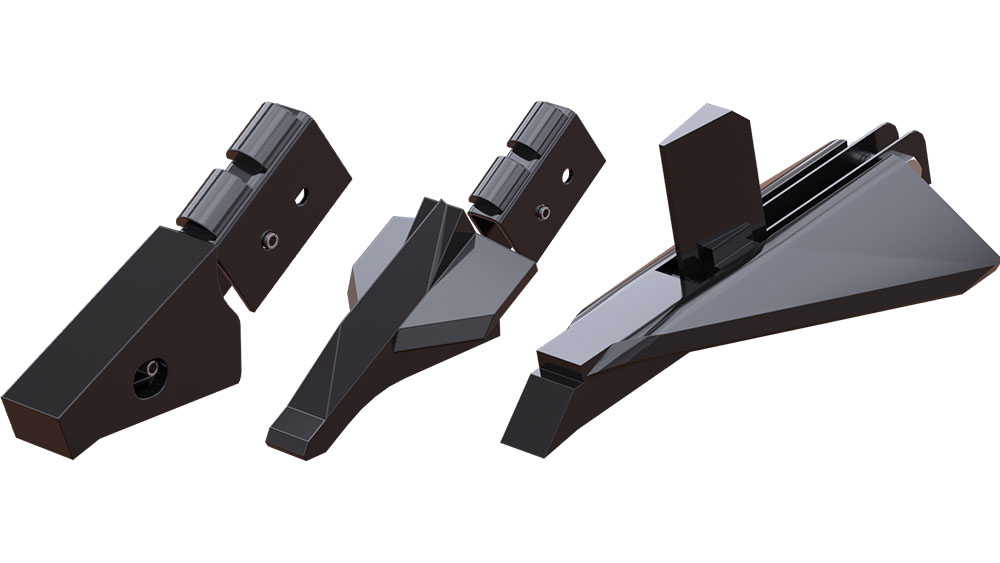

Multiple ripper points are available, ranging from 7.6 to 20.3 cm (3 to 8") to match different soil types and tillage needs.
Narrow points provide deeper penetration with minimal soil disturbance, making them a good choice for hard or compacted soils.
Wide points help break up larger clods and improve overall soil structure.
The Wil-Rich 357 offers versatile hitch options to accommodate different tractor setups.

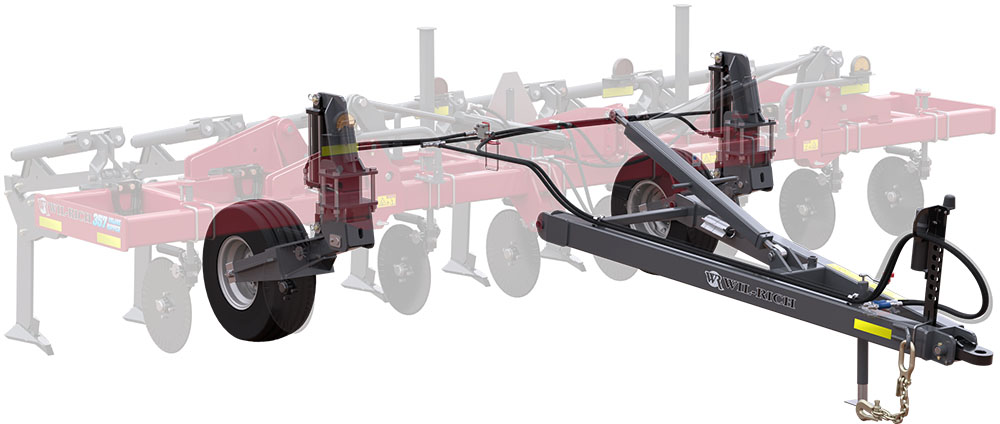

A pull-type hitch option includes hydraulic lift wheels for easy transport and manoeuvrability. A turnbuckle on the hitch is used to adjust the levelness of the frame.
A three-point rigid mount is also available. It provides a stable and secure connection to the tractor to help ensure consistent performance in the field.
You need to accept cookies in order to view this feature. Click here to change your consent.
Discover the strengths and features of Wil-Rich 357 Inline Ripper. Watch the video now to learn more about what makes Wil-Rich 357 unique.

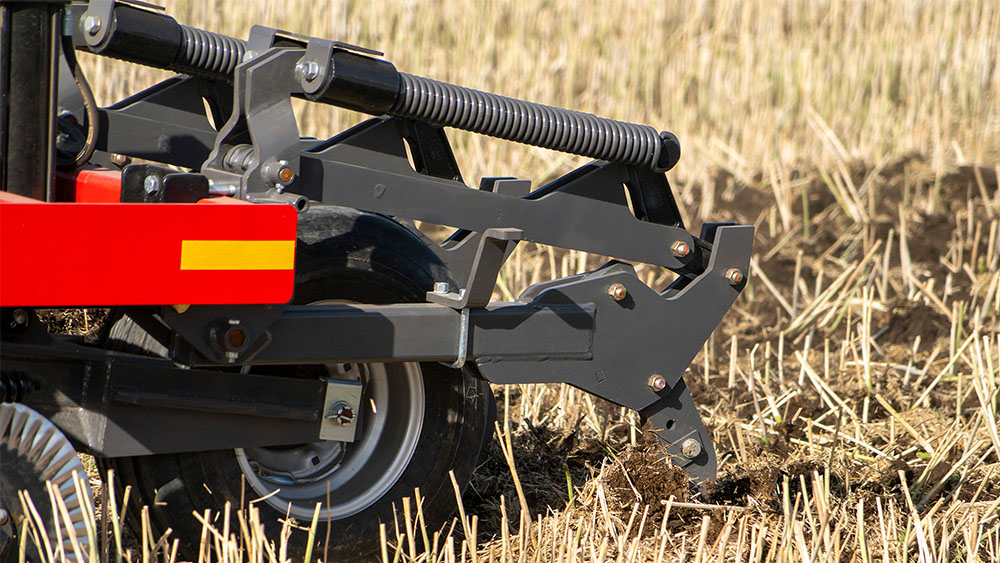

The spring reset trip assemblies help protect the machine from rock damage to minimise downtime and repair costs. The 1,928 kg (4,250 lbs) of trip pressure ensures proper soil penetration and helps maintain consistent tine depth, even in tough conditions.

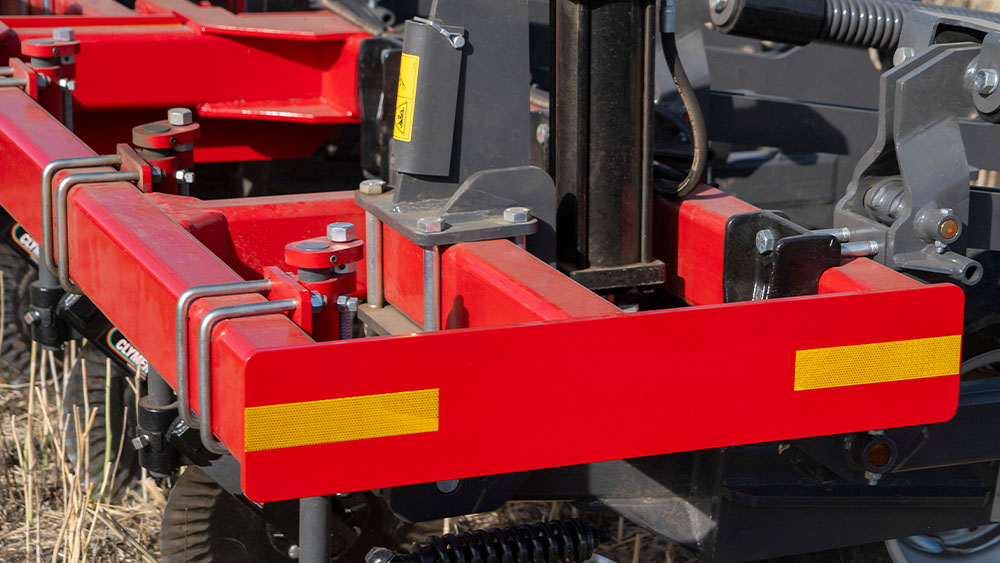

The box frame design of the Wil-Rich 357 offers excellent durability for long-lasting performance and reliability, even in the most demanding field conditions. The tubular frame is 10.1 x 15.2 x 1 cm (4 x 6 x 0.375"), providing industry-leading strength.

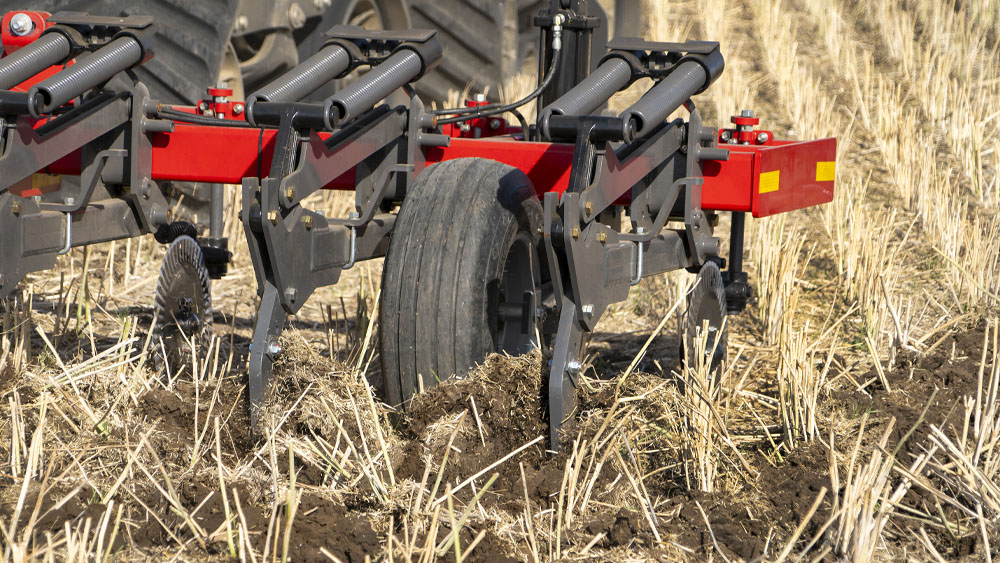

The adjustable gauge wheels on the Wil-Rich 357 ensure uniform working depth across various soil types and conditions. The eight settings allow for precise depth control, ensuring consistent soil preparation and optimal seedbed conditions.

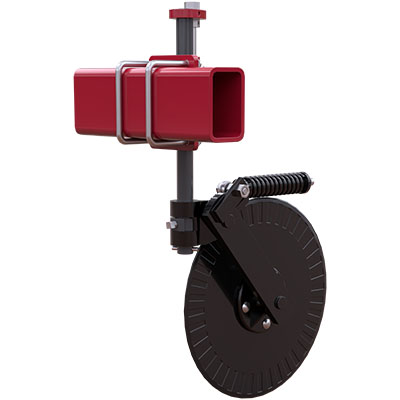

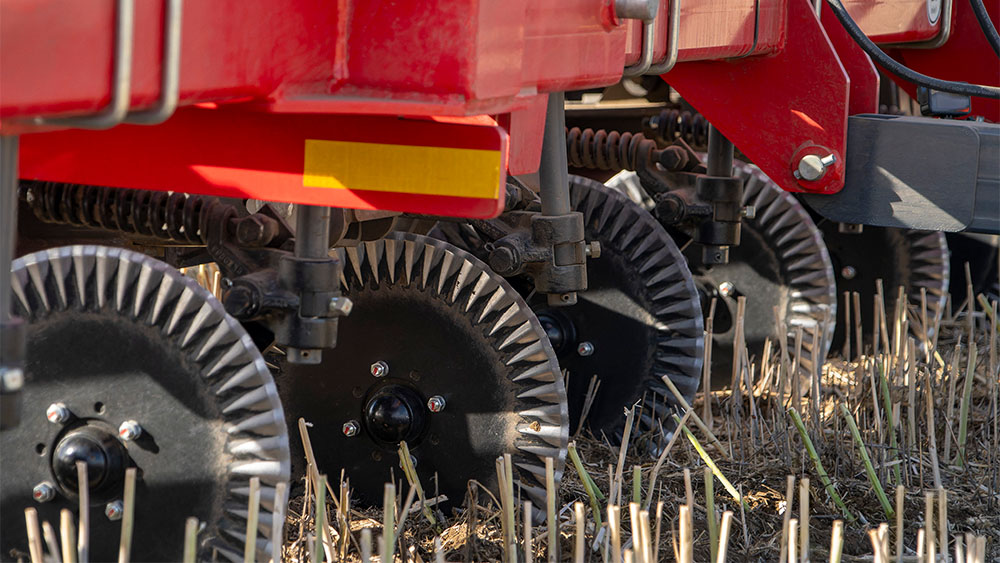

Optional coulters can be added to the Wil-Rich 357 to enhance its performance in heavy residue conditions. The 20 in (51 cm) spring-loaded coulters slice through residue, improving soil penetration and reducing clogging, which enhances overall efficiency and effectiveness.
Optional serrated coulters cut through tough residue ahead of the tines to help prevent plugging.

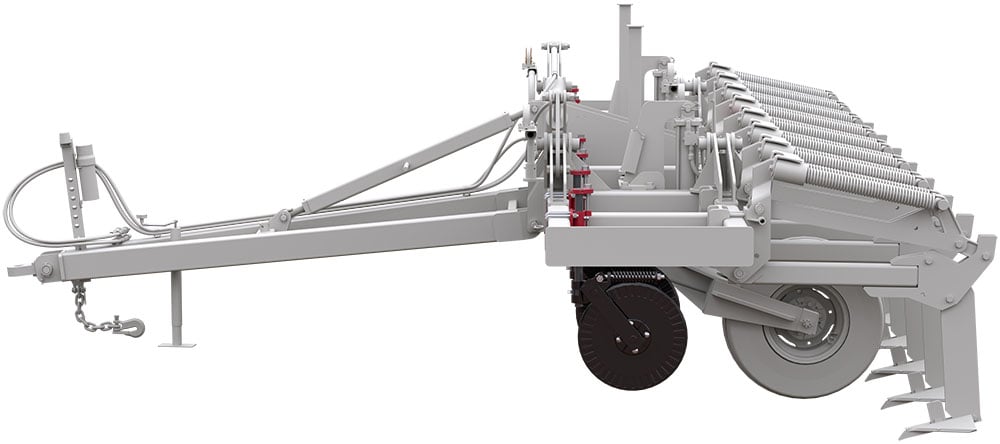

Spring-loaded coulters

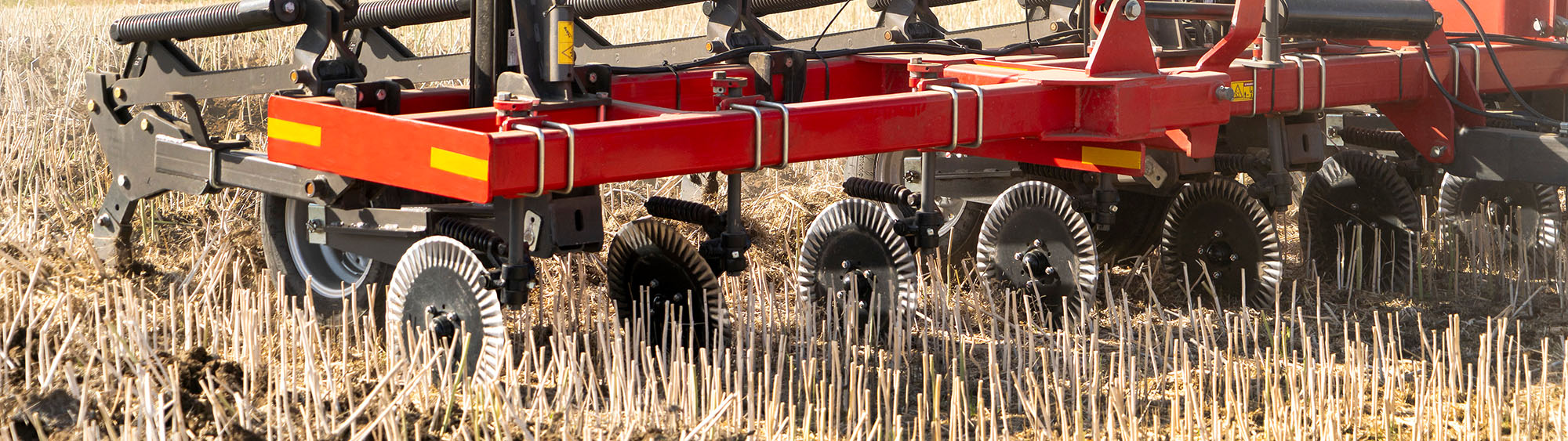

Optional coulters for heavy residue conditions. The serrated coulters cut residue to reduce plugging at the tines. They also enhance the tines’ ability to penetrate the soil. The 51 cm (20") coulters are spring-loaded for added rock protection.

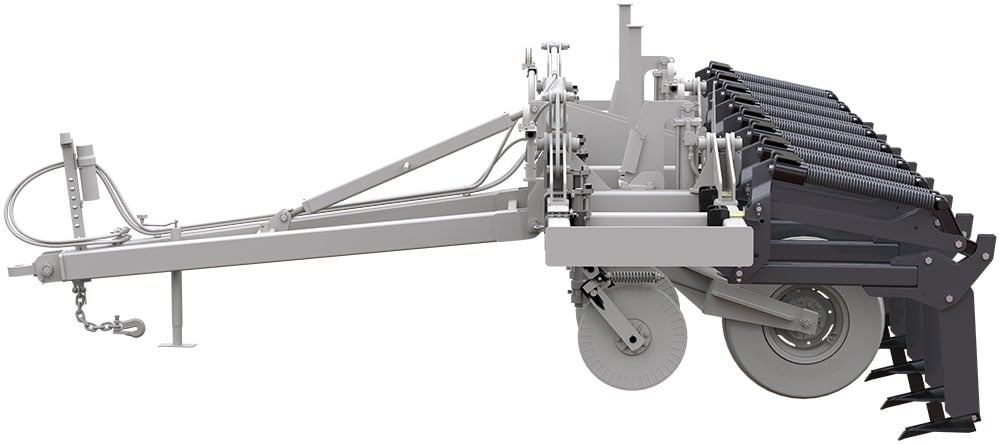

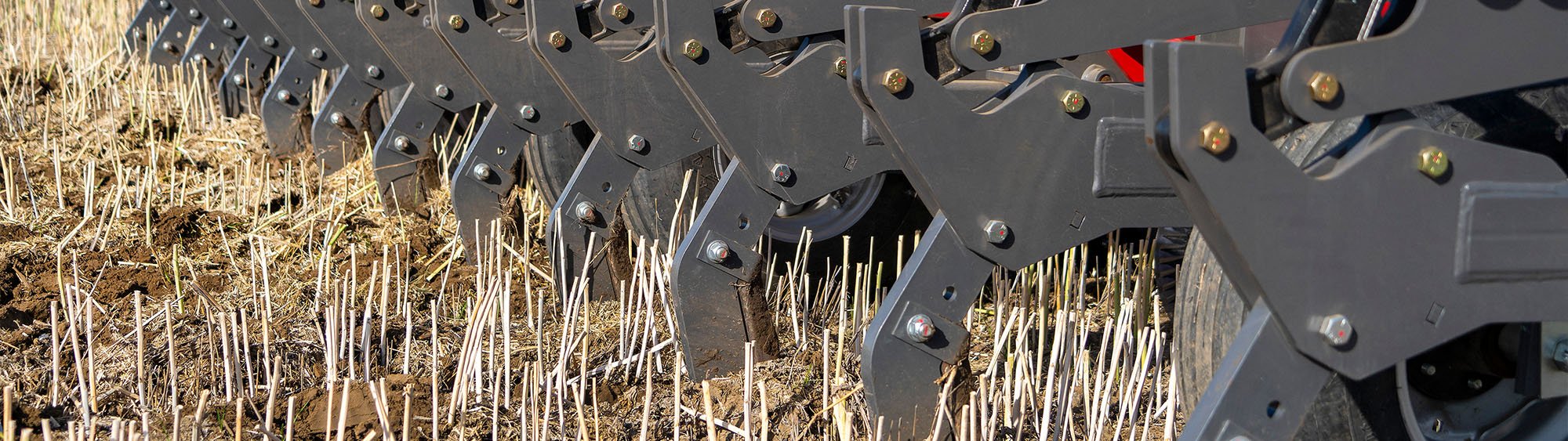

Heavy-duty tines break up deep compaction layers to improve water infiltration and root growth. Multiple tine and point options are available to achieve the desired results in a variety of soil conditions.

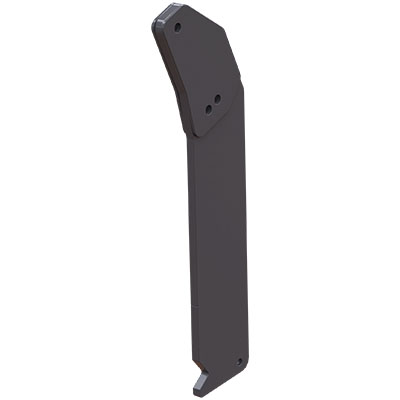

Minimal disturbance tine
These tines are 0.75 inches (1.9 cm) wide and ideal for maintaining soil structure while still breaking up compacted layers. These tines minimise surface disruption. The working depth for the minimal disturbance tine is 41 cm maximum.

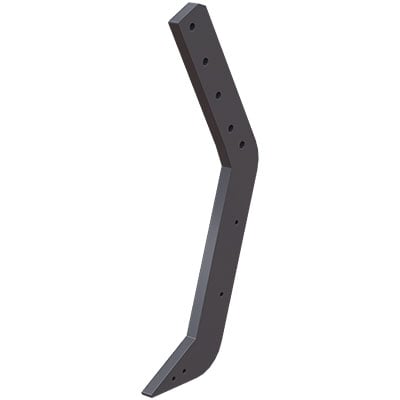

Low disturbance tine
These tines are 1.25 inches (3.2 cm) wide and provide a balance between soil penetration and surface preservation, making them suitable for a variety of field conditions. The working depth for the low disturbance tine is 41 cm maximum.

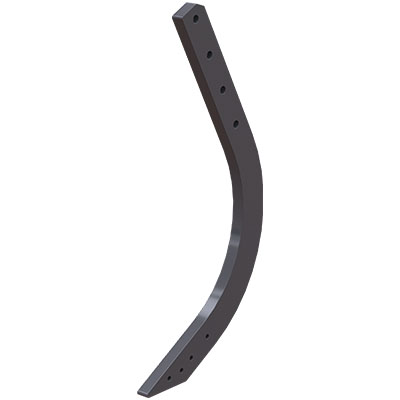

Parabolic tine
These tines are 1.25 inches (3.2 cm) wide and designed for deep penetration and effective soil loosening, promoting better root growth and water infiltration. The working depth for the parabolic tine is 41 cm maximum.

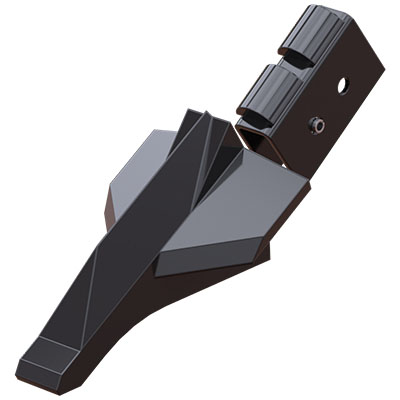

3" straight point with guard
A narrow subsoiling point designed for deeper penetration with minimal soil disturbance. Ideal for hard or compacted soils.

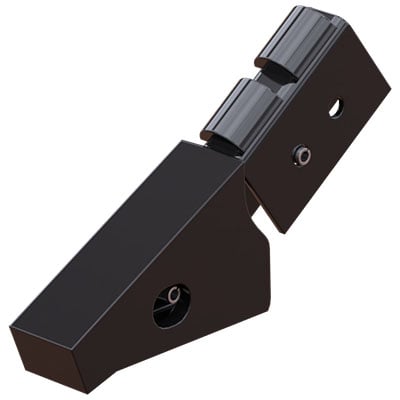

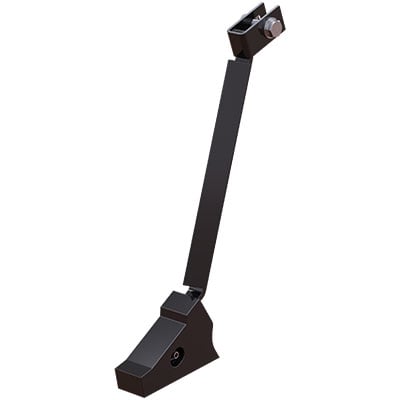

7" wing point with guard
A standard subsoiling point effective for general soil loosening and preparation.

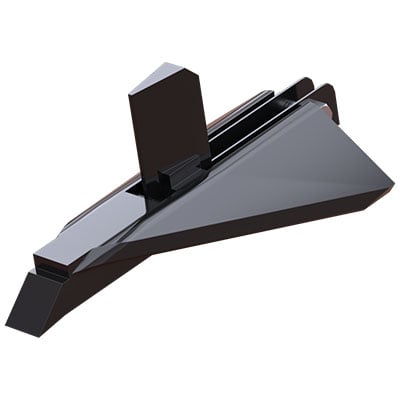

8" wing point
A wide subsoiling points suitable for breaking up larger soil clods and improving overall soil structure.
| 3-5 3-Point 30 | 5 3-Point 30 | 5-7 3-Point 30 | 4 3-Point 30 | |
| Rigid/Folding | Mounted rigid | Mounted rigid | Mounted rigid | Mounted rigid |
| Tine spacing (cm) | 76 | 76 | 76 | 76 |
| Working width (m) | 3.8 | 3.8 | 5.3 | 3 |
| Tines needed | 5 | 5 | 7 | 4 |
| Transport width (m) | 3.3 | 3.3 | 4.9 | 3.3 |
| Transport height (m) | - | - | - | - |
| Weight (kg) | 554.2 | 539.8 | 850.5 | 539.8 |
| Draught requirement (hp) | 175-250 | 175-250 | 245-350 | 140-200 |
| 4-6 3-Point 30 | 8 3-Point 30 | 8 3-Point 30 | 12 Pull 30 | |
| Rigid/Folding | Mounted rigid | Mounted rigid | Folding | Fold over |
| Tine spacing (cm) | 76 | 76 | 76 | 76 |
| Working width (m) | 4.6 | 6.1 | 6.1 | 9.1 |
| Tines needed | 6 | 8 | 8 | 12 |
| Transport width (m) | 4.6 | 6.1 | 6.1 | 9.1 |
| Transport height (m) | - | - | 3.4 | 4.6 |
| Weight (kg) | 693.5 | 834.6 | 1182.5 | 3133.9 |
| Draught requirement (hp) | 210-300 | 280-400 | 280-400 | 420-600 |
*Approx weight: base weight (less tines)
