3.8-7.9 m
0-36 cm
>300 hp
60-76 cm

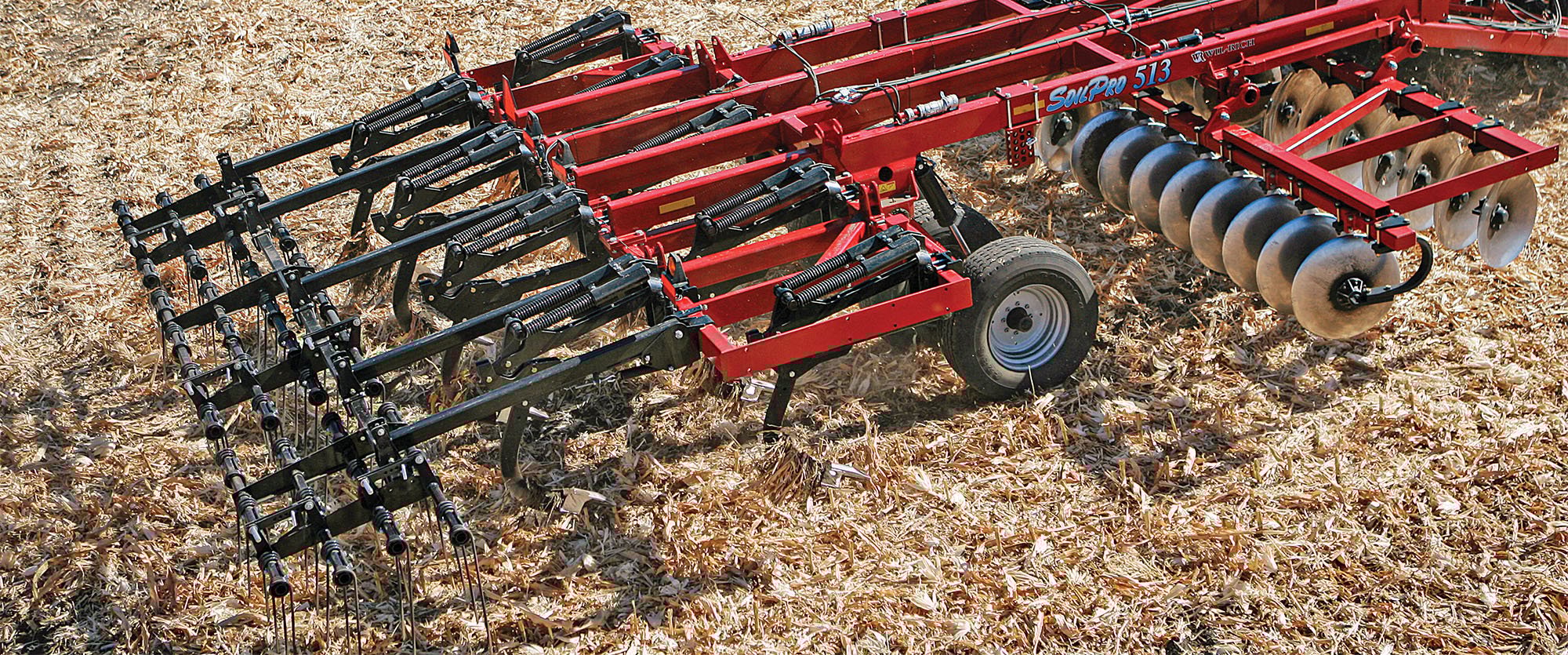

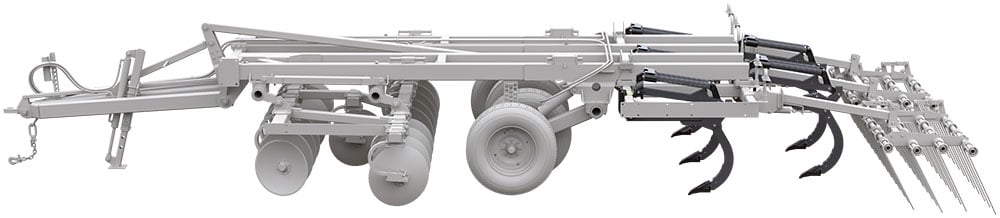

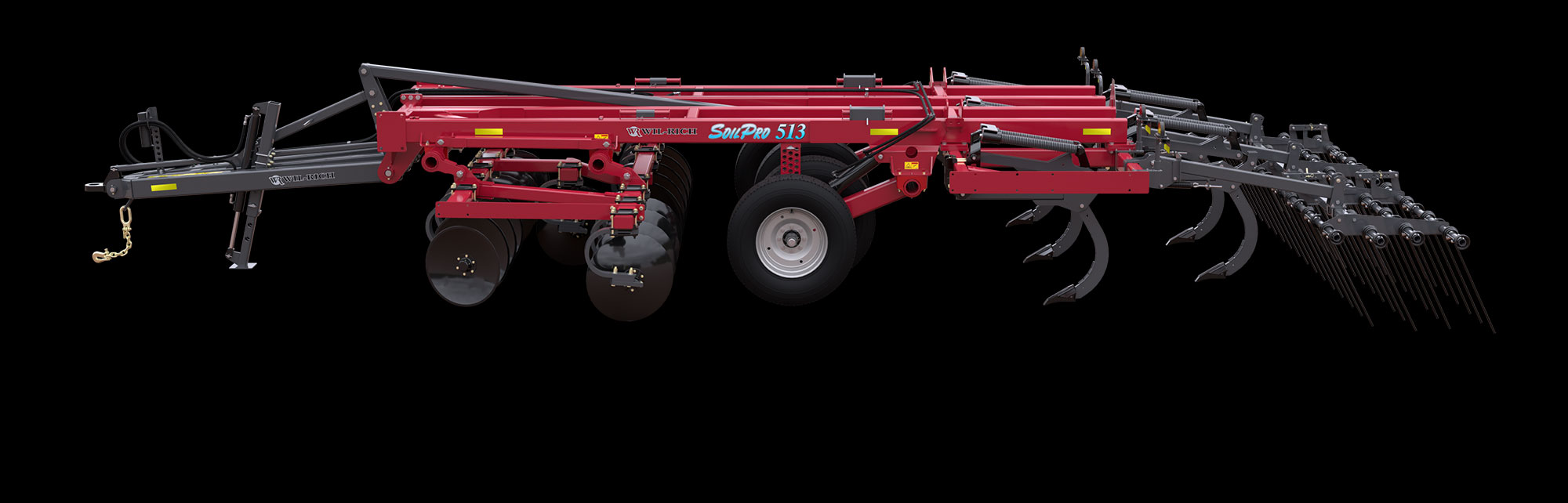

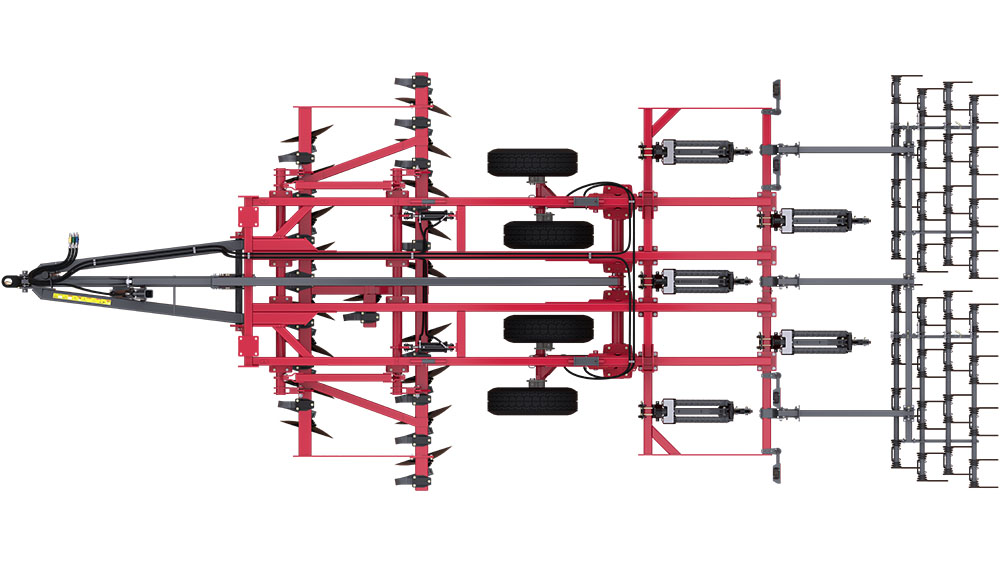

The Wil-Rich SoilPro 513 Disc Ripper is engineered to perform in diverse soil conditions, ensuring effective primary tillage. This machine leaves a smooth, uniform surface, ideal for seedbed preparation, benefiting farmers by enhancing crop establishment.
The two rows of parabolic ripper tines on the Wil-Rich SoilPro 513 shatter compaction up to 36 cm (14"), promoting healthier plants.
The concave discs on the Wil-Rich SoilPro 513 cut and mix residue with soil, promoting fast decomposition.
The Wil-Rich SoilPro 513 breaks up compacted layers, enhancing water infiltration into the soil profile.

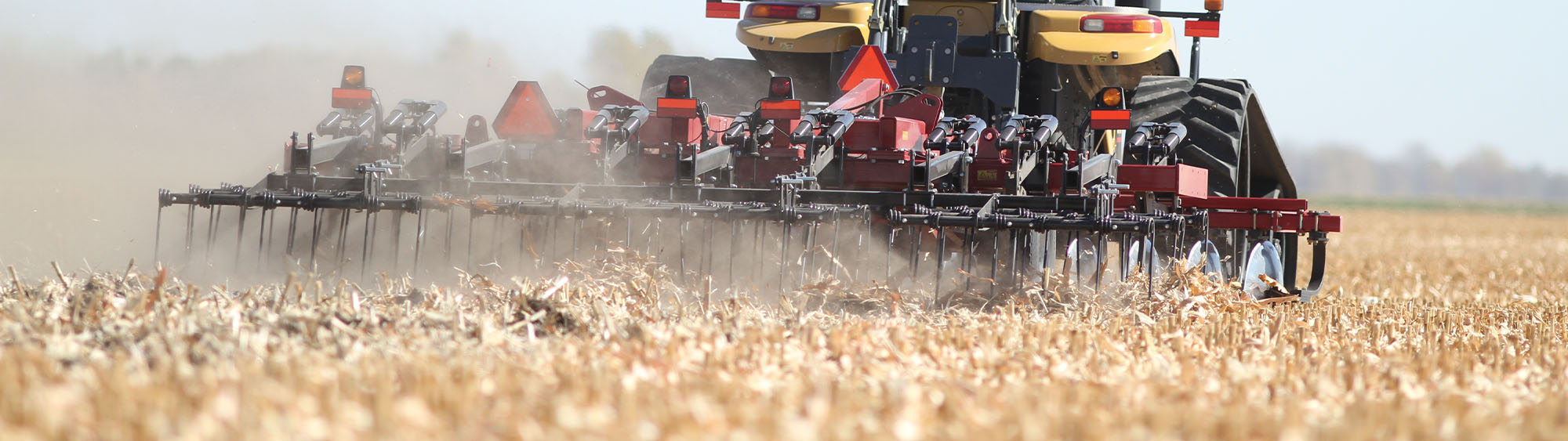

A post-harvest tillage pass can be crucial for creating a better seedbed in the spring and laying the groundwork for operational performance throughout the year. Provide your crop with the best opportunity for success while simultaneously reducing risks.

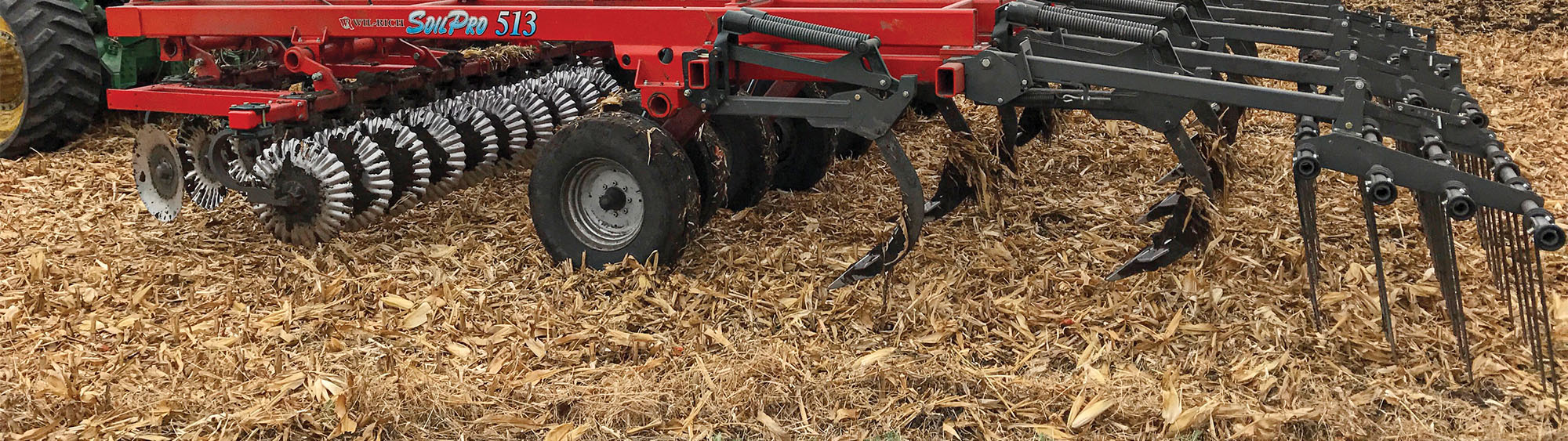

The Wil-Rich SoilPro 513 shatters deep compaction, incorporates residue for faster decomposition, and improves water infiltration. These features lead to healthier plants, better root growth, and higher yields by creating a looser soil profile, reducing plant stress, and ensuring optimal moisture access.
Swipe to read more ⮕
Compaction causes plant stress and leads to lower yields. The two rows of heavy-duty tines on the Wil-Rich SoilPro 513 can thoroughly shatter compaction across the width of the implement at depths up to 36 cm (14"). This creates a better, looser soil profile for improved root growth, healthier plants, and higher yields.
The Wil-Rich SoilPro 513 increases field efficiency by cutting and incorporating residue as well as shattering compaction. Its large concave discs thoroughly mix large amounts of soil and residue, creating excellent soil-to-residue contact. This helps the residue to break down more quickly ahead of spring planting, so it doesn’t interfere with seed placement or emergence.
The Wil-Rich SoilPro 513 shatters deep compaction to help water soak deeper into the subsoil without restriction. By increasing water infiltration rates, farmers can also experience reduced ponding, waterlogging, and runoff issues. All of these benefits lead to healthier, higher-yielding crops because they have better access to deep moisture with less risk of developing problems from overly saturated soils.
The Wil-Rich SoilPro 513 is equipped with a range of advanced features designed to enhance farming efficiency and productivity. From versatile cutting widths and robust frame construction to efficient residue management and advanced hitch systems, each function of the SoilPro 513 is tailored to meet the diverse needs of modern agriculture. These features work together to ensure optimal soil preparation, improved crop establishment, and long-lasting performance in various soil conditions.

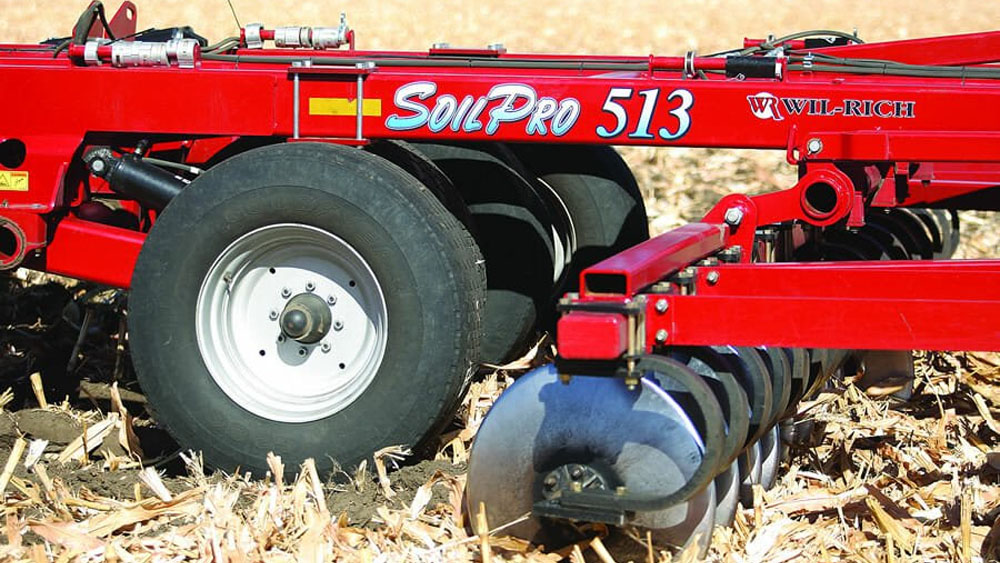

Available in cutting widths ranging from 3.8 to 7.9 m (12.5 to 26 feet), the Wil-Rich SoilPro 513 features industry-leading, large-diameter 71 cm (28 inch) discs. These discs, mounted on a two-rank individual C-spring system, efficiently bury and mix residue for rapid decomposition. The ripper tines, with a trip pressure of 1,588 kg (3,500 lbs), penetrate even the toughest soils, providing superior soil aeration and residue management.

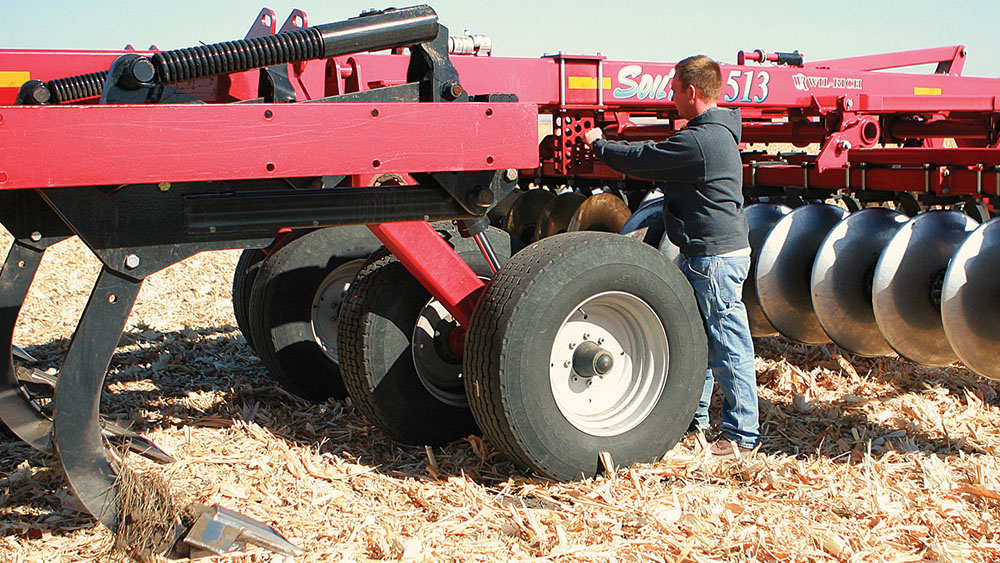

The heavy-duty 10 x 20 cm (4 x 8 inch) frame adds significant weight, ensuring the tool remains grounded and effective in heavy residue conditions. This robust construction enhances durability and longevity, making it a reliable choice for intensive farming operations.

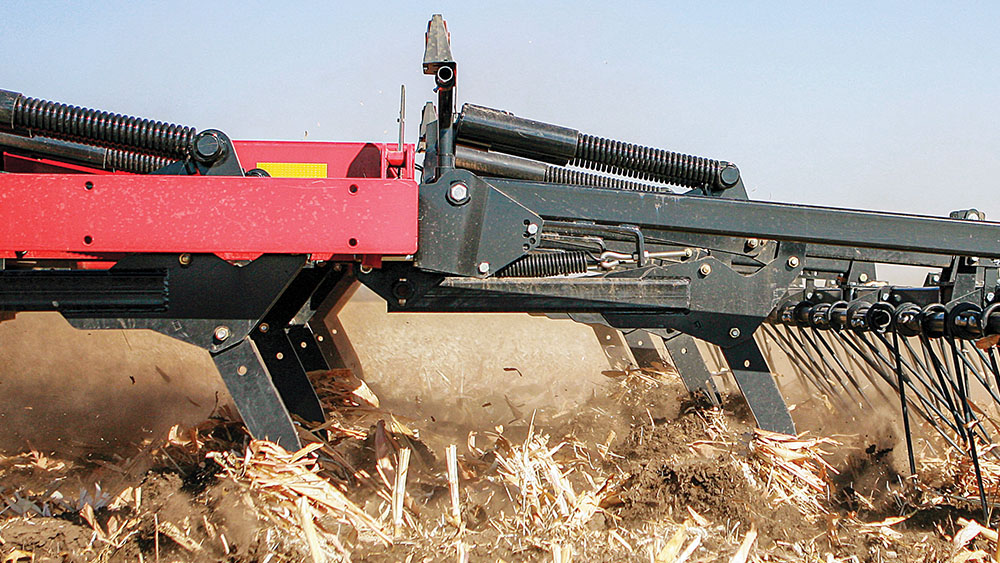

The Wil-Rich SoilPro 513 features two ranks of tines spaced 145 cm (55 inches) apart, with the closest tines on the rank being 122 cm (48 inches) apart. This design promotes excellent crop residue flow, reducing clogging and improving operational efficiency.

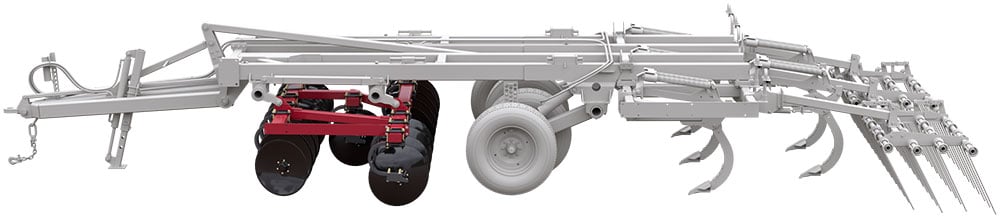

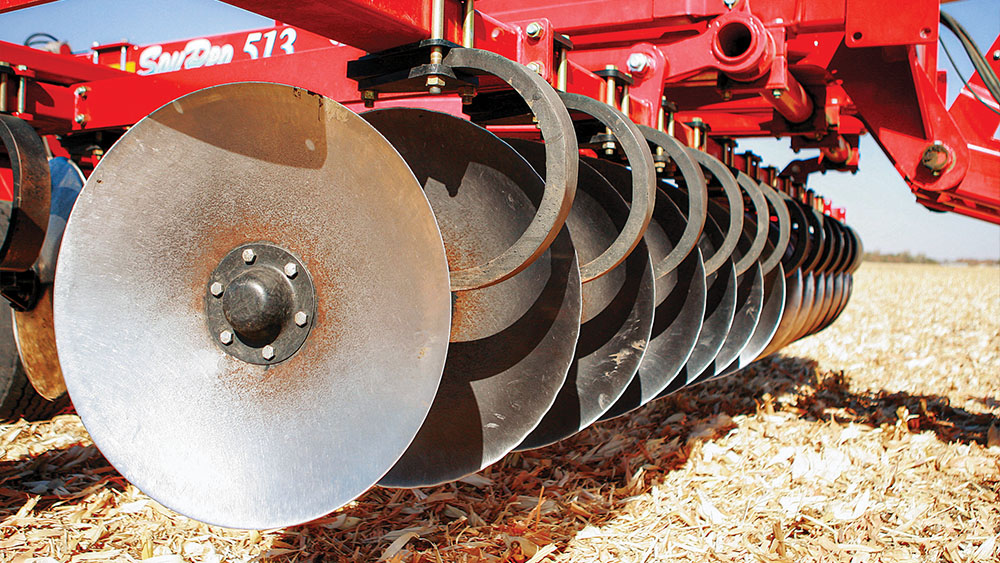

Individually mounted C-spring 71 cm (28 inch) disc blades have an effective spacing of 48 cm (19 inches). This configuration ensures consistent soil penetration and residue mixing, enhancing soil health and crop productivity.

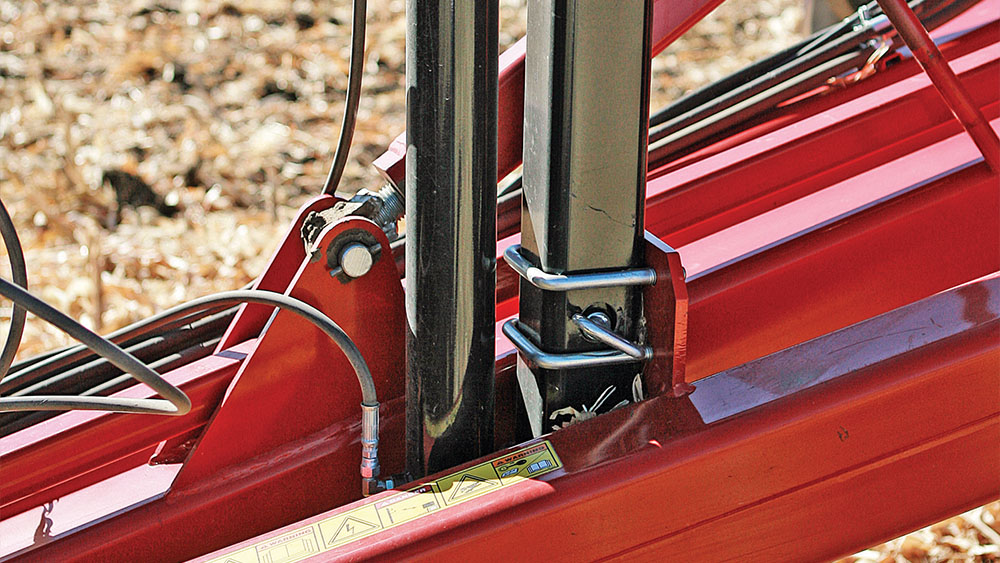

The Wil-Rich SoilPro 513 comes standard with a hydraulic jack and a visual gauge for relative disc depth. The level lift hitch and fabricated steel Cat. V tongue hitch for a 7 cm (2.75 inch) diameter pin provide easy attachment and stability, simplifying setup and operation for farmers.

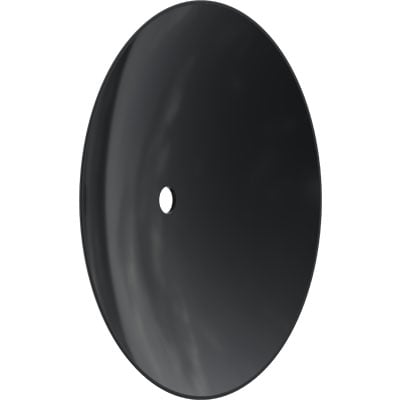

Disc
19” blade spacing. Hydraulic depth control. Individual disk blades C-spring mounted. 18-degree angle. You can also opt for a SoilRazor blades 28” x 5/16”.

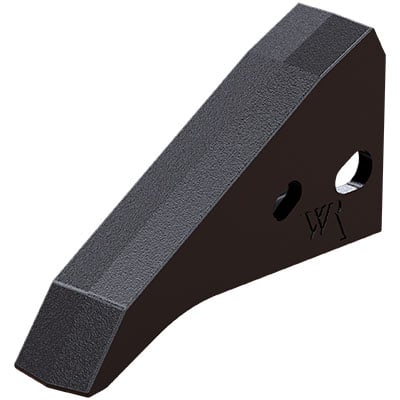

3" straight point
Straight Ductile Iron Point (3” wide).

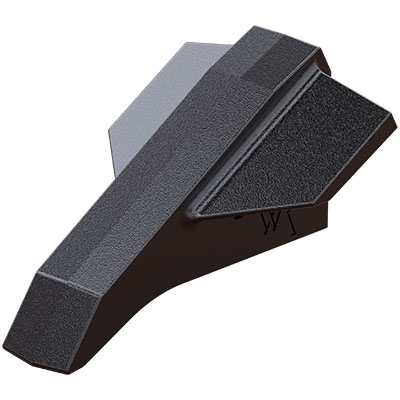

7" wing point
Point 7” Wing Cast.

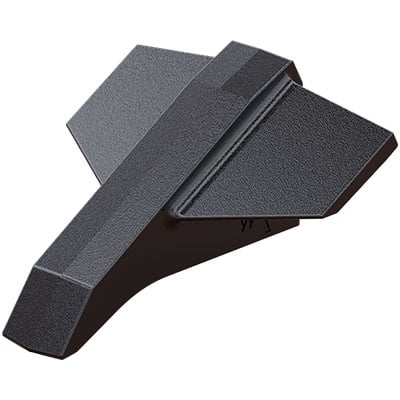

10" wing point
Wing Ductile Iron Point (3” wide point with 10” wide wings).

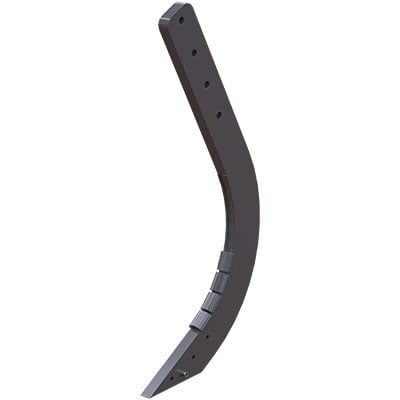

Parabolic tine
1 – ¼” high strength abrasion
Resistant steel with chromium
Carbide shin guards
Spring reset tines
Two trip extension springs
Working depth 14” maximum
3500 lbs max trip pressure

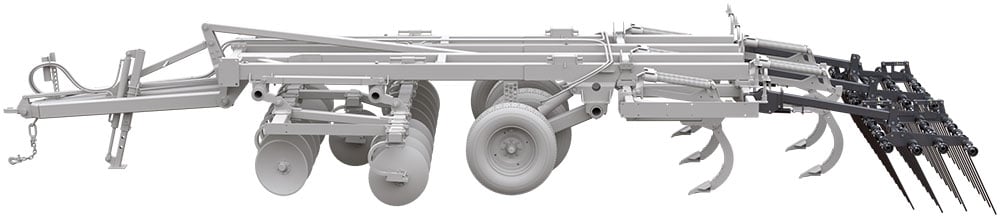

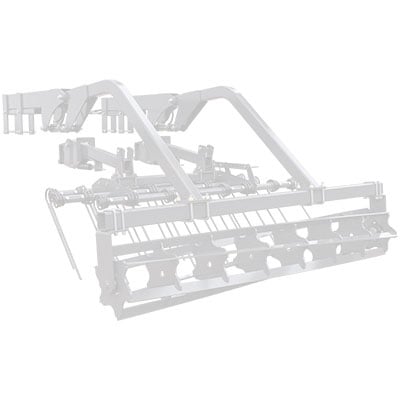

2-bar coil tine harrow with flat bar rolling basket combination
The 2-bar coil tine harrow with flat bar rolling basket is designed with 30 cm (12") between tooth bars. A harrow and rolling basket work together to create a desirable field finish. The aggressiveness of the tines is adjustable. The basket has eight blades made of 0.6 x 3 cm (0.25 x 1.25") steel. The basket is 33 cm (13") in diameter. A hydraulic lift option is available for the basket, giving operators the ability to lift the rolling basket when it is not desirable to use it, such as in muddy conditions or when there is a wet spot in the field.
4-bar coil tine harrow
This finishing option is a 4-bar tubular harrow that provides a smooth and level finish when handling tough residue. It features five adjustments for tooth angle, allowing the user to set the harrow’s aggressiveness according to ground conditions and the amount of residue on the soil surface. The tines are 16 mm in diameter and either 66 cm or 76 cm long, depending on the tool they are attached to.
| 5-30 SP 513 | 7-24 SP 513 | 9-24 SP 513 | |
| Rigid/Folding | rigid | rigid | rigid |
| Number of tines | 5 | 7 | 9 |
| Number of discs | 18 | 18 | 24 |
| Tine spacing (cm) | 76 | 60 | 60 |
| Working width (m) | 3.8 | 4.3 | 5.5 |
| Transport width (m) | 4.9 | 4.9 | 6.5 |
| Transport height (m) | 2.1 | 2.1 | 2.1 |
| Transport length (m) | 10.2 | 10.2 | 10.2 |
| Weight (kg) | 7,793 | 8,192 | 9,590 |
| Draught requirement (hp) | 300-400 | 300-450 | 350-450 |
| 9-24 SP 513 | 11-24 SP 513 | 13-24 SP 513 | |
| Rigid/Folding | folding | folding | folding |
| Number of tines | 9 | 11 | 13 |
| Number of discs | 24 | 30 | 34 |
| Tine spacing (cm) | 60 | 60 | 60 |
| Working width (m) | 5.5 | 6.7 | 7.9 |
| Transport width (m) | 4.8 | 5.9 | 5.9 |
| Transport height (m) | 3.6 | 4.2 | 5.9 |
| Transport lenght (m) | 10.2 | 10.2 | 10.2 |
| Weight (kg) | 10,236 | 14,642 | 15,281 |
| Draught requirement (hp) | 350-450 | 450-550 | 500+ |
*Approx weight: base weight + tire group
** Adding harrows to a unit may increase the transport width and/or height of the unit.
