4.4-11.9 m
19.1 cm
>170-510 hp
33 cm

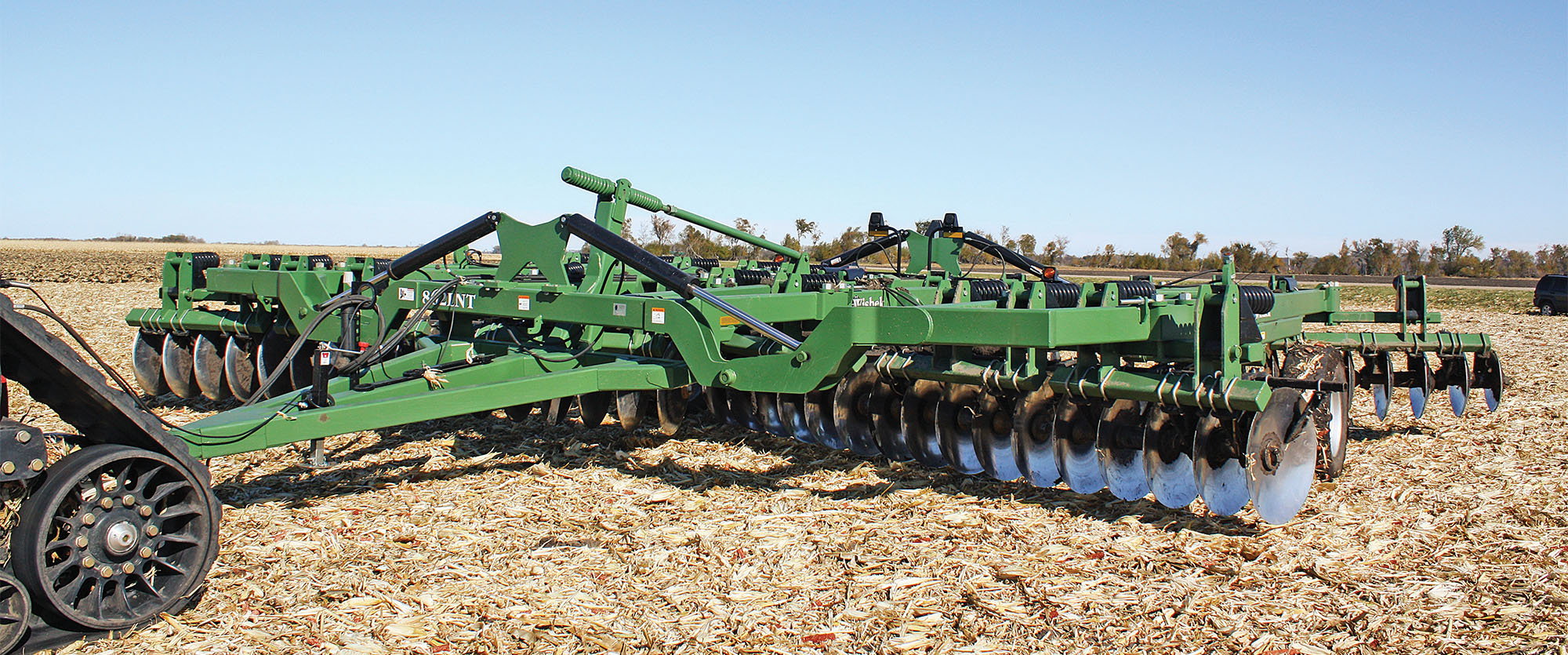

The Wishek 862NT tandem disc is built especially heavy for penetrating hard ground and maintaining consistent depth. It has large concave discs for mixing high volumes of soil, making it a great option for breaking sod and managing heavy residue. The heavy-duty construction provides outstanding durability, ensuring years of reliable use in tough conditions.
Because it has such a high weight per blade, the Wishek 862NT is a top choice for breaking new ground. It penetrates tough soil conditions better than lighter discs.
The Wishek 862NT has extra-large concave discs that are engineered to turn over large amounts of soil. It helps bury heavy residue for faster decomposition.
In tough ground conditions, the Wishek 862NT can help break up and mix the hard upper soil profile for easier management and better seedbed preparation in the spring.
A post-harvest tillage pass is essential for preparing a superior seedbed in the spring and establishing a strong foundation for operational performance throughout the year. Give your crop the best chance to thrive while mitigating risks at the same time.
The Wishek 862NT excels in penetrating hard soils, managing heavy residue, and preparing seedbeds. Its heavy frame and large discs ensure deep penetration and effective soil mixing, making it ideal for breaking new ground and enhancing residue decomposition.
Swipe to read more ⮕
An exceptionally heavy frame, combined with 33 cm (13") disc spacing, helps to produce an industry-leading weight per blade. This weight is leveraged to help penetrate and maintain depth in hard soils. As a result, the Wishek 862NT is commonly used to break new ground, since it can penetrate and turn over sod better than most other tools.
With a maximum working depth of 19.1 cm (7.5"), the Wishek 862NT tandem disc turns over more soil than most other discs. This action helps to bury large amounts of residue and create excellent soil-to-residue contact. The soil microbes can then work more effectively, helping to decompose the residue at a faster rate.
Hard ground conditions can cause problems with seedbed preparation and planting. The Wishek 862NT can be used to break up and mix the soil profile at working depths up to 19.1 cm (7.5"). It produces larger clods that help catch moisture and resist wind erosion over the winter. The clods can then be broken down easily in the spring with a secondary tillage pass, helping to form a planter-ready seedbed.
The Wishek 862NT tandem disc is engineered to excel in difficult soil conditions, featuring industry-leading weight and large concave discs for outstanding performance. Its robust construction enables it to penetrate hard ground and handle heavy residue, while the large discs ensure thorough soil mixing and optimal tillage depth.
The Wishek 862NT weighs approximately 1,488 kg/m (1,000 lbs/ft) of implement. Its 33 cm (13") disc spacing provides ample weight per blade to help the unit penetrate the soil when breaking new ground or in other challenging conditions.
The 76 cm (30") diameter concave discs are capable of mixing large amounts of soil at depths up to 19.1 cm (7.5"). Smooth or notched blades are available. The notched option offers better cutting performance when sizing heavy residue or slicing into hard ground.
You need to accept cookies in order to view this feature. Click here to change your consent.
Discover the strength of the WIshek 862NT tandem disc for managing heavy residue and breaking turf. Watch the video now to learn more about what makes 862NT unique.
The Wishek 862NT Tandem Disc features specialised scrapers that prevent mud build-up, ensuring reliable operation in challenging conditions. Additionally, it offers convenient levelling options with either manual or optional hydraulic systems, enhancing user convenience and operational efficiency.

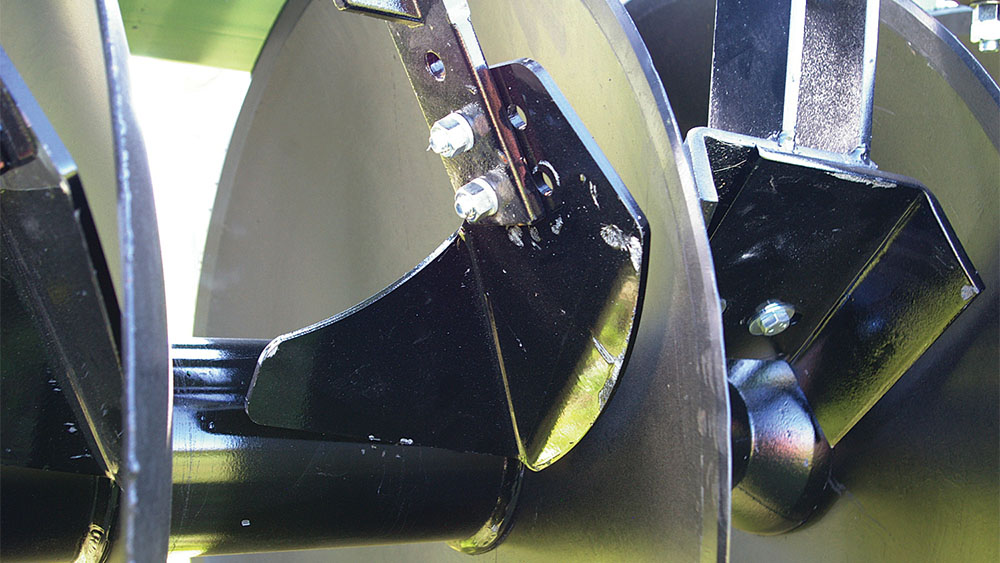

The Wishek 862NT is equipped with specialised scrapers that remove mud build-up from the discs, bearings, and spools. This feature keeps the components clean and ensures optimal tillage performance.

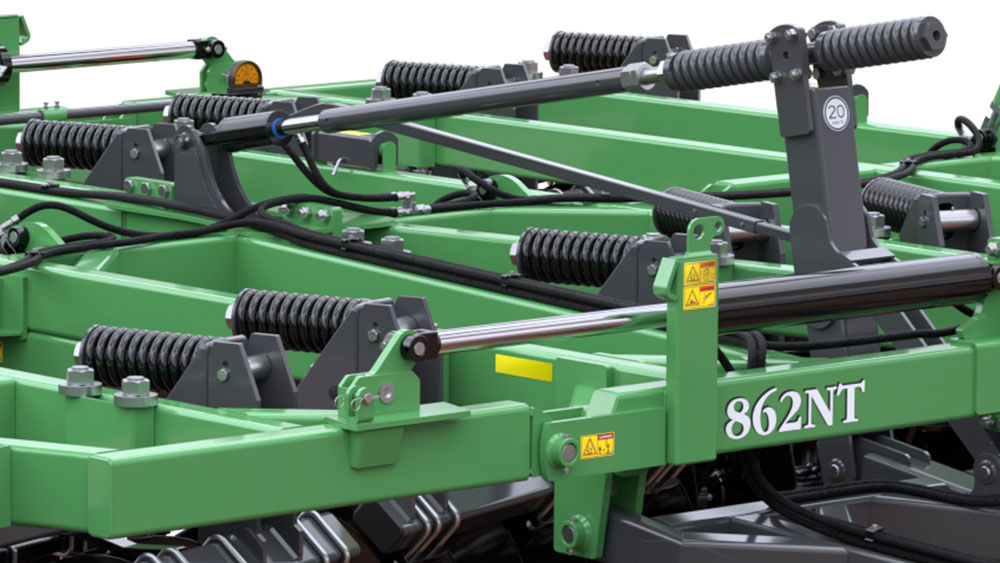

The Wishek 862NT is equipped with a manual levelling screw, making front-to-rear adjustments straightforward and easy. For even greater convenience, an optional hydraulic system allows operators to make these adjustments directly from the cab.
The Wishek 862NT tandem disc is equipped with spring-cushioned gangs that protect the discs from damage by allowing them to move and avoid solid objects. Additionally, the rear feathering discs ensure an even soil profile by eliminating ridges created by the front gangs, resulting in a uniform and precise soil finish.

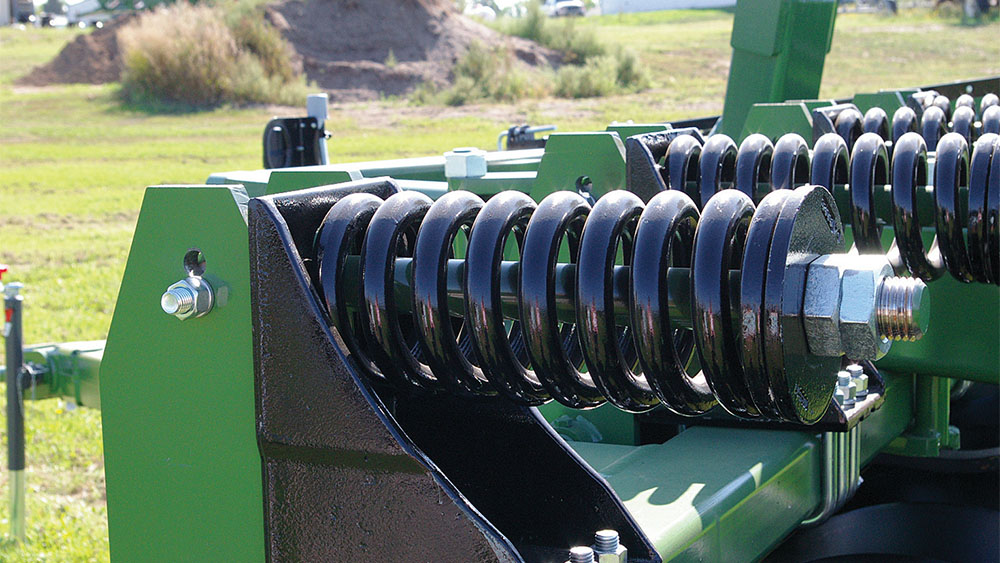

The Wishek 862NT features spring-cushioned gangs that help prevent damage when the discs encounter rocks or other foreign objects. These gangs can move 152 mm (6") rearward and upward, providing a total travel of 305 mm (12"). This flexibility helps minimise costly downtime and repairs.

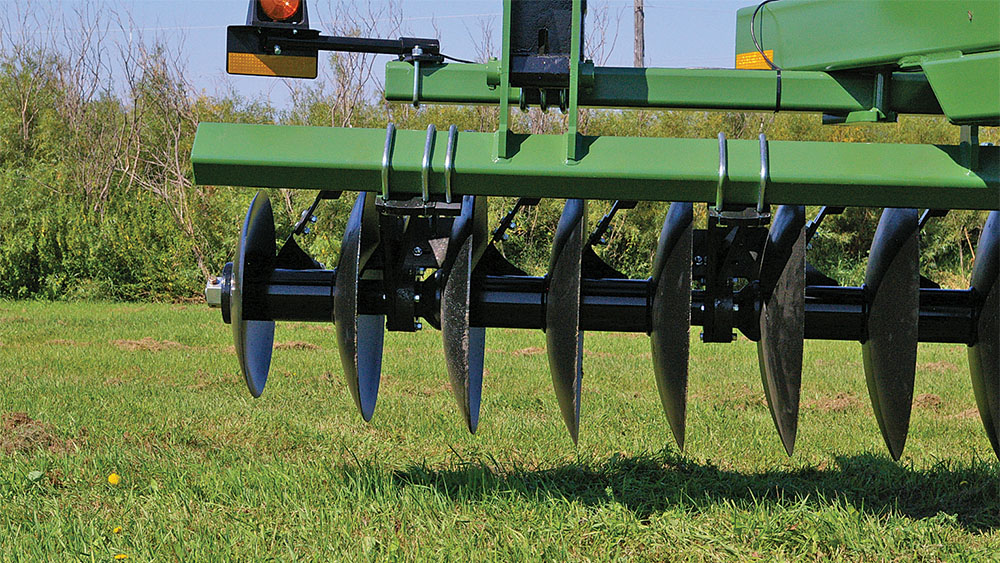

The Wishek 862NT is equipped with rear feathering discs that smooth out the ridges created by the front gangs. These discs help create a level soil profile, making seedbed preparation easier in the spring.

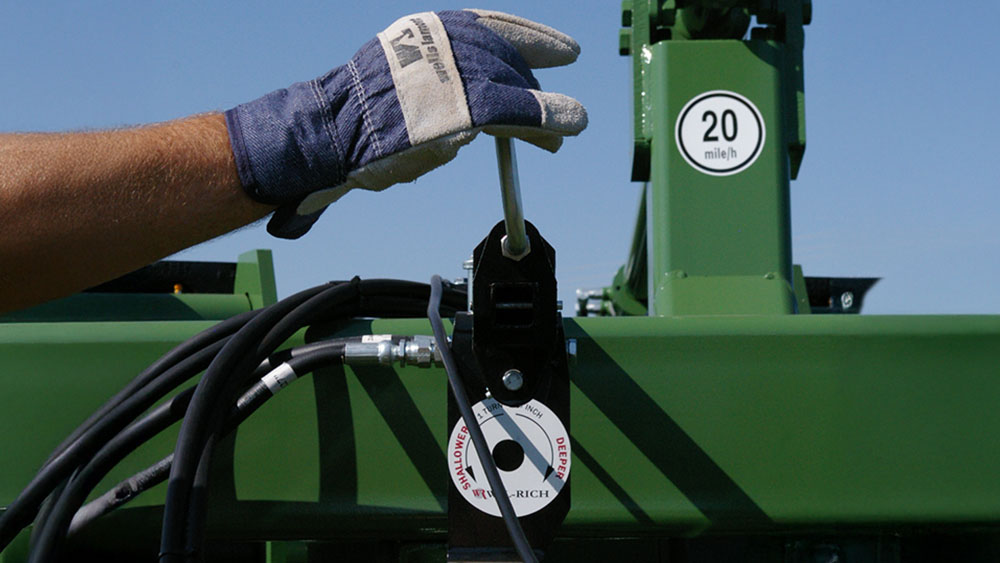

The optional single-point depth control allows operators to adjust the implement’s depth precisely from a single location. This feature eliminates the need for manual adjustments at each gauge wheel, significantly saving time and effort.
The rear hitch enables operators to tow finishing tools behind the Wishek 862NT, if desired. Hydraulic and electronic extension packages are available for controlling any additional tools.

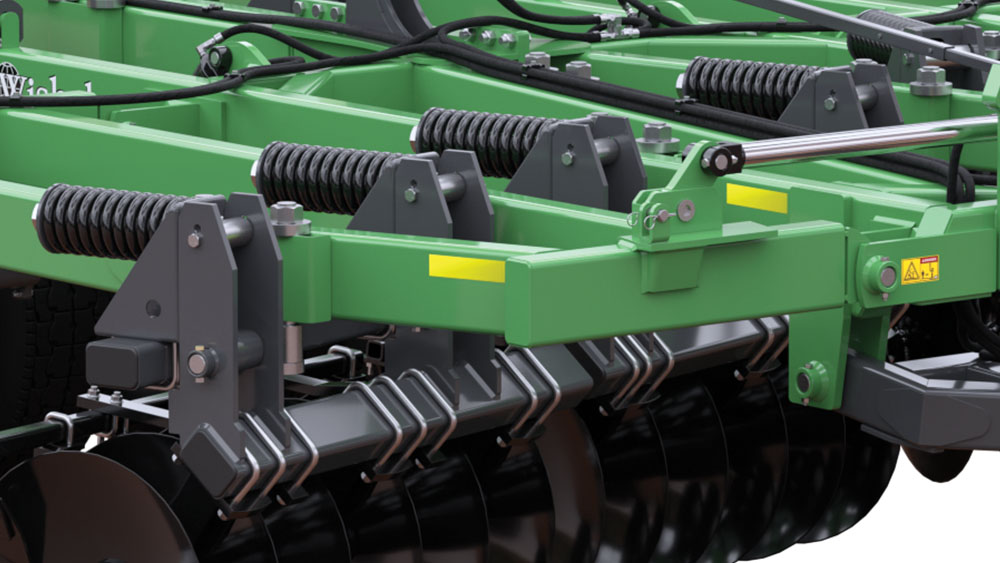

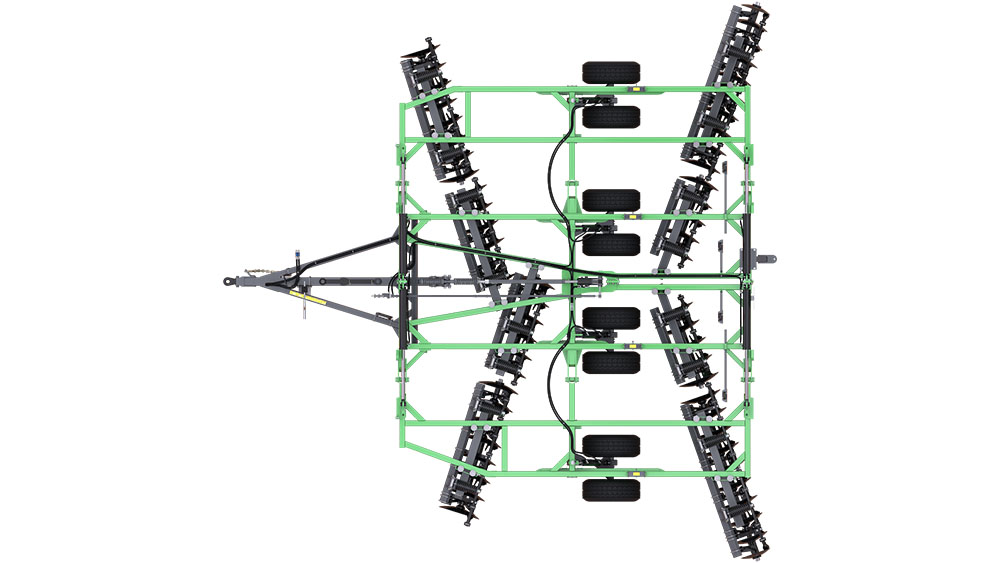

The Wishek 862NT features a 4 x 8 x 1 cm tubular welded frame that provides exceptional durability and the necessary weight to penetrate tough ground. This sturdy construction ensures the disc’s longevity and reliable performance.

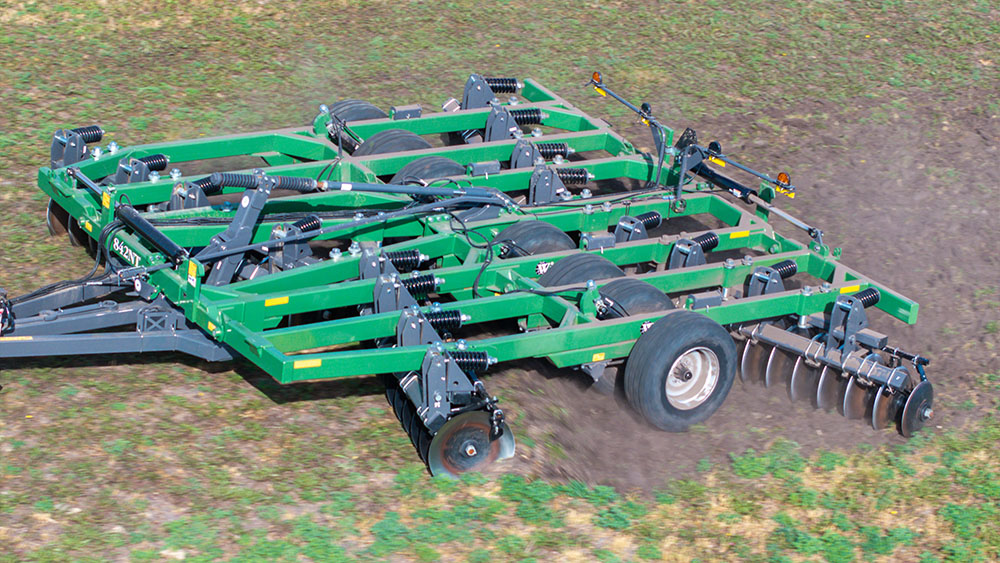

Do you need a machine with smaller disc spacing for finer soil breakdown? The Wishek 842NT, featuring 27.9 cm disc spacing and discs available in 71.1 cm and 76.2 cm sizes, offers excellent residue management and a level soil profile.
Concave disc blades are engineered for mixing soil and residue. The implement’s heavy frame helps penetrate hard ground and achieve consistent tillage depth, even in some of the most challenging applications.

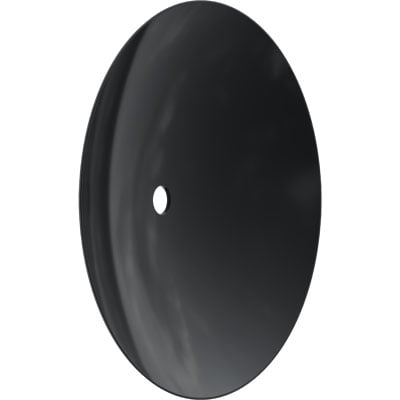

Smooth concave disc
The smooth concave disc is 76.2 cm (30") with a working depth of 25 cm (10"). Plain blades are the best option for a smooth cut, making them ideal for finishing already worked soil.

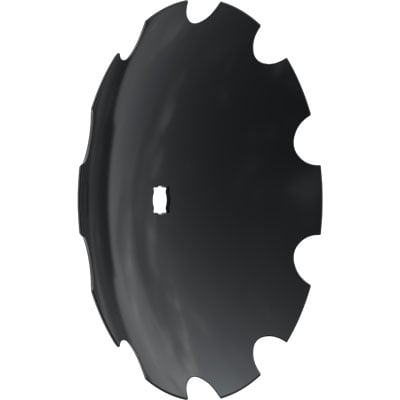

Notched concave disc
The notched concave disc is 76.2 cm (30") with a working depth of 25 cm (10"). Notched blades provide good grip in heavy residues and better penetration ability, making them ideal for breaking new ground and working in moist conditions.

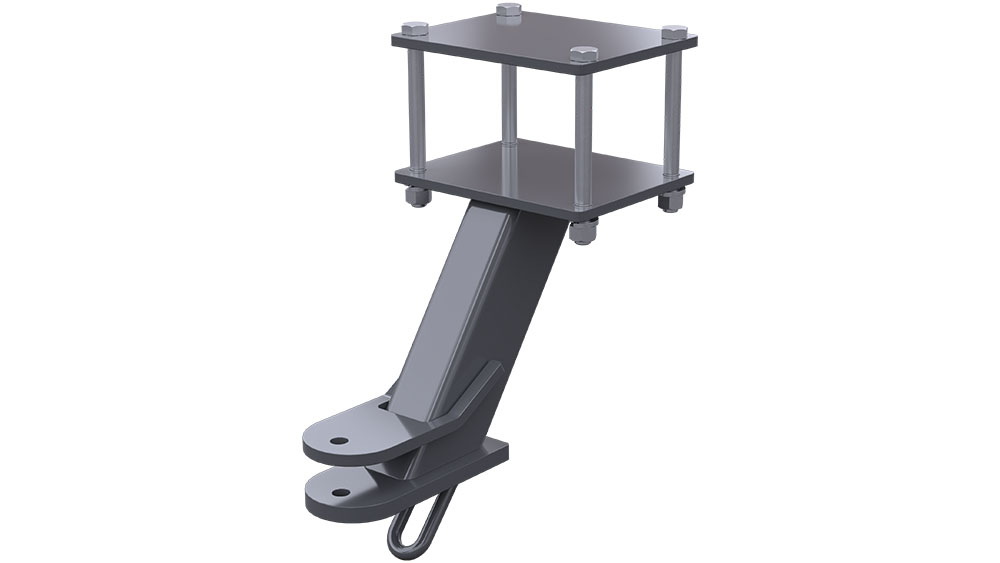

A rear hitch allows operators to tow a finishing tool, if desired, to help break up clods and level the soil profile.
| 862NT-14 | 862NT-16 | 862NT-22F | 862NT-26F | |
| Working width (m) | 4.4 | 5.0 | 6.6 | 8.1 |
| Number of bearings | 6F, 6R | 6F, 6R | 10F, 10R | 12F, 10R |
| Number of discs | 12F, 14R | 14F, 16R | 20F, 22R | 24F, 26R |
| Transport width (m) | 4.6 | 5.6 | 4.2 | 4.5 |
| Transport height (m) | 2.1 | 2.1 | 3.9 | 4.3 |
| Weight per disc (kg) | 230 | 207 | 292 | 263 |
| Weight per foot (kg) | 417 | 381 | 544 | 492 |
| Approx. weight (kg) | 5980 | 6222 | 12252 | 13127 |
| Draught requirement (hp) | 170-185 | 200-215 | 260-280 | 320-280 |
| 862NT-30F | 862NT-34F | 862NT-38F | ||
| Working width (m) | 9.4 | 10.6 | 11.9 | |
| Number of bearings | 14F, 12R | 16F, 14R | 18F, 16R | |
| Number of discs | 28F, 30R | 32F, 34R | 36F, 38R | |
| Transport width (m) | 5.2 | 4.9 | 4.9 | |
| Transport height (m) | 4.8 | 4.8 | 5.4 | |
| Weight per disc (kg) | 251 | 359 | 266 | |
| Weight per foot (kg) | 474 | 490 | 505 | |
| Approx. weight (kg) | 14575 | 17105 | 19697 | |
| Draught requirement (hp) | 370-400 | 420-450 | 470-510 |
| Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering. |
| LS = Load sensing | FR = Free return | DA = Double acting | ||
| H = Hydraulic | P = Pneumatic |
