Opus 600 cultivating field
» Tillage » Tine cultivators » Opus 400-700

Opus 400-700

4-7m

30cm

>170hp

27cm

Power and versatility

The trailed powerful tine cultivator Opus 400-700 is designed to create an intense mixing and loosening down to 30cm working depth. Opus is a powerful and versatile tine cultivator with an impressive capacity, able to handle large amounts of crop residues while keeping the draught requirement moderate.

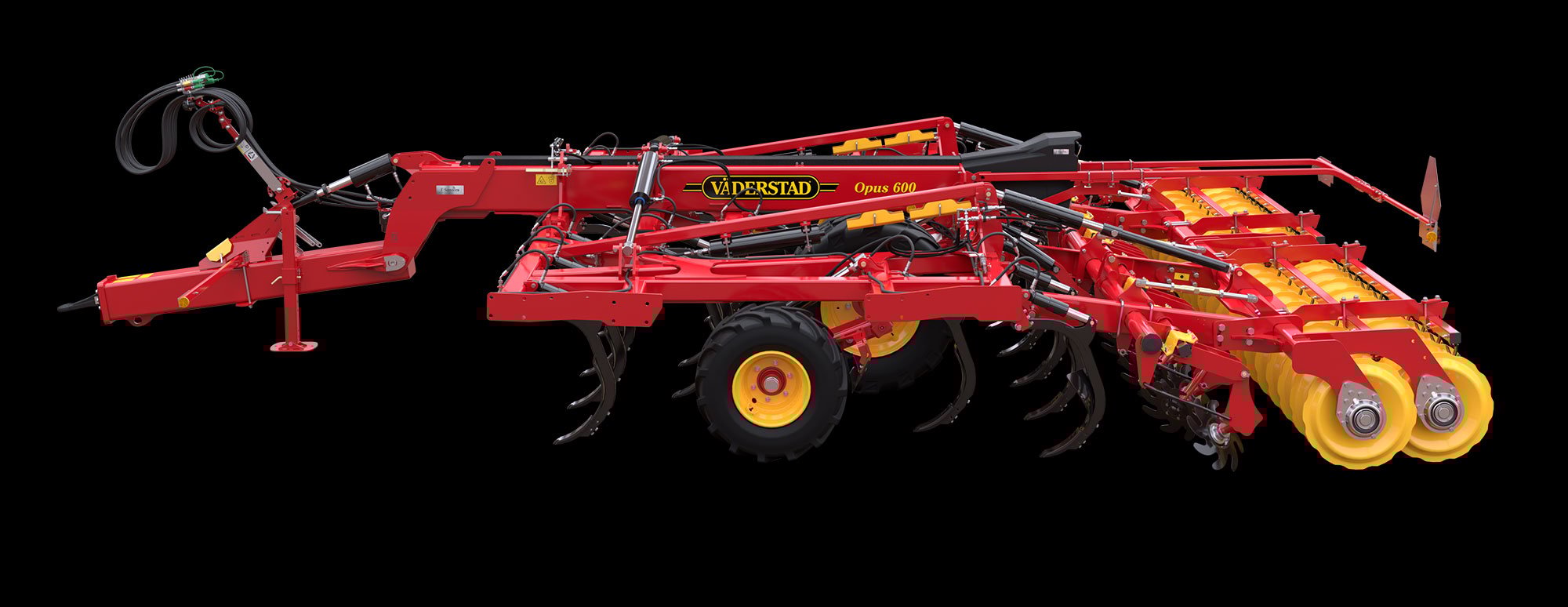

Click to active 360 product spinner

Selected features

Väderstad Cultivators extremely powerful tines

Extremely powerful tines

Opus is equipped with robust tines, which mix and loosen the soil down to 30cm working depth. With DeepLoosening points the loosening depth increases to 40cm. The tines have a hydraulic stone release, which can be adjusted variably up to 700kg release force.

Thanks to this high release force and its soil-seeking points, Opus is able to maintain a constant working depth in all field conditions.

Read more
Väderstad Opus Heavy-duty frame construction

Heavy-duty frame

The frame is designed for heavy usage in tough conditions. It has three axles and 27cm tine spacing, which ensures an intense cultivation and good throughflow.

The heavy tine cultivator Opus is built around a strong frame which can withstand high stresses extending the working life.

Read more
Man changing point

Point configurator

To meet differing farming needs, Väderstad offers a wide range of points for cultivators and tine harrows. With the right choice of points you are able to optimise the working result on your fields, providing the best start possible for the next crop.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

MixIn - double mixing and crumbling

All Väderstad tine cultivators are equipped with the unique MixIn shin as standard.

The material thereby passes the tine twice, doubling the mixing intensity both in depth and lengthwise. The benefit of a better depth mixing is that the working depth can be reduced without compromising the result. A good lengthwise distribution gives a more even crop emergence. In heavy soil the throwing angle effectively breaks the soil flow and leaves it nicely crumbled.

The MixIn shins provide superior mixing and crumbling, without increasing fuel costs.

Read more
E-control

Full control at your fingertips

Using the iPad-based control system Väderstad E-Control, the operator gains full control of the machine directly from the tractor cab. With a touch of a button, the driver can set the individual working depth or intensity of the tines, levellers, or packer on the go. To assist the field work, four pre-set buttons can be used to store different machine configurations.

With the iPad you can upload the most recent program software which allows you to benefit from future developments.

Learn more about E-Control
Read more
TopDown on a field of different colours

The future of tillage is optimised

The next step after variable rate application of seed and fertiliser is to apply the same thinking to tillage. Here savings wait to be unleashed using the rule “as much as necessary, as little as possible”. Some of the benefits come as diesel savings and improved soil health, others by the possibility to increase the working speed as well as reducing the wear. In addition, this enables an autonomous farming future.

The introduction of the iPad-based control system Väderstad E-Control, opens the possibility to apply prescription map tillage via ISOBUS Task Control.

Learn more about E-Services
Read more
Fertiliser placement with cultivation

Fertiliser placement with cultivation

Equipping Opus with a fertiliser kit allows for fertiliser application together with the tillage operation. The kit includes a distributor head that distributes the fertiliser, metered out from the front hopper Väderstad FH 2200. From the distributor head, the fertiliser is distributed to each cultivator tine. The fertiliser is placed behind each tine at selected depth, thereby providing benefits for the coming crop.

Learn more about FH 2200
Read more
Väderstad Opus levelling fields always perfectly

Always a level field

The levellers are fitted on a parallelogram, ensuring that the correct working angle is maintained at any depth.

To be able to adapt to varying soil conditions, the driver is able to adjust the intensity of the hydraulic levellers with millimetre precision on the move.

Read more

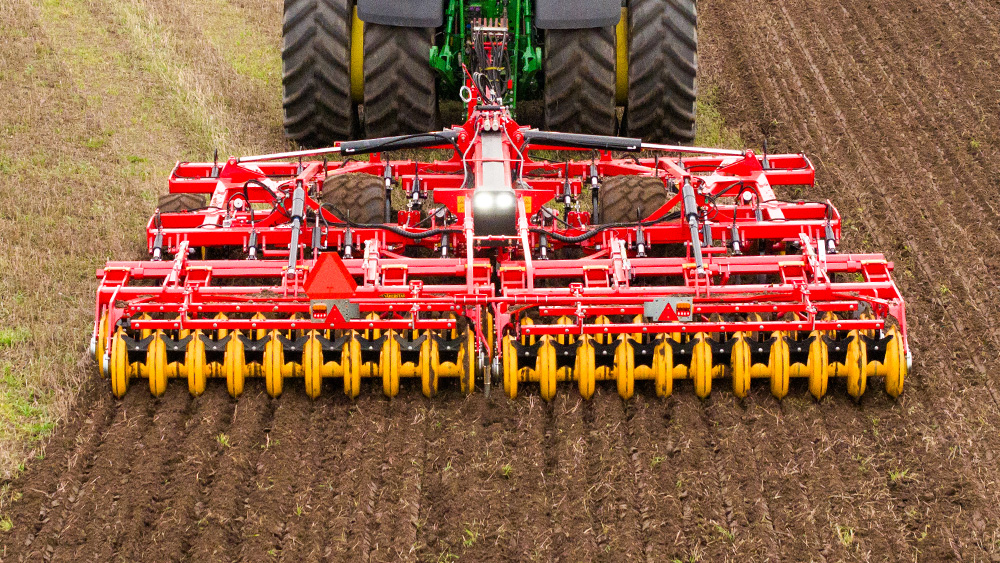

Väderstad Opus flexible in transport on roads and headlands

Easy to maneuver when turning

The carrying wheels are positioned in the middle of the machine, which makes Opus both easy to transport and gives it a small turning radius on headlands.

Behind each wheel there is a tine to leave a perfect surface without tracks.

Support wheels on the wing sections ensure that the cultivator works to a constant depth across the entire working width.

Read more

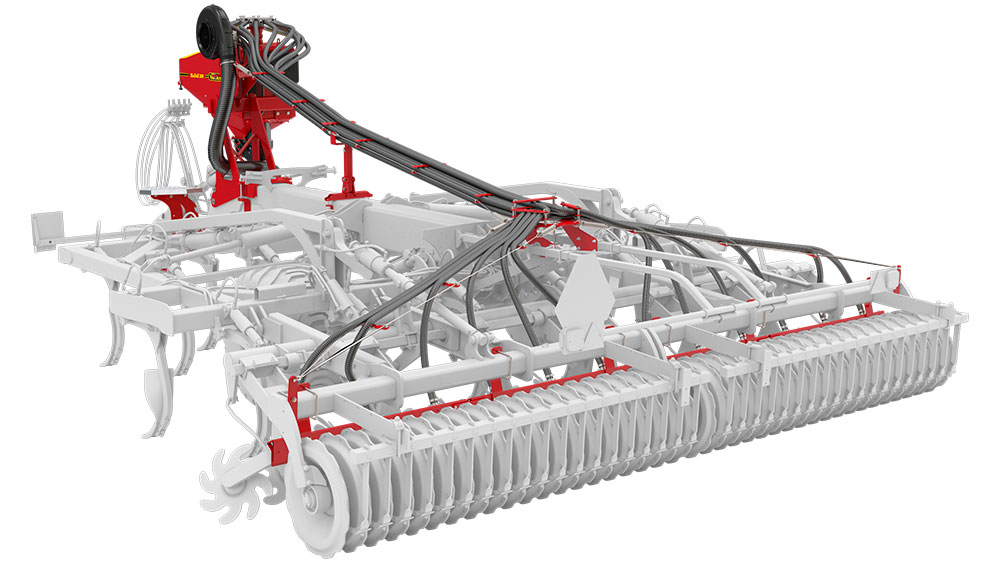

BioDrill mounted on Opus

Turn Opus into a seed drill

Equipped with the mountable small-seeder BioDrill 360, Opus becomes a seed drill allowing fast establishment of small-seeded crops, such as oilseed rape, cover crops or catch crops.

This saves time and helps maintain ground moisture.

Learn more
Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

Read more

Product concept

Zone 1 - Loosening, distributing and mixing

With 27cm tine spacing and a powerful hydraulical stone release up to 700kg, Opus provides an intensive mixing and loosening down to 30cm working depth.

Point options

MixIn shin options

Raised tine

Zone 2 - Levelling

Hydraulically adjustable rotating levelling discs leaves a smooth surface.The sealed bearings mean that the discs are maintenance-free.

Zone 3 - Full depth reconsolidation

The hydraullically adjustable packer reconsolidates the soil profile, at full working depth of the machine.

Single SteelRunner

Double SteelRunner

Double SoilRunner

Technical data

Opus 400 500 600 700
Effective working width (m) 3,75 4,75 5,75 6,75
Packer width (m) 4,0 5,0 6,0 7,0
Transport width (m) 3,0 3,0 3,0 3,0
Transport height (m) 2,68 3,12 3,6 4,0
Weight min/max (kg) 4990/5490 5450/6070 7240/8180 8260/8800
Weight with SteelRunner (kg) 5600 6200 8400 9000
Weight with double SoilRunner (kg) 5200 5600 7900 8500
Weight with Double SteelRunner 6000 6300 8600 9200
Number of tines 14 18 22 26
Tine spacing (cm) 27 27 27 27
Brakes H/P H/P H/P H/P
Recommended working speed (km/h) 8-12 8-12 8-12 8-12
Wheel dimension (support wheels)  N/A N/A 400/55-15,5 400/55-15,5
Wheel dimension (transport wheels)  520/50-17 520/50-17 550/45-22,5 550/45-22,5
Hydraulic requirements (DA) 3 3 3 3
Draught requirements from (hp) 170 210 270 320
Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return    DA = Double acting
H = Hydraulic    P = Pneumatic
