Carrier XL 425-725

4.2-7.2m

5-16cm

>150hp

125mm

Versatility in disc cultivation

Carrier XL 425-725 is a trailed disc cultivator, available in working widths between 4.25 to 7.25m. It can be fitted with 510 or 610mm discs, with adjustable disc angles. The sizes of the discs make Carrier XL 425-725 well suited for deeper cultivation, incorporating large amounts of crop residues or breaking up pasture. A wide range of front tools increases the versatility of the machine.

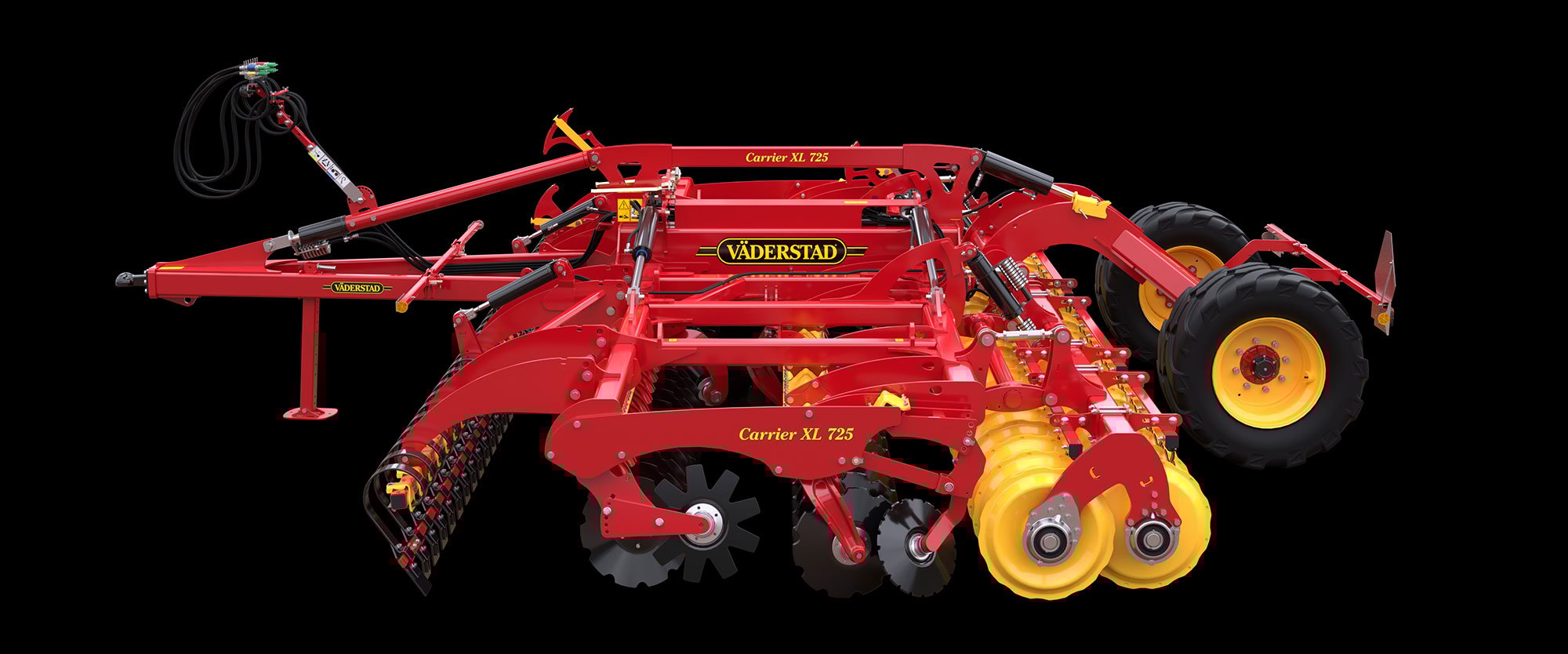

Click to active 360 product spinner
Part of the Carrier concept

Carrier is a disc cultivator used for high speed primary tillage and seedbed preparation. The wide range of front tools, discs and packers enables Carrier to handle the versatile challenges of modern farming – from ultra-shallow cultivation to a deeper incorporation. The versatility it brings to the farm saves passes, decreases machine cost per hectare and provides the best start possible for the coming crop.

Learn more about the Carrier concept

Selected features

Väderstad Discs allowing for increased working depth

Discs allowing for increased working depth

Carrier XL can be fitted with either 510mm or 610mm TrueCut discs. In comparison, the 510mm disc increases the space around the disc which allows for a higher throughflow. The 610mm on the other hand, enables greater working depth, which is a benefit when incorporating large amounts of crop residues, such as harvested maize stubble

Read more

Intensive shallow tillage

CrossCutter Disc performs outstanding in grain stubble and in cover crops, while also enabling great advantages on cultivated land. Because of its disc shape and high-quality Swedish steel, CrossCutter Disc provides full cultivation and intensive mixing at shallow working depth. This means that an extensive stale seedbed is created over the entire field.

Read more

Disc Configurator

To meet differing farming needs, Väderstad offers a wide range of discs for disc cultivators. With the right choice of discs you are able to optimise the working result on your fields, providing the best start possible for the next crop.

Read more
Väderstad MultiSet offers versatility

MultiSet offers versatility

The adjustable MultiSet disc hubs allow the disc angle to be set to one of three positions between 11 and 17 degrees. This enables the disc aggressiveness to be adjusted to fit different working depths.

Thereby a perfect slicing can be achieved during shallow cultivation, and a good penetration can be ensured at a greater working depth.

Read more

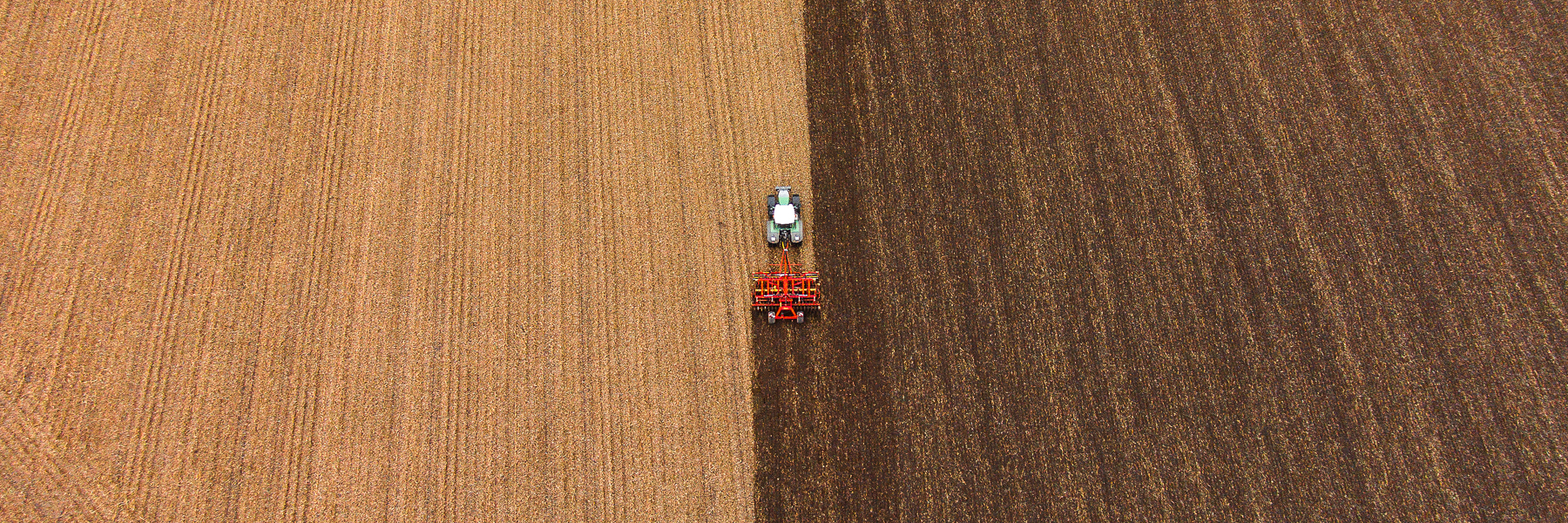

Carrier on field from sky

Easy adjustment

The maximum working depth is set on the machine, while operational depth settings are carried out hydraulically from the cab. To ensure optimal slicing and uniform cultivation, the front row of discs can be adjusted in the lateral direction with the help of rigging screws.

Read more
Support on packer wheels

Support on packer or wheels

Carrier XL 425-725 design allows for the transport wheels to be set down in the field, which makes the disc cultivator very manoeuvrable.

On headlands, the machine can be turned on either the packer or the wheels. The wheels can be lowered in damp areas or when shallower cultivation is required. By raising up the frame it is easy to back into corners, allowing the whole field to be cultivated.

Read more
Adjustable wing pressure on wider models

Adjustable wing pressure on wider model

To be able to match the working results to the conditions in the field, Carrier XL 625-725 is equipped with hydraulically adjustable wing pressure.

This ensures that the machine gives the same cultivation effect across the entire working width.

Read more
Väderstad Strohstriegel gleicht schlechte Strohverteilung aus

Straw harrow compensates for poor straw distribution

Large combines tend to have a poor straw distribution, leading to an uneven emergence of the next crop. Equipped with the straw harrow Carrier not only cuts, but also distributes straw in the same pass. Well distributed straw is crucial to provide the following crop with the same conditions over the entire field.

Read more

CrossCutter Knife adds versatility

By equipping Carrier XL 425-725 with the intensive knife roller CrossCutter Knife, crop residues can be cut in two directions.

Weeds and small-seeded crops, such as oilseed rape, profit from an improved germination. A benefit after grain or sunflowers is the intensified chopping of the straw, giving a faster decomposition. Additionally, cover crops can be crushed and incorporated cost efficiently.

Learn more
Read more
Väderstad CrossBoard Heavy for perfect levelling

CrossBoard Heavy for perfect levelling

With CrossBoard Heavy, clods are crushed and the soil is levelled. A double acting stabilising bar increases levelling capacity.

The CrossBoard is equipped with master and slave cylinders, which ensures a level work result by maintaining the position of each CrossBoard section.

Read more
Väderstad Carrier easy to transport

Easy to transport

When transporting Carrier XL 425-725 between fields, the machine is wing-folded to fit within 3m transport width.

The transport wheels are equipped with hydraulic suspension, resulting in a safe and calm ride, whilst also preventing damage to the machines main frame.

Read more
Väderstad Carrier saves you passes with BioDrill

Save passes with BioDrill

By equipping Carrier XL 425-725 with the mountable small seeder BioDrill 360, a small-seeded crop such as oilseed rape or cover crops can be established in the same pass as the cultivating operation.

The integrated ground radar provides perfect speed detection, whilst the high fan capacity ensures equal distribution of all seed sizes.

BioDrill provides an accurate seeding at the same time as it saves passes on the field.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

Read more

Product concept

Zone 1 - Front tools

Whether you require a stale seedbed, levelling of ploughed land or cover crop incorporation, the optional front tools offer versatility to different farming requirements.

Straw harrow

CrossCutter Knife

CrossBoard Heavy

Zone 2 - Intensive cutting and mixing

Two rows of high quality V-55 hardened Swedish steel discs aggressively cuts and mixes harvest residues down to 16cm working depth. The conical shape of the discs ensures a long working life and good crumbling of the soil.

CrossCutter Disc

CrossCutter Disc Aggressive

TrueCut 510mm discs

TrueCut 610mm discs

Zone 3 - Reconsolidation

Carrier can be equipped with packers suitable for a wide range of field conditions. The rubber suspension on the packer absorbs shocks and extends the working life of the frame and the packer.

Double SoilRunner

Single SteelRunner

Double SteelRunner

Technical data

Carrier XL 425 525 625 725
Effective working width (m) 4,1 5,1 6,1 7,1
Packer width (m) 4,25 5,25 6,25 7,25
Transport width (m) 2,85 2,85 2,85 2,98
Transport height (m) 3,06 3,58 4,0 4,0
*Weight with Single SteelRunner (kg) 6200 7200 8200 9000
*Weight with Double SteelRunner (kg) 6300 7400 8300 9200
*Weight with Double SoilRunner (kg) 5700 6600 7400 8100
Number of discs 32+1+2 40+1+2 48+1+2 56+1+2
Disc diameter (mm) 510/610 510/610 510/610 510
Disc spacing (cm) 12,5 12,5 12,5 12,5
Disc angle 11-17 11-17 11-17 11-17
Brakes H/P H/P H/P H/P
Recommended working speed (km/h) 10-15 10-15 10-15 10-15
Wheel dimension (transport wheels) standard 400/60-15,5 400/60-15,5 520/50-17 560/45-22,5
Wheel dimension (transport wheels) option 520/50-17 520/50-17 560/45-22.5 N/A
Hydraulic requirements (DA) 3-4 3-4 3-4 3-4
Draught requirements from (hp) 150-200 190-240 220-270 260-310

* Weight including CrossBoard Heavy and 610mm TrueCut discs. Note! Weights for CRXL 725 are with 510mm TrueCut discs.

Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return    DA = Double acting
H = Hydraulic    P = Pneumatic
