3.5-5.5 m
19.1 cm
>135-235 hp
27.9 cm

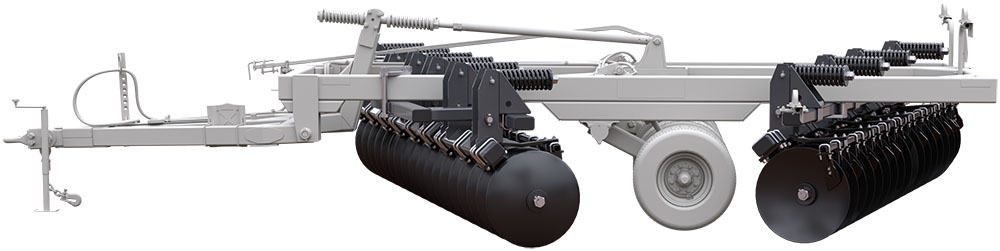

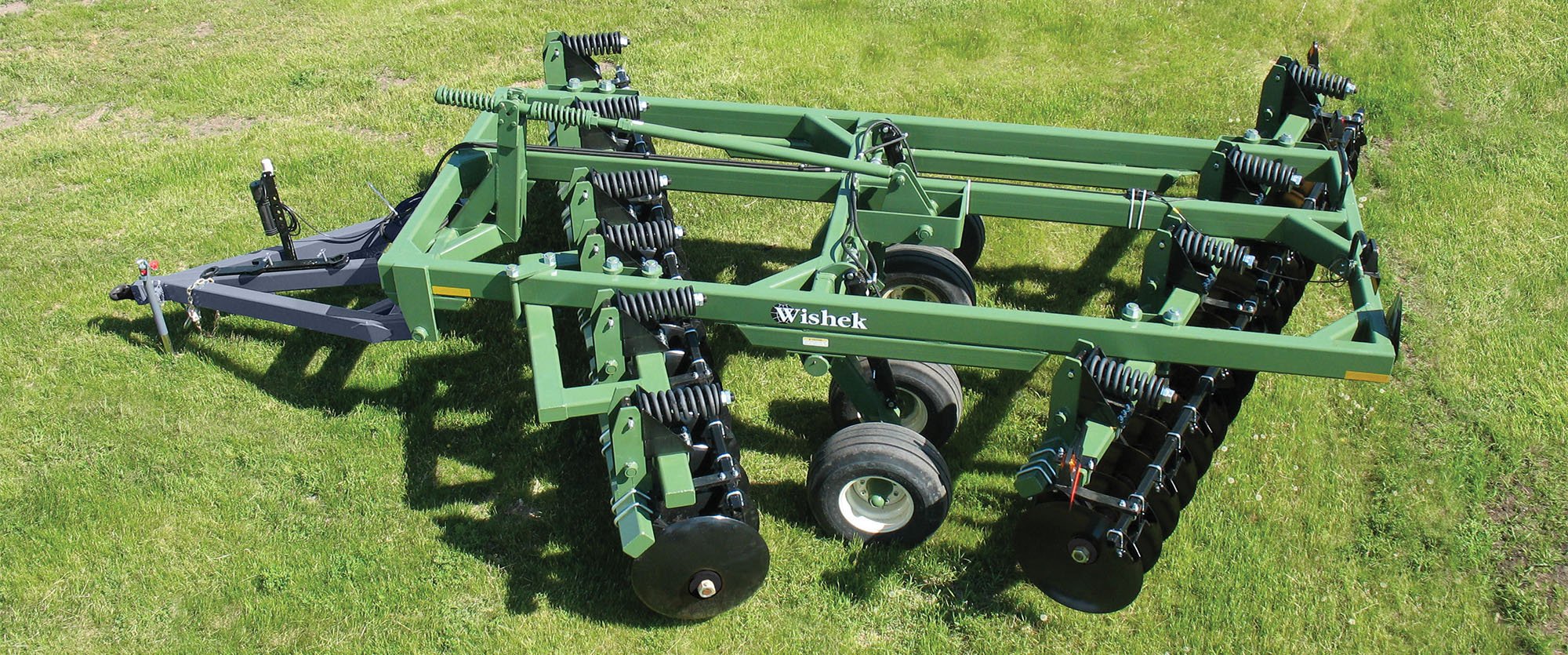

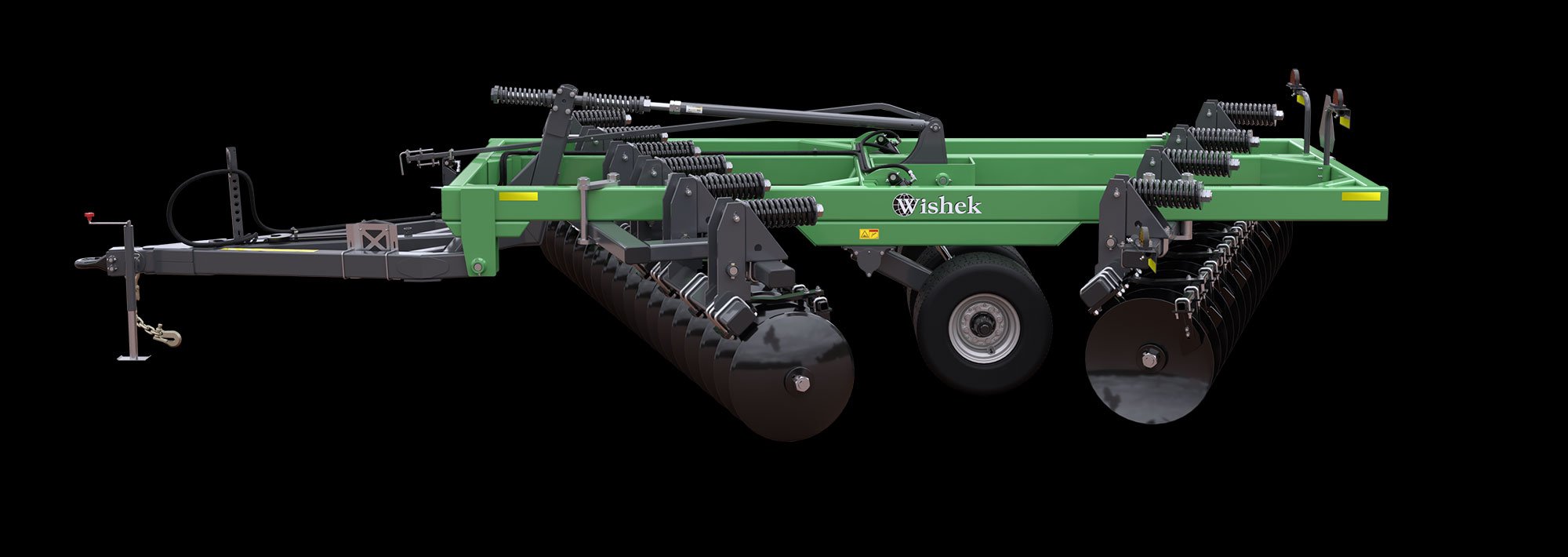

The Wishek 842N Offset Disc is a robust and reliable choice for farmers seeking a durable and low-maintenance solution. With approximately 1,488 kg/m of implement, the offset disc can penetrate even the toughest soil conditions, ensuring efficient tillage.
The Wishek 842N offers great flexibility for accessing tight corners and other difficult areas of small and irregularly shaped fields.
Large concave discs on the Wishek 842N mix residue with soil to help promote fast decomposition for a cleaner seedbed in the spring.
The Wishek 842N offers excellent soil mixing capabilities to help create better tilth in heavy soils.
A post-harvest tillage pass can be crucial for creating a better seedbed in the spring and laying the groundwork for operational performance throughout the year. Provide your crop with the best opportunity for success while simultaneously reducing risks.
The Wishek 842N enhances field management by providing flexibility for accessing tight areas in small and irregular fields, promoting even emergence. It mixes residue with soil for faster decomposition, creating a cleaner seedbed in the spring. Additionally, it penetrates tough ground to improve soil tilth, retains moisture, and resists wind erosion, making spring seedbed preparation easier.
Swipe to read more ⮕
Achieving consistent tillage results in small and irregularly shaped fields can be difficult with larger discs. The Wishek 842N offers greater flexibility and efficiency for accessing corners and other tight areas within fields. It helps operators create a more consistent soil profile throughout the entire field to promote even emergence.
When residue is thoroughly incorporated, soil microbes can break it down faster. A fall tillage pass with the Wishek 842N can mix residue with soil to start the decomposition process. This helps to create a cleaner seedbed in the spring, ensuring that residue doesn’t interfere with planting or emergence.
The Wishek 842N is heavy enough to penetrate some of the toughest ground. Its large concave discs break up and mix the upper soil profile to help create better tilth in harder conditions. It produces larger clod sizes that help to catch moisture and resist wind erosion over the winter. In the spring, the field can be worked easily with a secondary tillage pass to create an ideal seedbed.
The Wishek 842N Offset Disc is designed to deliver optimal performance and ease of use. With specialised scrapers to prevent mud build-up and convenient levelling options, this machine ensures smooth and efficient operation even in challenging conditions. Customisable features like feathering discs and multiple disc options allow farmers to tailor the equipment to their specific needs, enhancing precision and efficiency in the field. The durable tubular frame and impact-resistant spring-cushioned gangs further ensure long-lasting performance and reliability.

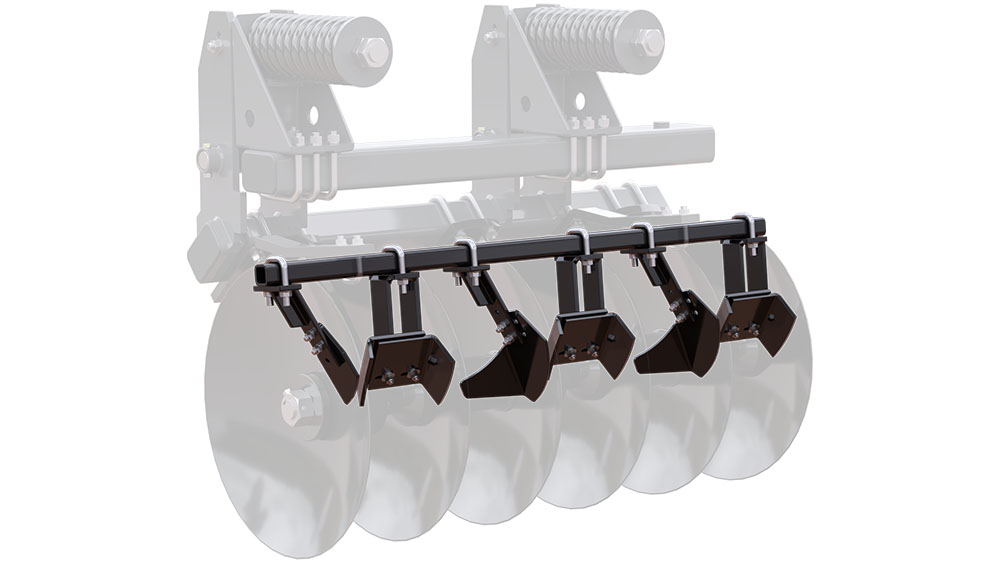

Equipped with specialised scrapers for the discs, bearings, and spools, the Wishek 842N optimises performance by keeping the gangs free of mud build-up, ensuring smooth operation in various conditions.

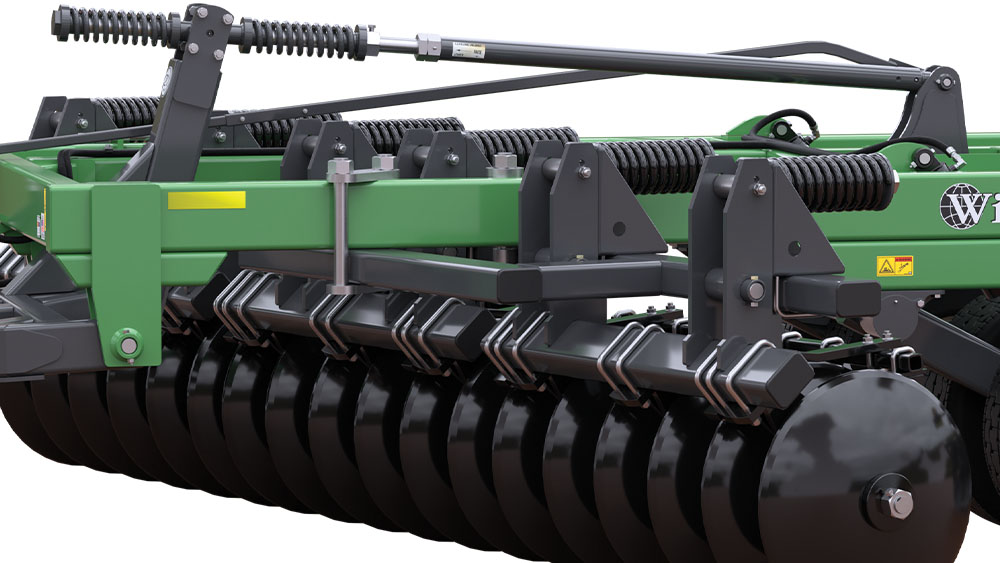

Levelling the Wishek 842N front-to-back can be done manually with levelling screws or hydraulically from the cab. This ease of adjustment enhances operational efficiency and comfort.
The Wishek 842N offers a range of features that allow farmers to tailor the equipment to their specific needs, ensuring precision and efficiency in the field. Feathering discs and multiple disc options provide the flexibility required for various soil types and conditions.

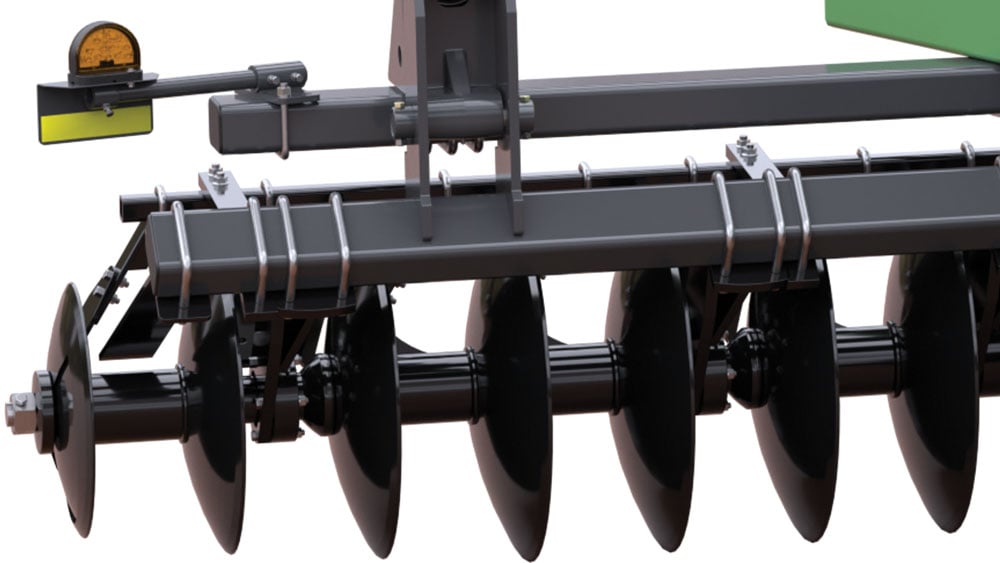

Rear feathering discs on the Wishek 842N help create an even soil profile by removing ridges left by the front gangs, essential for preparing a smooth seedbed.

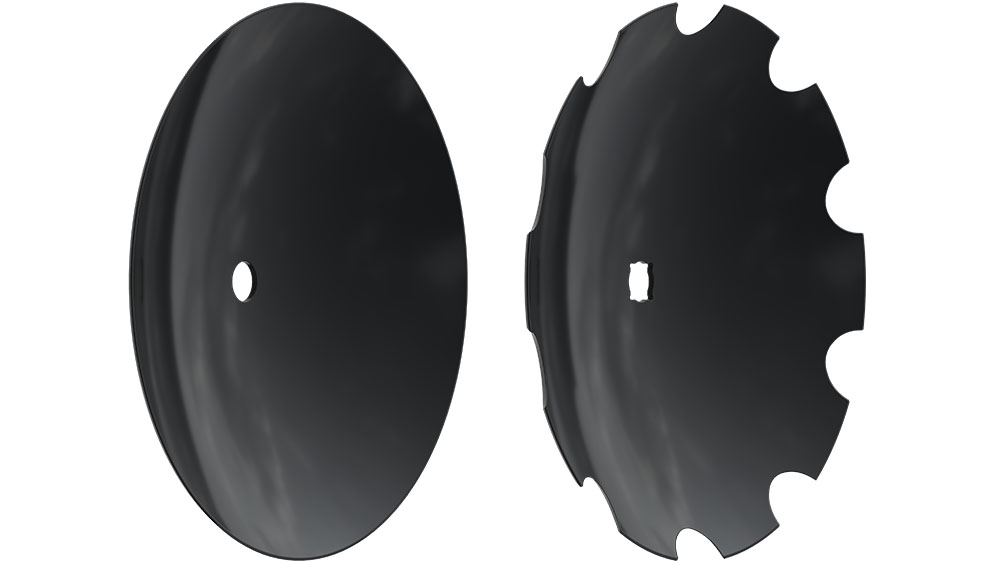

Farmers can choose from 71.1 to 76.2 cm diameter smooth or notched discs on the Wishek 842N, tailored to their specific needs. This flexibility ensures optimal performance for different soil types and conditions.

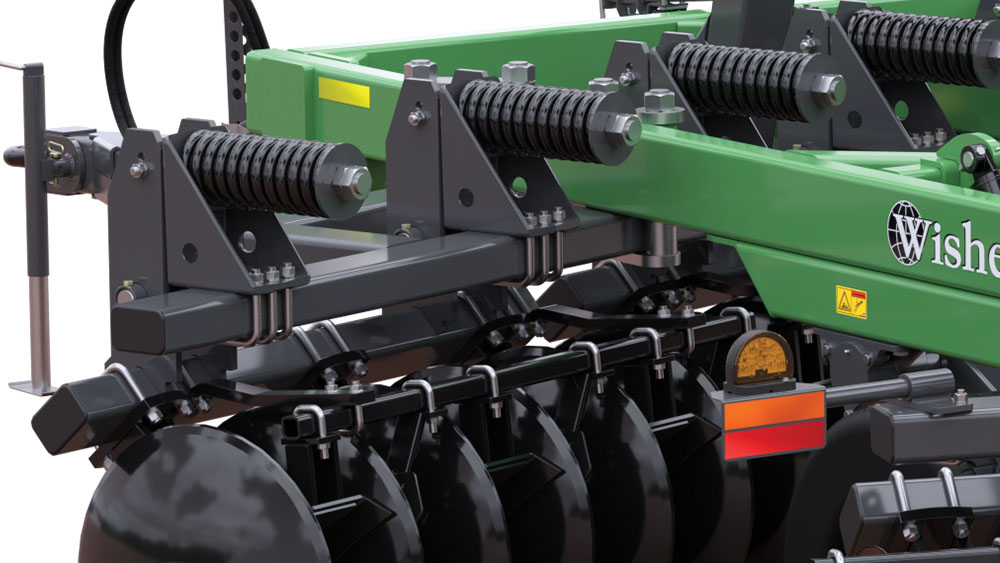

When striking a solid object, such as a rock, the spring-cushioned gangs on the Wishek 842N allow the discs to travel in an arc of 152 mm rearward and 152 mm upward. This design prevents damage and maintains the integrity of the equipment.
The optional single-point depth control on the Wishek 842N allows the operating depth of the entire disc to be adjusted with a single setting. This feature provides precise adjustment, making it simple, safe, and efficient to achieve the desired tillage depth.

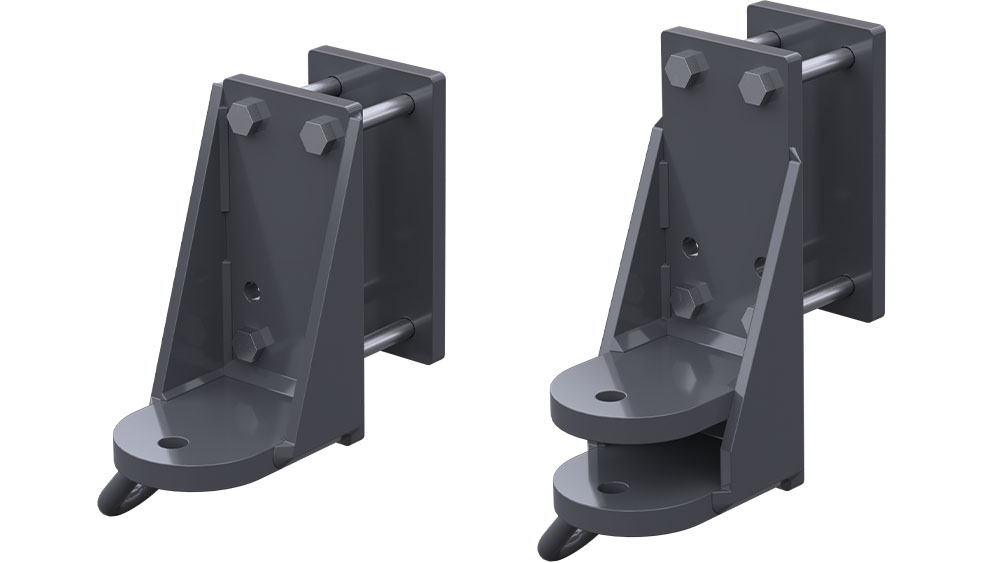

A rear hitch on the Wishek 842N enables the towing of finishing tools or other implements behind the disc. Hydraulic and electronic extension packages are available, providing versatile articulation of towed equipment.
The 10.2 x 20.3 x 1 cm tubular welded frame of the Wishek 842N offers rugged durability and the necessary weight to penetrate tough ground, ensuring long-lasting performance.
Wishek discs offer exceptionally large blades, available in 71.1 cm and 76.2 cm sizes, providing high clearance and deep cultivation. These discs are powerful tools with great durability, thanks to their spring cushion as a standard feature. You can choose between smooth or notched blades, depending on your specific needs.
Smooth concave disc
Smooth concave discs are available in two sizes: 71.1 cm (28") and 76.2 cm (30"). For a working depth of 23 cm (9") and better soil penetration, opt for the 71.1 cm discs. For deeper cultivation with a working depth of 25 cm (10") and longer blade life, choose the 76.2 cm discs. Plain blades are the best option for a smooth cut, making them ideal for finishing already worked soil.
Notched concave disc
Notched concave discs are available in two sizes: 71.1 cm (28") and 76.2 cm (30"). For a working depth of 23 cm (9") and better soil penetration, opt for the 71.1 cm discs. For deeper cultivation with a working depth of 25 cm (10") and longer blade life, choose the 76.2 cm discs. Notched blades provide good grip in heavy residues and better penetration ability, making them ideal for breaking new ground and working in moist conditions.
| 842N-10 | 842N-12 | 842N-14 | 842N-16 | 842N-18 | |
| Working width (m) | 3.5 | 3.9 | 4.4 | 4.9 | 5.5 |
| Number of bearings | 6F, 4R | 6F, 4R | 7F, 6R | 9F, 8R | 9F, 8R |
| Number of discs | 12F, 13R | 14F, 15R | 16F, 17R | 18F, 19R | 20F, 21R |
| Transport width (m) | 3.9 | 4.4 | 4.4 | 5.5 | 6 |
| Transport height (m) | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 |
| Weight per disc (kg) | 200 | 196 | 190 | 181 | 169 |
| Weight per foot (m) | 455 | 450 | 433 | 413 | 386 |
| Approx. weight (kg) | 5,003 | 5,693 | 6,273 | 6,677 | 6,916 |
| Draught requirement (hp) | 135-165 | 155-165 | 175-190 | 195-210 | 215-235 |
| Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering. |
| LS = Load sensing | FR = Free return | DA = Double acting | ||
| H = Hydraulic | P = Pneumatic |
