7.6-18.3 m
12.7 cm
17.8 cm
>155 hp

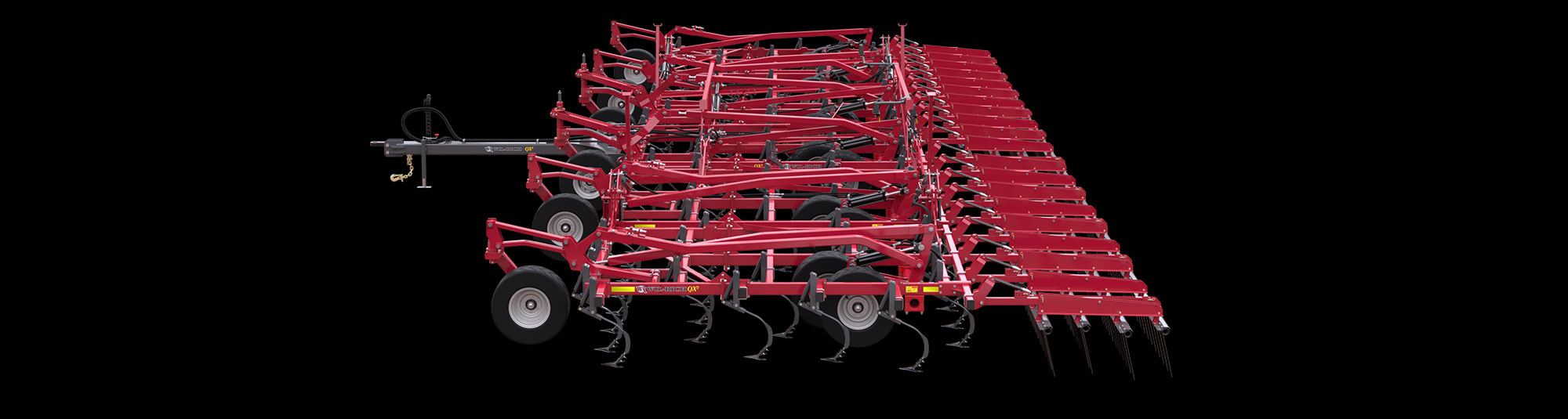

The Wil-Rich QX2 field cultivator stands out as the industry standard in secondary tillage, providing an exceptional finishing touch before high-speed planting. Designed for the most challenging field conditions, the QX2’s floating hitch delivers precise depth control on uneven terrain, promoting excellent germination and higher yields.
The Wil-Rich QX2 provides thorough tillage, making it an effective tool for mechanically removing weeds and reducing dependency on herbicides.
The Wil-Rich QX2 sets the stage for high yields by creating an optimal seedbed, which is critical to planter performance and even emergence.
Some herbicides and fertilisers must be incorporated at consistent depths to be most effective. The Wil-Rich QX2 design provides thorough mixing and precise depth keeping for best results.
A secondary tillage pass can be critical to achieving a levelled surface, smooth running of the sowing unit, and maximum effect of soil herbicides. It also helps in setting a perfect seedbed, ensuring even emergence, and controlling weed seedlings to avoid interspecific competition. Give your crop the best chance to succeed while reducing risks at the same time with the Wil-Rich QX2 field cultivator.
Tillage plays an important role in weed management, especially with the increase in herbicide resistance. The Wil-Rich QX2 excels at weed control, thanks to its split-the-middle tines pattern. This design ensures soil is tilled equally across the width of the implement, keeping escapes to a minimum and providing a clean seedbed to start the season.
Swipe to read more ⮕
A consistent seedbed provides a smooth planter ride, which is important for achieving proper seed depth, especially when planting at higher speeds. It also ensures each seed is planted in the exact same soil conditions so that they all emerge together. The tine pattern and finishing attachments on the Wil-Rich QX2 provide the ideal setup for creating the optimal seedbed.
Some herbicides must be incorporated at shallow depths to work effectively. Similarly, some fertilisers can be worked into the soil to be more accessible to plant roots, while reducing the risk of runoff. The hitch design, gauge wheels, and single-point depth control on the Wil-Rich field cultivator can help incorporate the herbicides and fertilisers at precise depths.
To achieve consistent results with a field cultivator, no strip of soil should be left untouched. The Wil-Rich QX2 split-the-middle tine pattern is configured to thoroughly work the ground. Tines on each rank work in the middle of the untilled area left by the preceding tines. This ensures consistent tillage across the width of the machine. It also eliminates residue windrowing and decreases plugging. Additionally, the design maximises sweep life and provides superior incorporation of fertiliser and chemicals.
A single-spring tine option is ideal for shallower working depths and finer tillage performance. It provides excellent ground following capabilities with 68 kg of trip pressure, which can be adjusted up to 90 kg for slightly deeper penetration.
The double-spring tine option is a better choice for tougher ground conditions or deeper tillage needs. It offers a pre-set downforce of 136 kg, which can be adjusted up to 181 kg. The extra down pressure ensures better penetration in hard-packed soil and is often used behind the tractor wheel tracks to remove compaction.
You need to accept cookies in order to view this feature. Click here to change your consent.
The Wil-Rich QX2 field cultivator is engineered with three or five sections that closely follow ground contours, even on wider models. This flexibility helps maintain consistent tillage depth in all conditions. It’s the go-to solution for farmers seeking exceptional performance in secondary tillage and preparation for high-speed farming. Designed for strength and versatility, the QX2 offers precise depth control with its floating hitch, making it ideal for uneven terrain.
The Wil-Rich QX2 field cultivator comes with a floating A-frame hitch as standard, but you can opt for a floating T-frame hitch for enhanced manoeuvrability. The Wil-Rich QX2 has been meticulously engineered with lighter frames, allowing earlier access to your fields, even in challenging wet conditions.
The reliable A-hitch is the standard hitch style on the Wil-Rich QX2. It includes a weight transfer kit, which shifts weight onto the hitch to improve towing stability.

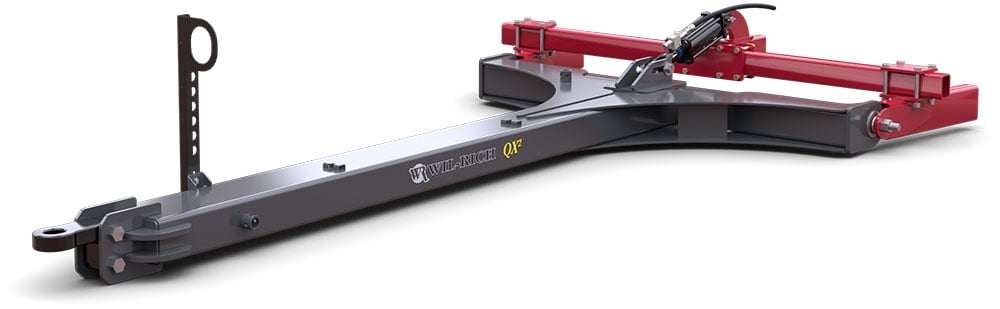

The T-hitch option allows for a tighter turning radius, since the narrower profile provides extra clearance between the hitch and rear tractor wheels. Like the A-hitch, it has a weight transfer kit that shifts weight onto the hitch for improved towing stability.
The T-hitch is only available for five-section models with a 4 m mainframe.
You need to accept cookies in order to view this feature. Click here to change your consent.
Discover the strengths and features of Wil-Rich QX2 field cultivator. Watch the video now to learn more about what makes Wil-Rich QX2 unique.
An open design of the caster gauge wheels on the Wil-Rich field cultivator helps prevent them from negatively affecting tillage performance. As a result, operators experience minimised plugging with greater stability both in the field and on the road. Even more, they offer easy maintenance, so more time can be spent in the field.
Need to adjust the tillage depth on the fly? Single-point depth control allows operators to adjust the working depth for the entire implement from a single location, instead of having to make manual adjustments at each gauge wheel. This feature can save a lot of time when fine-tuning tillage depth. It also means operators are more likely to make the adjustments needed to achieve the desired tillage results.
Four finishing attachment options are available to accommodate a variety of field conditions and personal preferences. Each option offers unique benefits in helping create the ideal seedbed.
The Wil-Rich QX2 is designed to maintain consistent tillage depth, despite fluctuations in the ground contour. This is made possible through the floating hitch, which pivots freely at the implement to help the field cultivator follow uneven terrain. Two floating hitch styles are available on the QX2 to meet the needs of different farming operations: an A-hitch and a T-hitch.

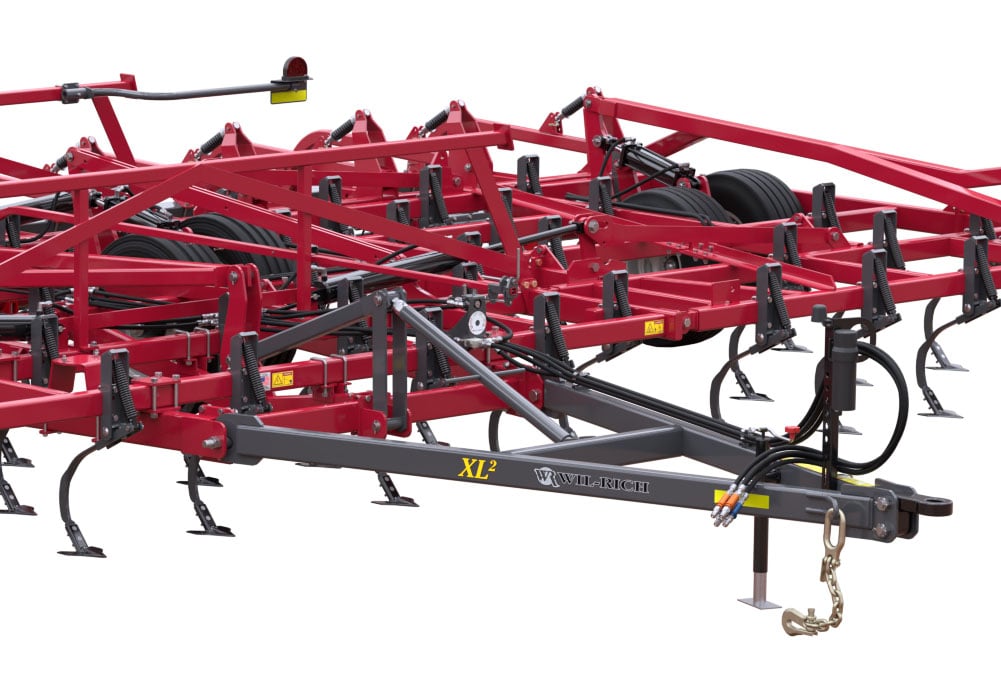

The main difference between the QX2 and XL2 models is the hitch type. XL2 models are equipped with the field-proven, time-tested level lift hitch, which allows weight transfer to the tractor. Designed for level field conditions, this hitch type creates a planter-ready seedbed.
The cultivator features 17 cm (7 in) tine spacing arranged in 5 ranks, with the "split-the-middle" tine pattern ensuring consistent tillage across the machine's width. The edge-formed C-tines allow for maximum residue flow and are available with single or double spring cushions.
Spike point
Spike point, 1/4 x 2 x 11 inch (50 mm).

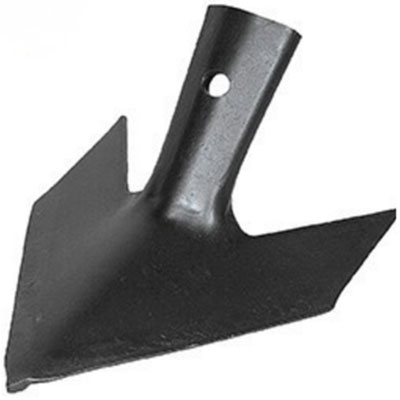

Sweep point 7 inch
Sweep point, 7 x 1/4 inch, 47° (228 mm)

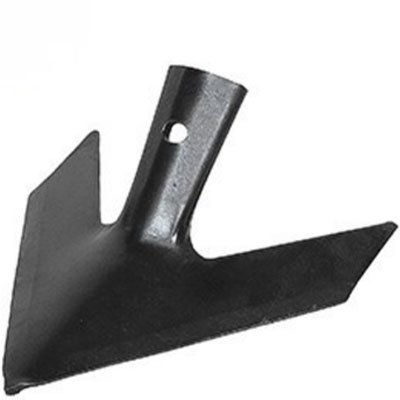

Sweep point 9 inch
Sweep point, 9 x 1/4 inch, 47° (228 mm)
Single spring
Pre-set at 68 kg (150 lbs) of trip pressure, the single spring can be adjusted up to 181 kg (400 lbs).
Double spring
Pre-set at 136 kg (300 lbs) of trip pressure, the double spring can be adjusted up to 181 kg (400 lbs).
Finishing attachments level the soil profile and create a planter-ready seedbed. Four types of attachments are available to meet the needs of various operations and soil conditions.
3-bar coil tine harrow w/ rolling basket (round bar)
Three rows of 1.1 x 46 cm tines level the soil profile and distribute residue, while the basket reduces clod size and firms the seedbed. This is the best alternative for intensive reconsolidation and clod crushing on light soils, ensuring maximum efficiency of seedbed preparation. Basket pressures are adjustable and range up to 149 kg/m. A hydraulic lift option is available for the basket on all 13-foot main frame Wil-Rich QX2 and XL2 field cultivators. It gives operators the ability to lift the rolling basket when it is not desirable to use it, such as when conditions are muddy or there’s a wet spot in the field.
3-bar coil tine harrow w/ rolling basket (flat bar)
Three rows of 1.1 x 46 cm tines level the soil profile and distribute residue, while the basket crushes clods intensively on medium and heavy soils. It provides plant residue distribution during stubble cultivation and operates in wet conditions. Basket pressures are adjustable and range up to 149 kg/m. A hydraulic lift option is available for the basket on all 13-foot main frame Wil-Rich QX2 and XL2 field cultivators. It gives operators the ability to lift the rolling basket when it is not desirable to use it, such as when conditions are muddy or there’s a wet spot in the field.
4-Bar Coil Tine Harrows
The 1.1 x 46 cm tine harrows help distribute residue, break up small clods, and level the soil profile, helping to create a perfect, planter-ready seedbed. Front-to-rear levelness and tine pitch are easily adjusted to achieve the desired field finish and aeration of the soil layer. The four-bar harrow offers 7 cm spacing.
5-Bar Spike Tooth Harrow
Five bars of 1.9 x 28 cm spike teeth harrow drag behind the field cultivator to create a smooth, level field finish. They level residue and reduce clod size with increased throughflow, providing the most intensive clod crushing and surface levelling. When levelling mouldboard ploughing, they form a field surface that helps prevent evaporation.
| 13QX2 32 | 13QX2 32-34 | 13QX2 32-42 | 13QX2 32-45 | 13QX2 37 | |
| Number of tines | 55 | 59 | 73 | 77 | 63 |
| Cutting width (m) | 6.4 | 10.5 | 13 | 13.7 | 11.2 |
| Inner wing (m) | 2.8 | 2.8 | 2.8 | 2.8 | 3.6 |
| Outer wing (m) | - | - | 1.5 | 1.8 | - |
| Number of tires | 12 | 12 | 14 | 14 | 12 |
| Transport width (m) | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
| Transport height (m) | 3.9 | 4.2 | 4.1 | 4.1 | 4.5 |
| Weight* (kg) | 6123 | 6214 | 7394 | 7484 | 6486 |
| Draught requirement (hp) | 225-290 | 235-300 | 245-375 | 315-405 | 260-335 |
| 13QX2 37-42 | 13QX2 37-50 | 13QX2 46-50 | 13QX2 55 | 13QX2 55-60 | |
| Number of tines | 73 | 85 | 87 | 95 | 103 |
| Cutting width (m) | 13 | 15.1 | 15.5 | 16.9 | 18.3 |
| Inner wing (m) | 3.6 | 3.6 | 2.8 | 3.6 | 3.6 |
| Outer wing (m) | - | 1.8 | 2.1 | 2.8 | 2.8 |
| Number of tires | 12 | 14 | 18 | 18 | 18 |
| Transport width (m) | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
| Transport height (m) | 4.7 | 4.7 | 4.1 | 4.7 | 4.7 |
| Weight* (kg) | 7484 | 7847 | 9299 | 9798 | 9979 |
| Draught requirement (hp) | 295-375 | 350-450 | 350-450 | 385-495 | 425-540 |
*Approx weight: (number of tines x tine weight).
