7-11.7 m
19.1 cm
>275-500 hp
27.9 cm

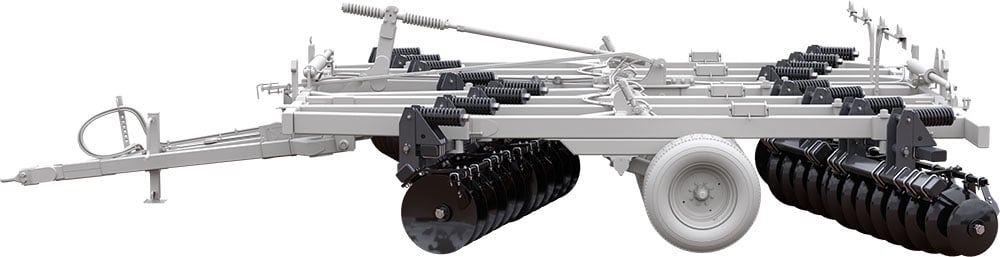

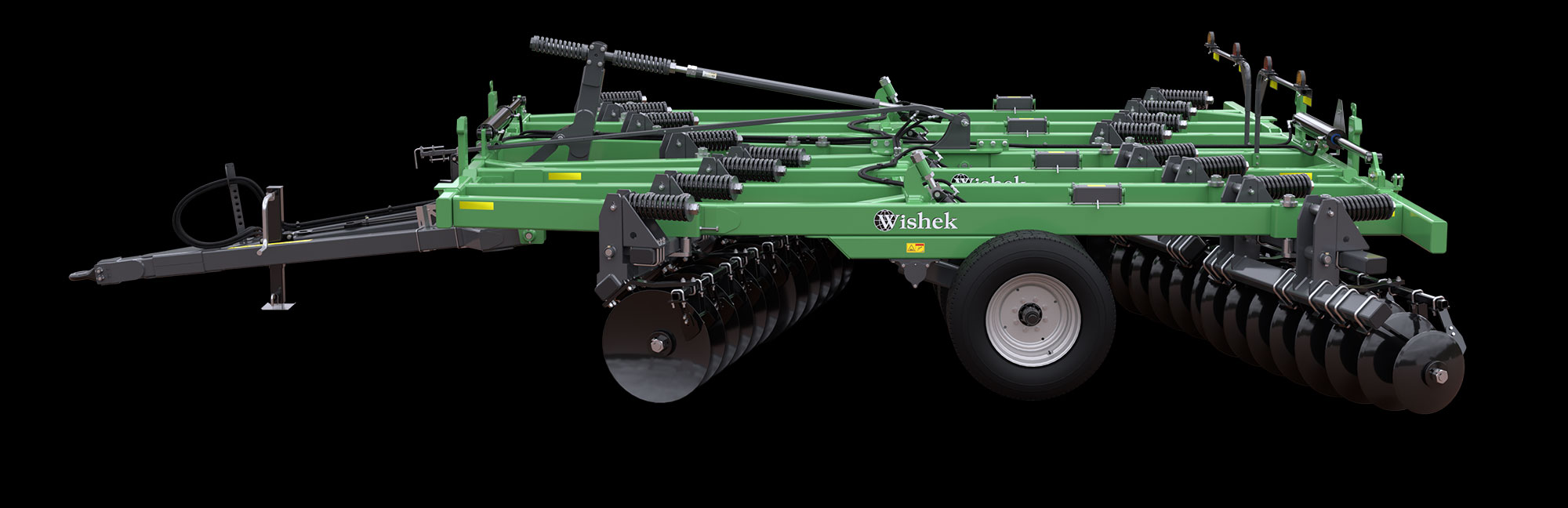

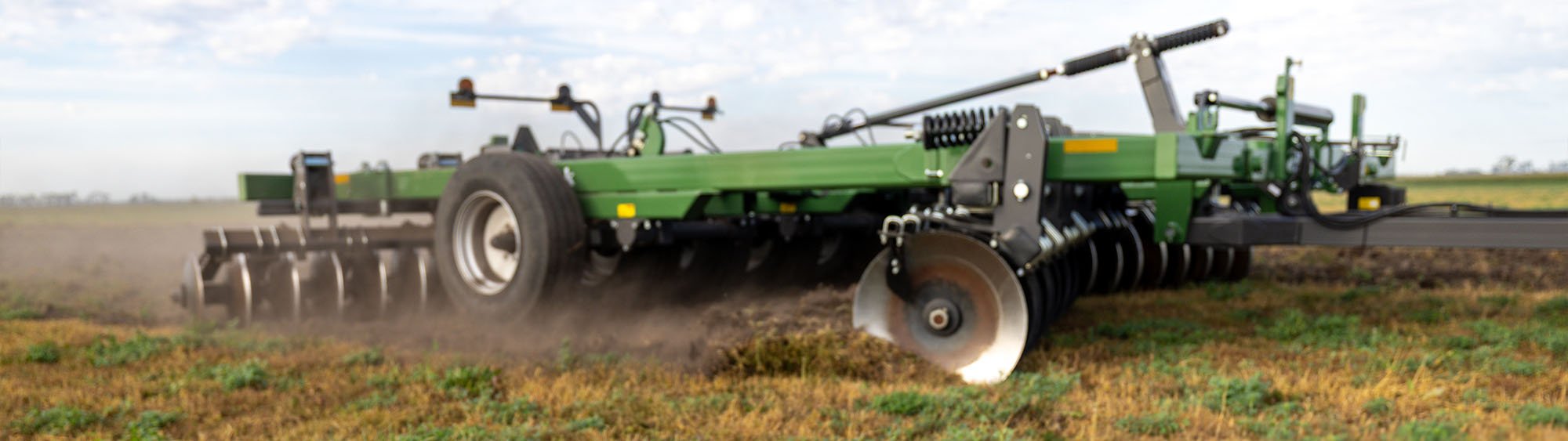

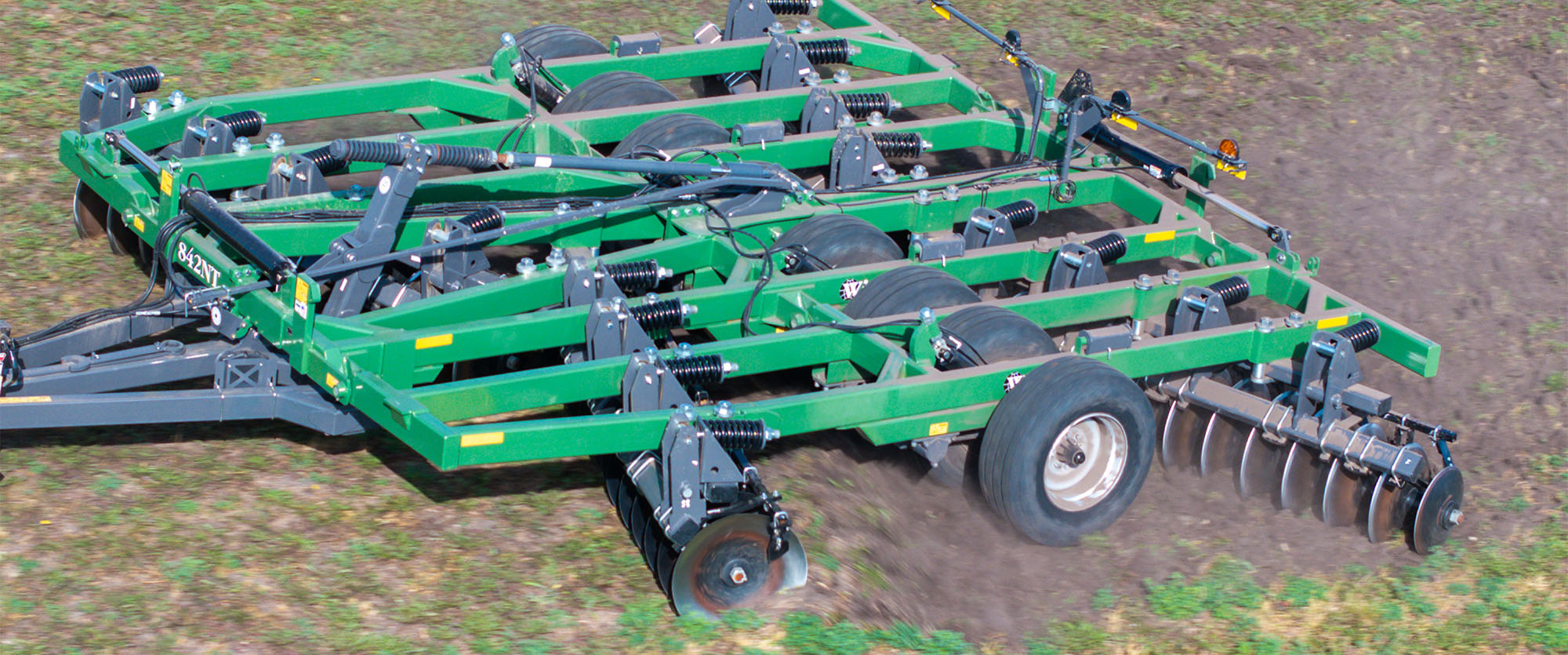

The Wishek 842NT is a heavy tandem disc with 28 cm (11") disc spacing to penetrate hard ground conditions and manage heavy residue. The large concave discs mix high volumes of soil to create excellent soil-to-residue contact for fast decomposition. The heavy-duty construction provides outstanding durability for years of reliable use in tough conditions.

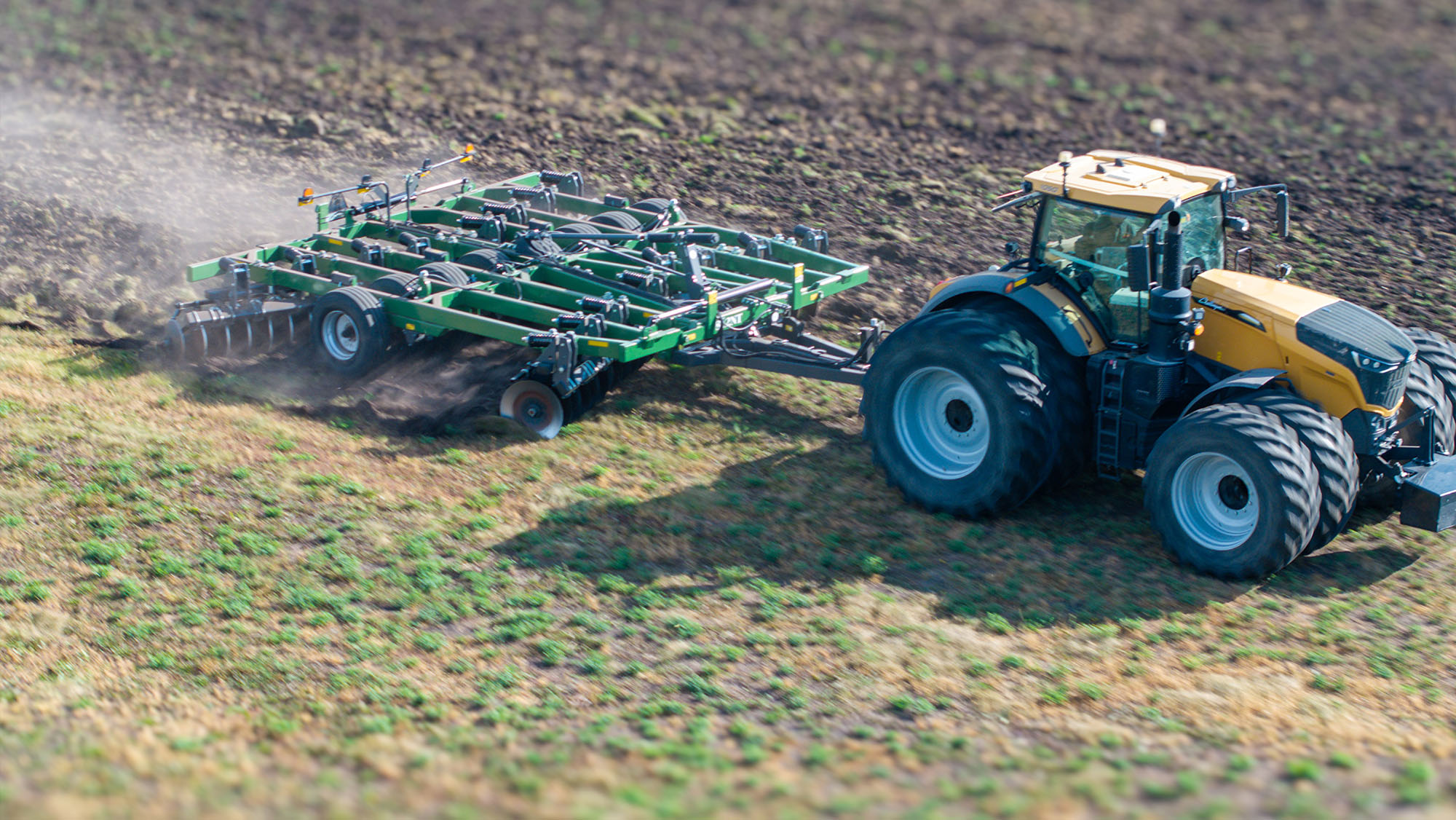

Seedbed preparation can be made easier in the spring by running the Wishek 842NT as a primary tillage pass in the fall.
The Wishek 842NT offers excellent mixing performance to incorporate large amounts of residue for fast decomposition.
Large concave disc blades on the Wishek 842NT are designed for superior cutting and mixing performance to help create better tilth in hard, heavy soils.
A post-harvest tillage pass is essential for preparing a superior seedbed in the spring and establishing a strong foundation for operational performance throughout the year. Give your crop the best chance to thrive while mitigating risks at the same time.

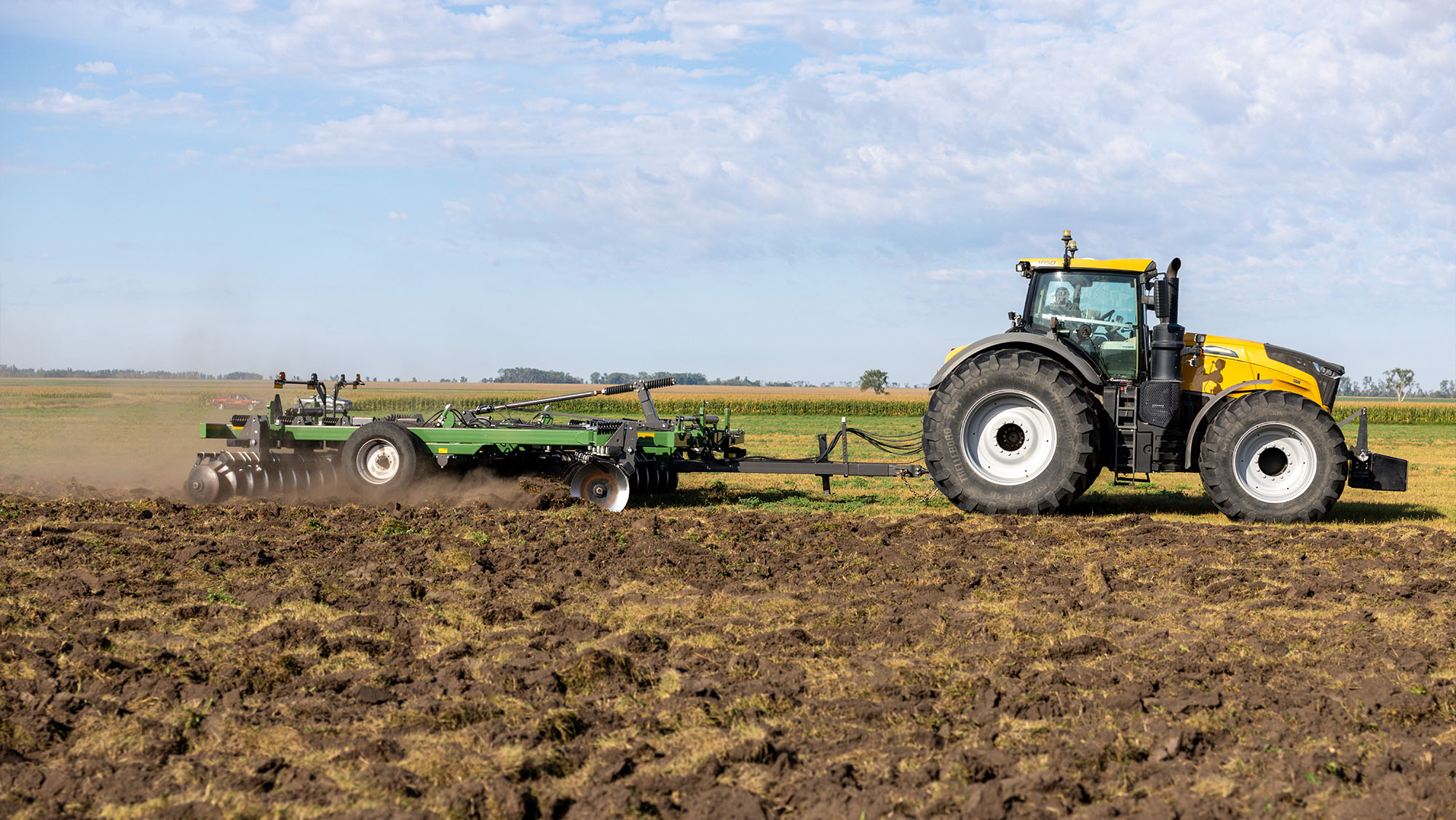

The Wishek 842NT helps create an ideal seedbed by cutting and mixing the upper soil profile in the fall, incorporating heavy residue for fast decomposition, and managing the soil profile in heavier soils. Its heavy weight and blade spacing ensure thorough soil mixing and penetration in tough conditions.
Swipe to read more ⮕

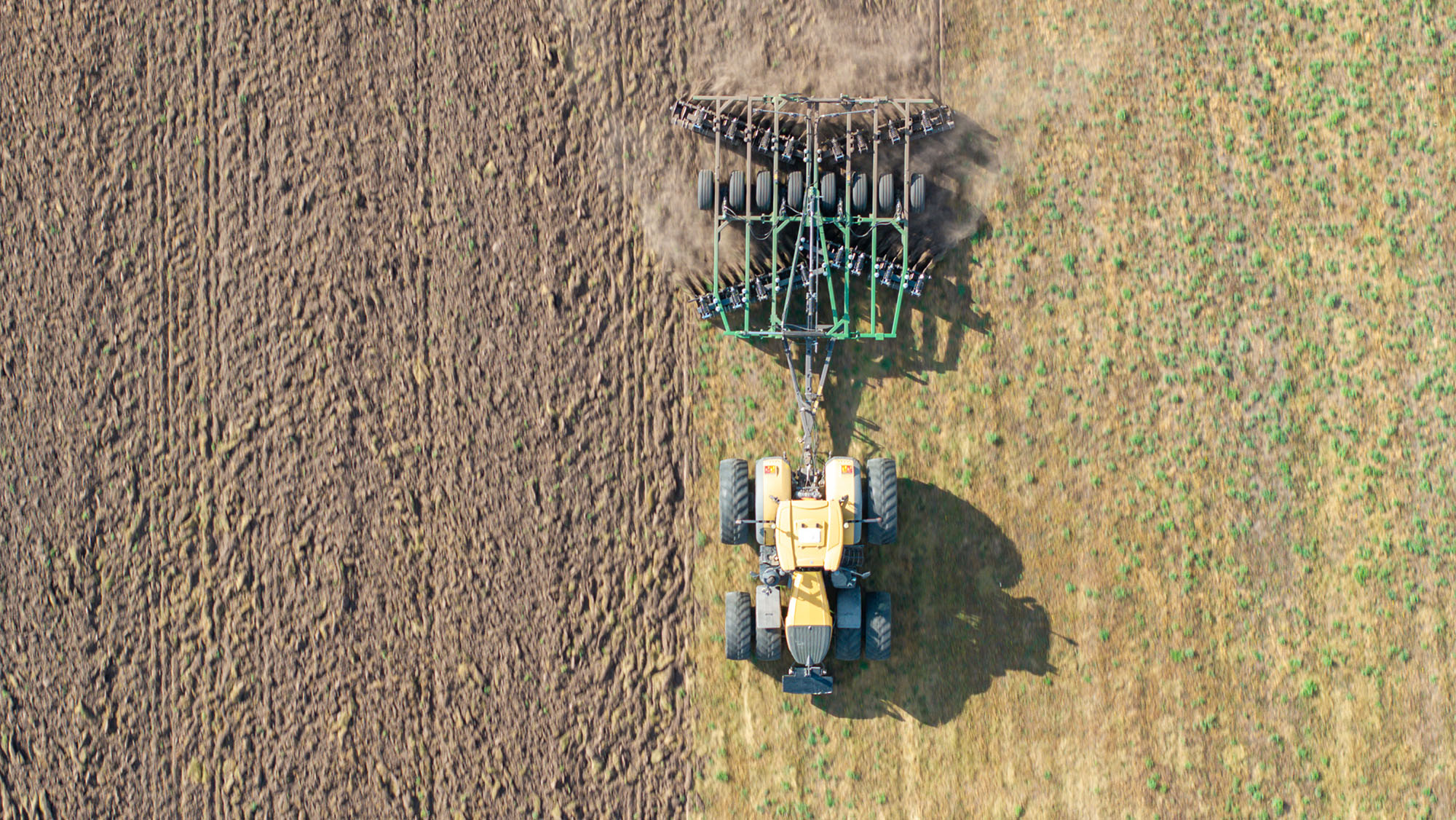

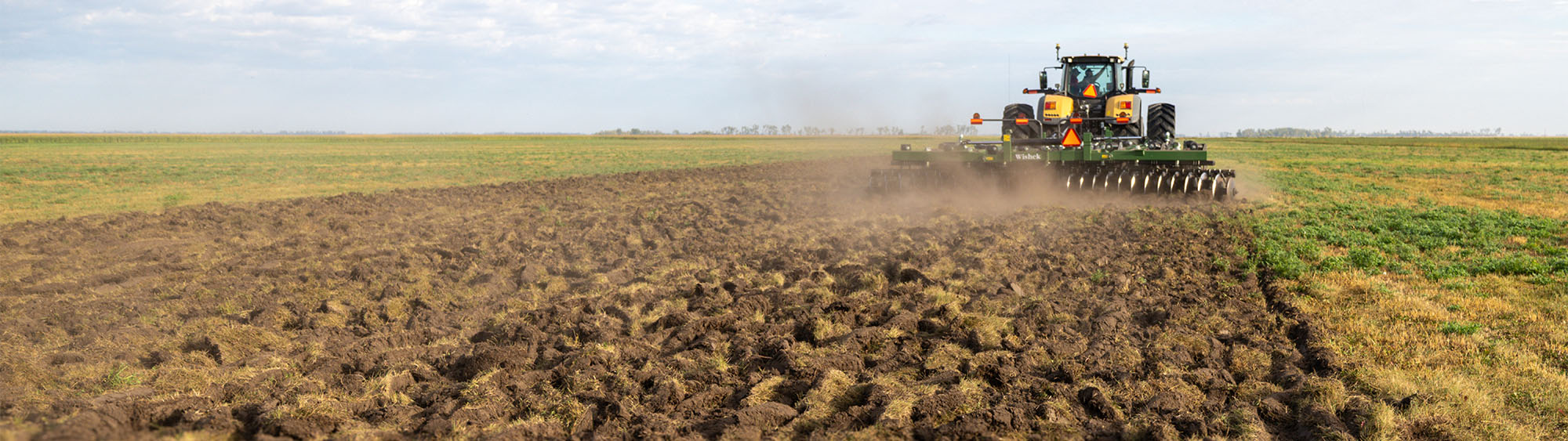

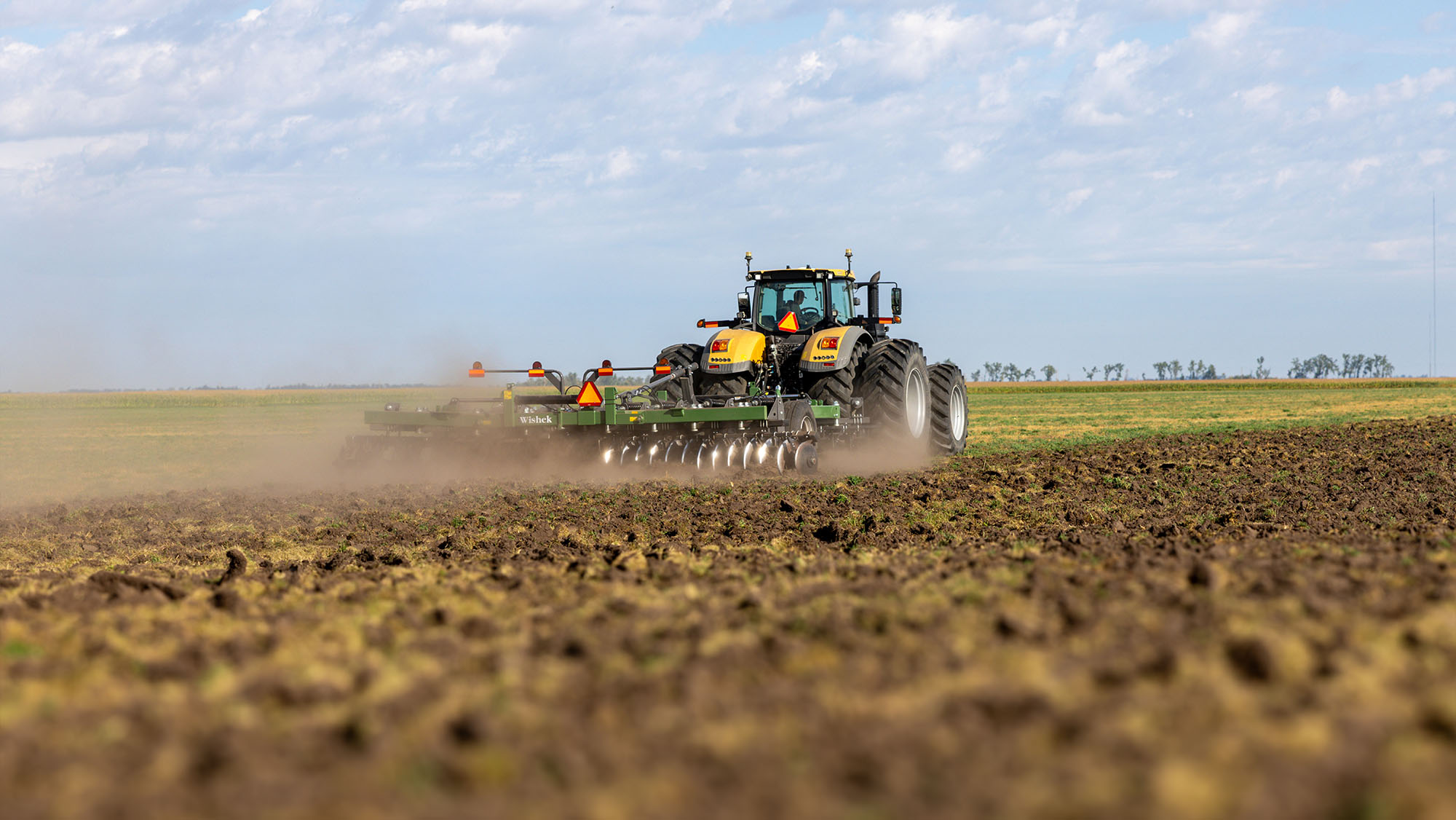

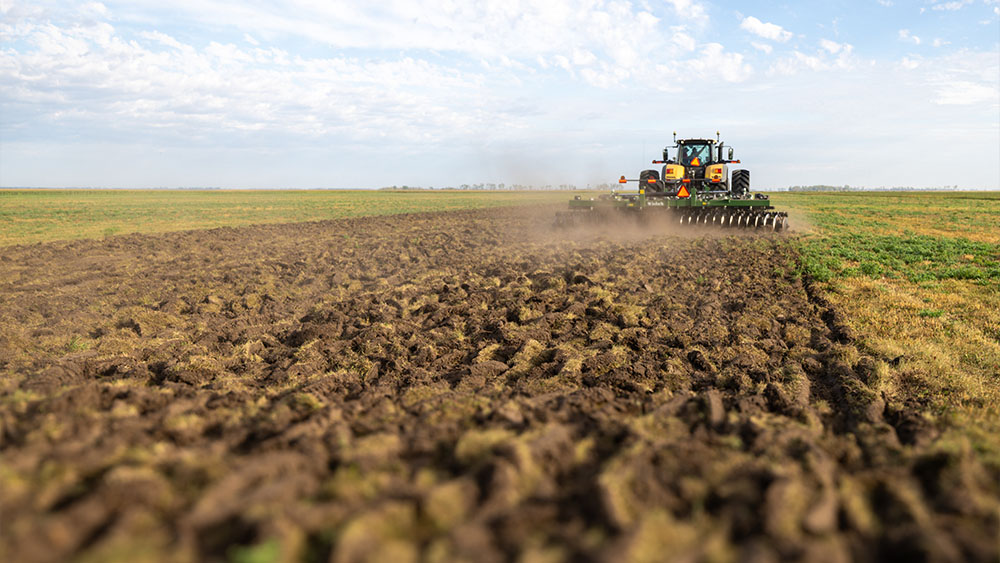

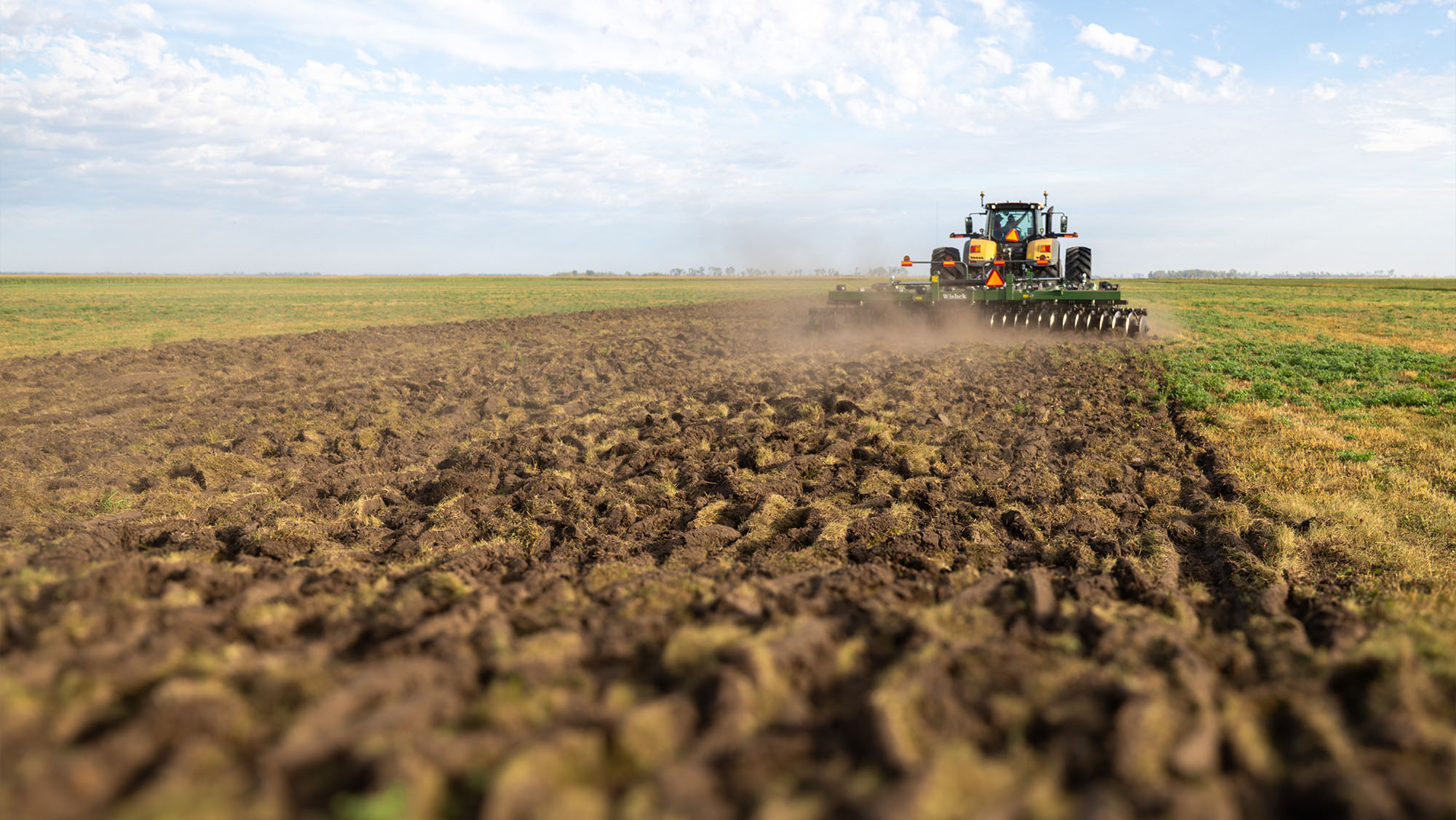

The Wishek 842NT can be used in the fall to cut and mix the upper soil profile and incorporate residue for fast decomposition. It produces larger clod sizes that help to catch moisture and resist wind erosion over the winter. In the spring, the field can be worked more easily with a secondary tillage pass to create an ideal seedbed.

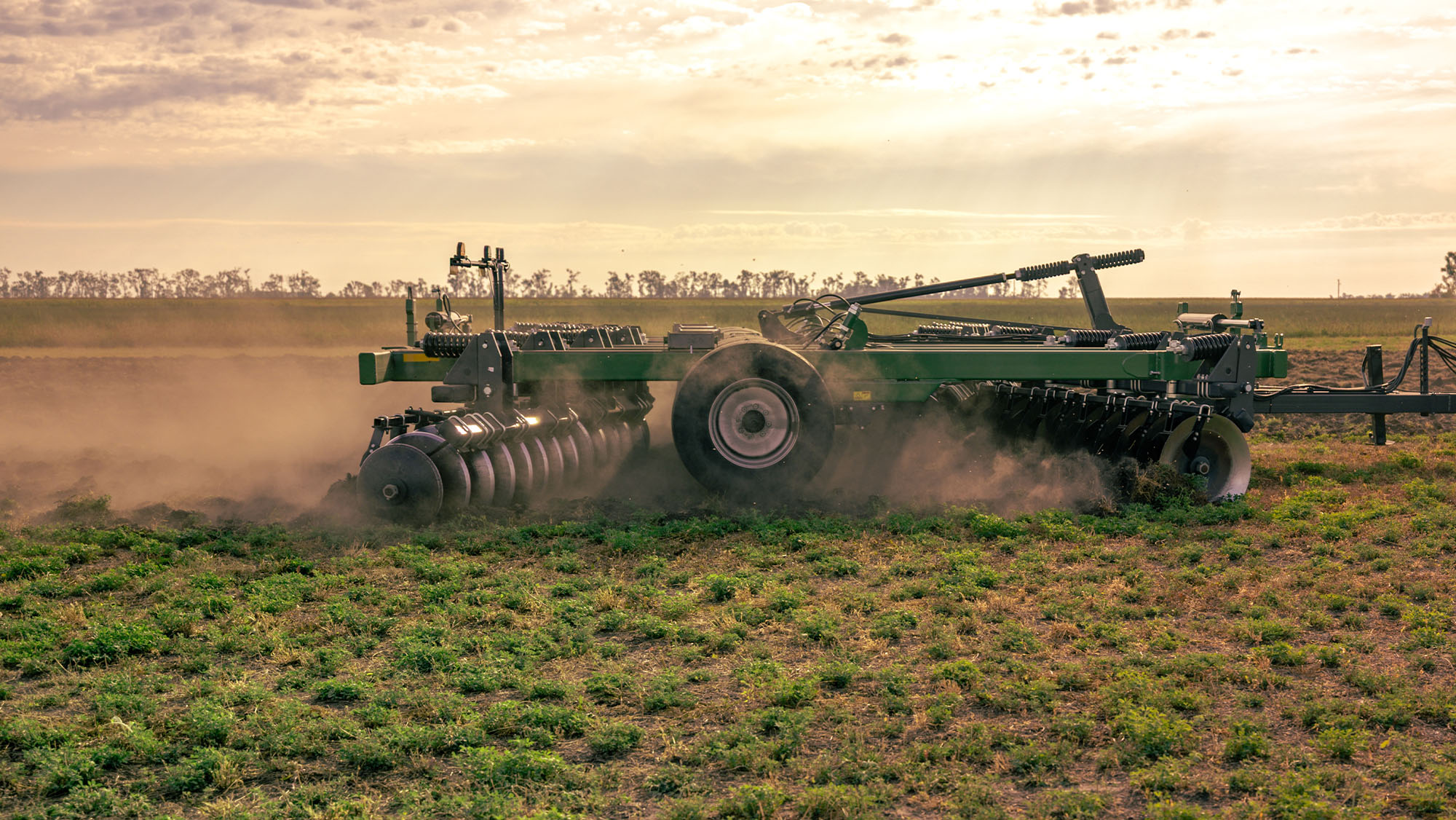

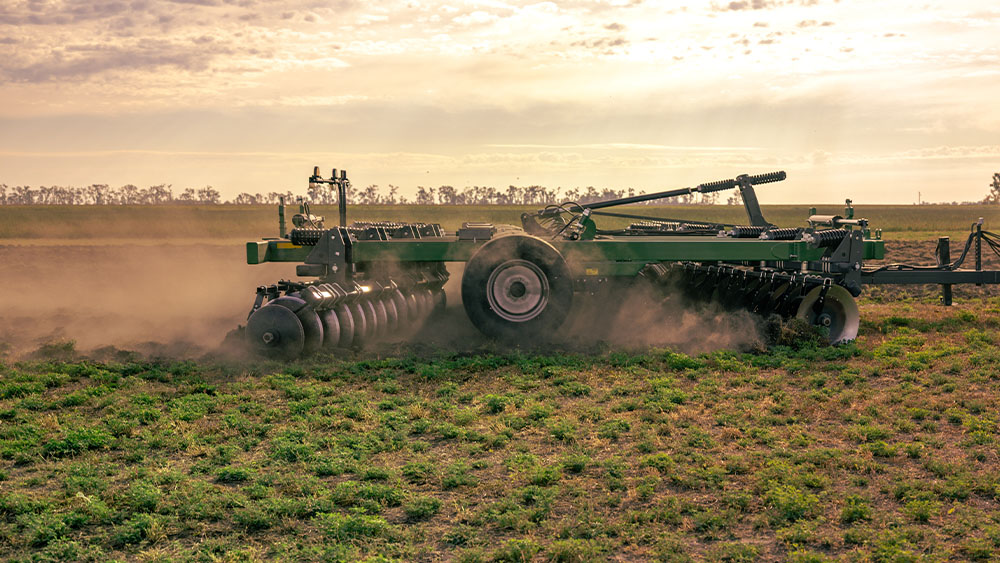

The heavy weight and high strength of the Wishek 842NT allow it to penetrate and maintain depth in some of the toughest ground conditions. This helps it mix large amounts of soil, incorporating heavy residue with excellent soil-to-residue contact. Soil microbes can then work more effectively, decomposing the residue at a faster rate.
Farmers with heavier soils may benefit from using a heavy disc to cut and mix the upper soil profile, creating better tilth. The Wishek 842NT offers approximately 1,488 kg/m (1,000 lbs/ft) of implement to help penetrate hard soils. It also has 28 cm (11") blade spacing, designed to provide thorough soil mixing to achieve this tillage objective.

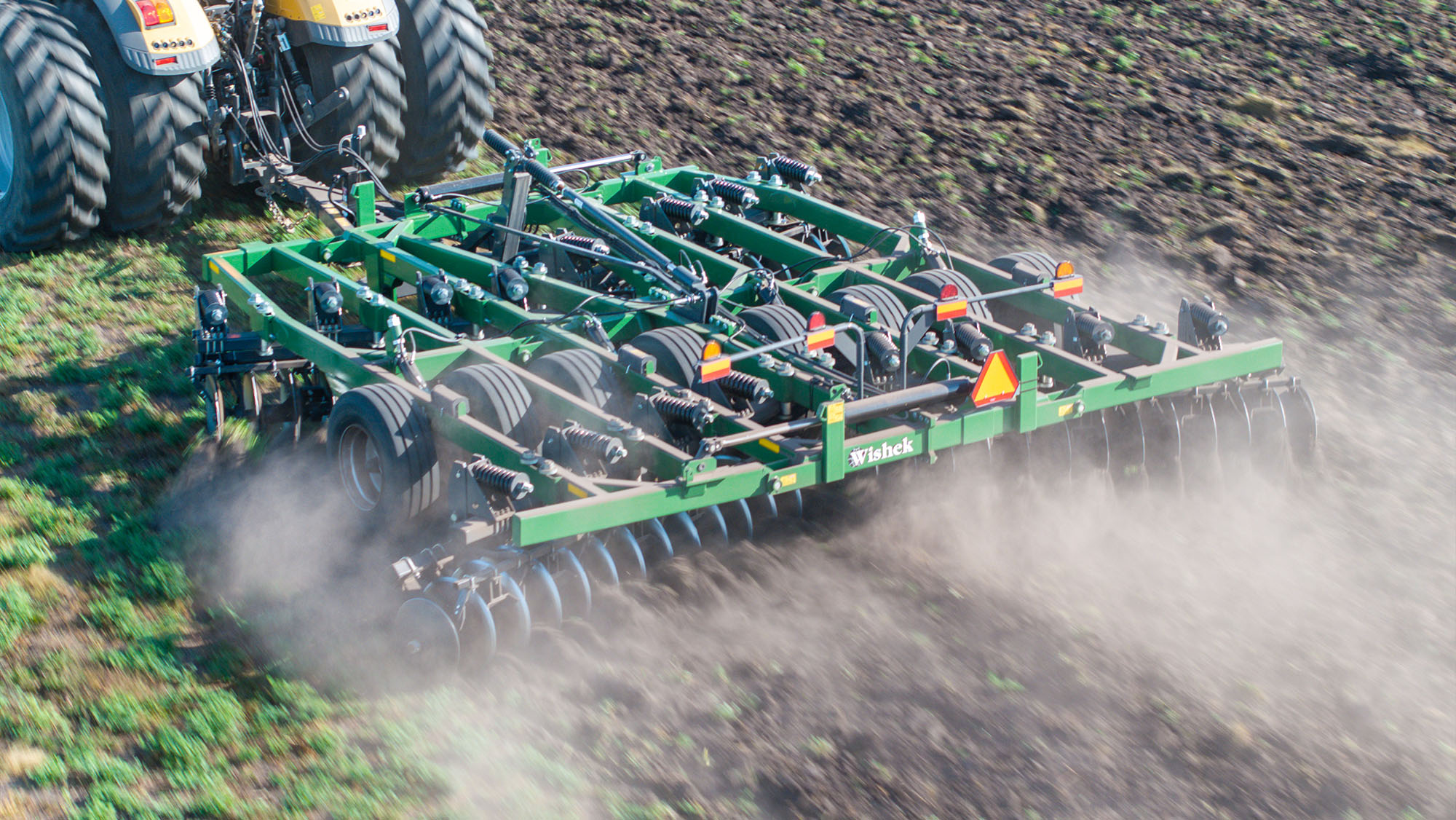

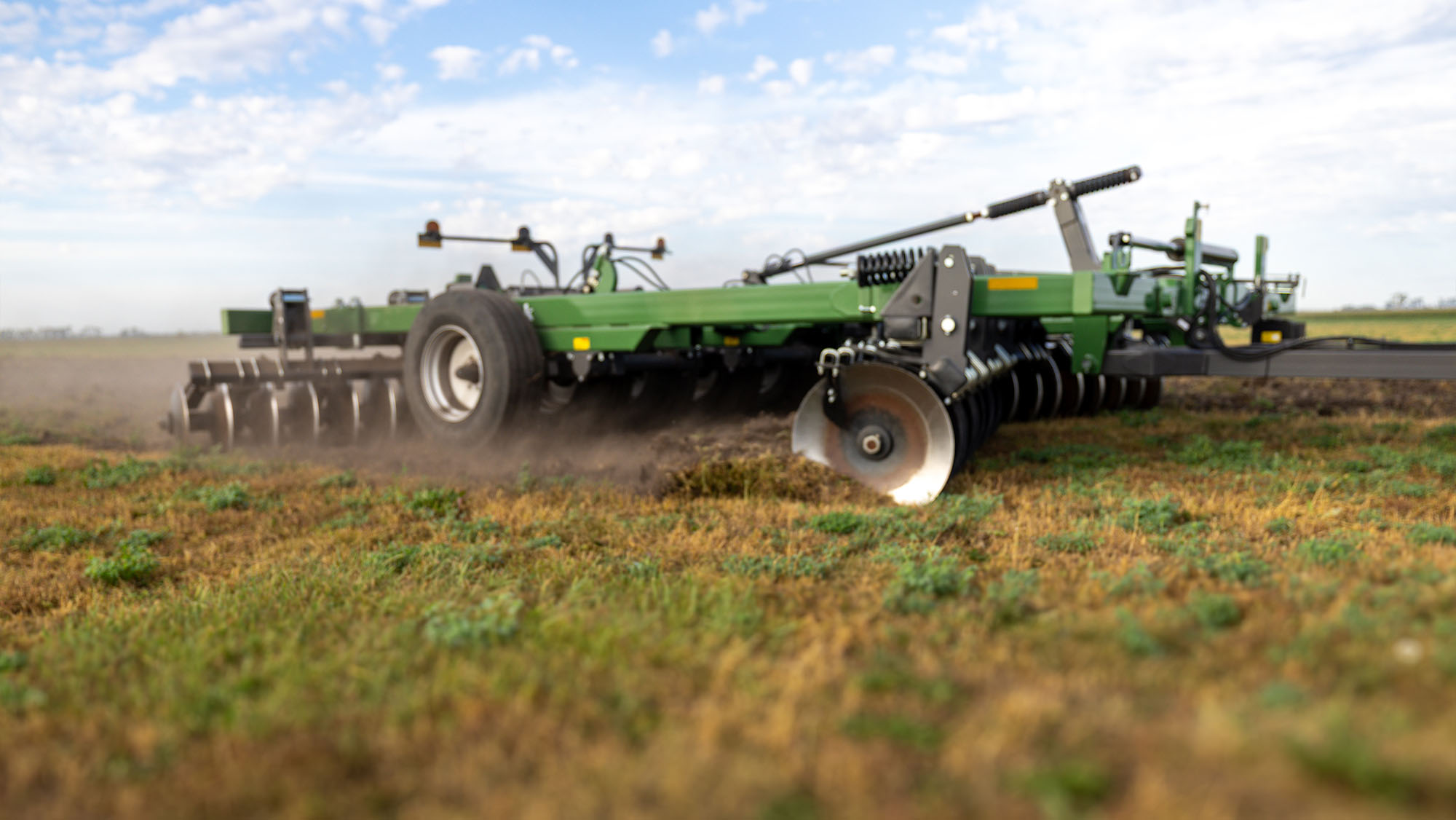

The Wishek 842NT tandem disc is designed to excel in challenging soil conditions, offering industry-leading weight and large concave discs for superior performance. Its heavy build allows it to penetrate hard ground and manage heavy residue, while the large discs ensure thorough soil mixing and optimal tillage depth.
The Wishek 842NT weighs approximately 1,488 kg/m (1,000 lbs/ft) of implement. This allows it to penetrate hard ground and heavy residue conditions. It can also maintain depth well to help ensure consistent tillage results.

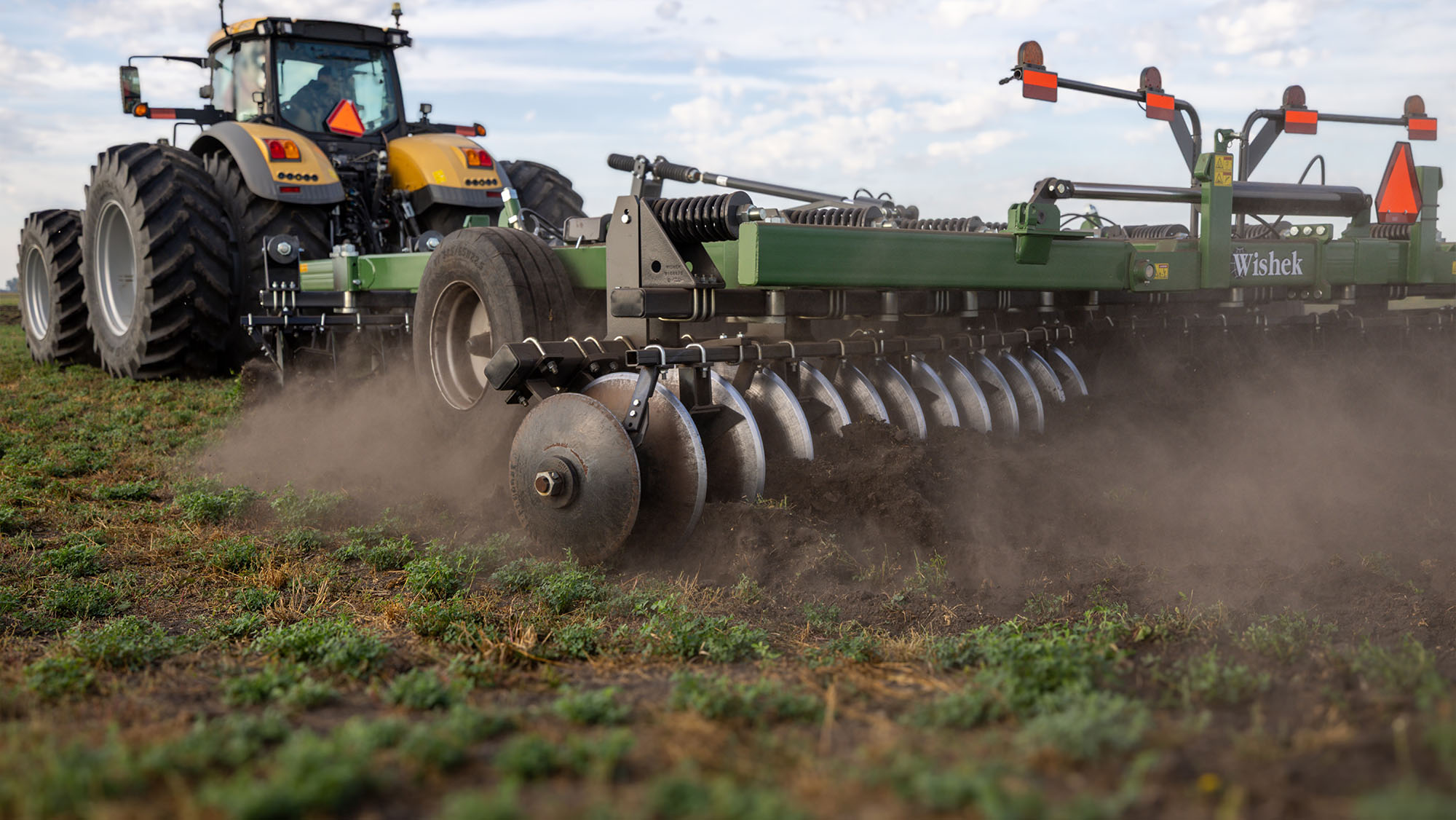

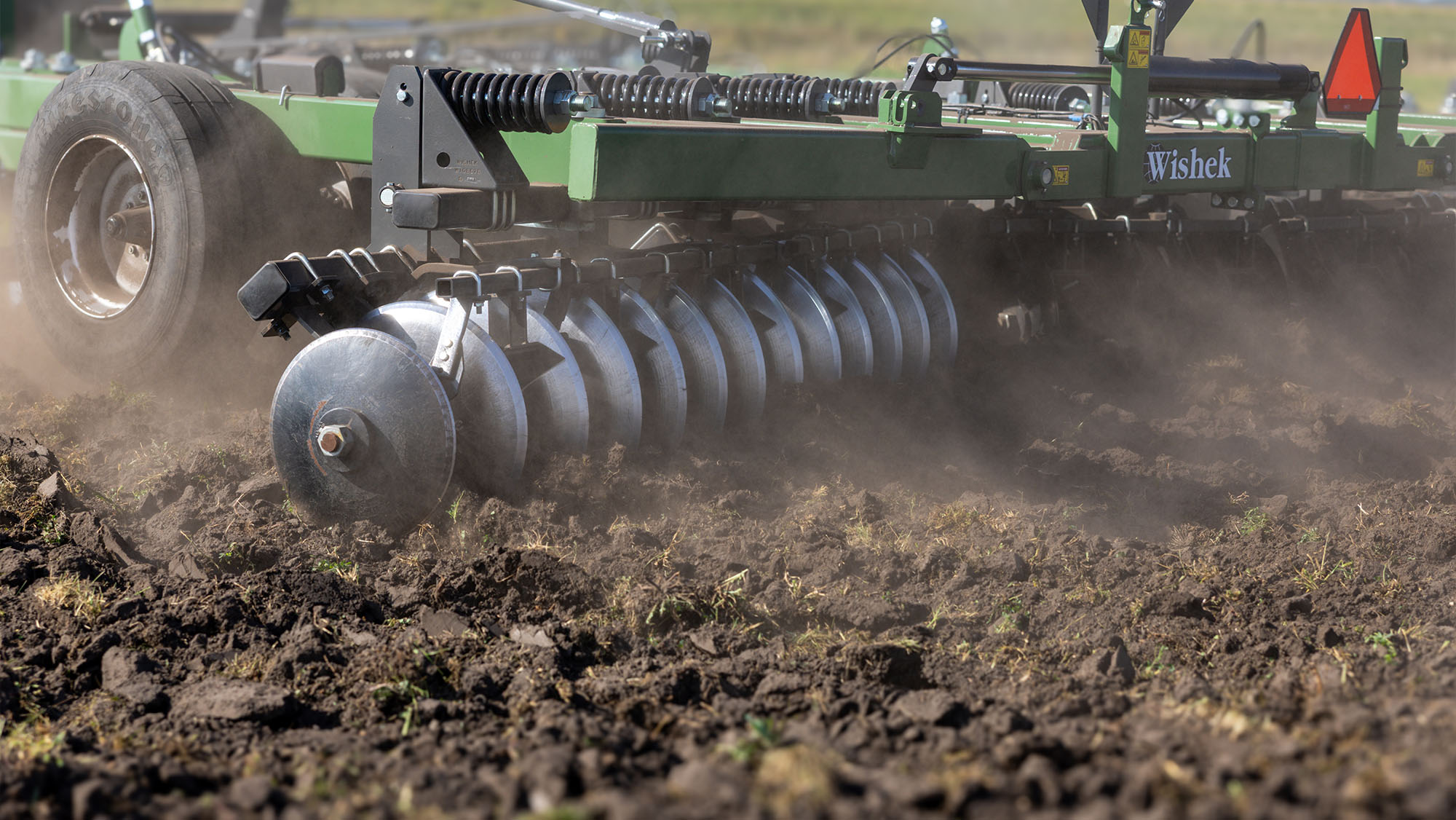

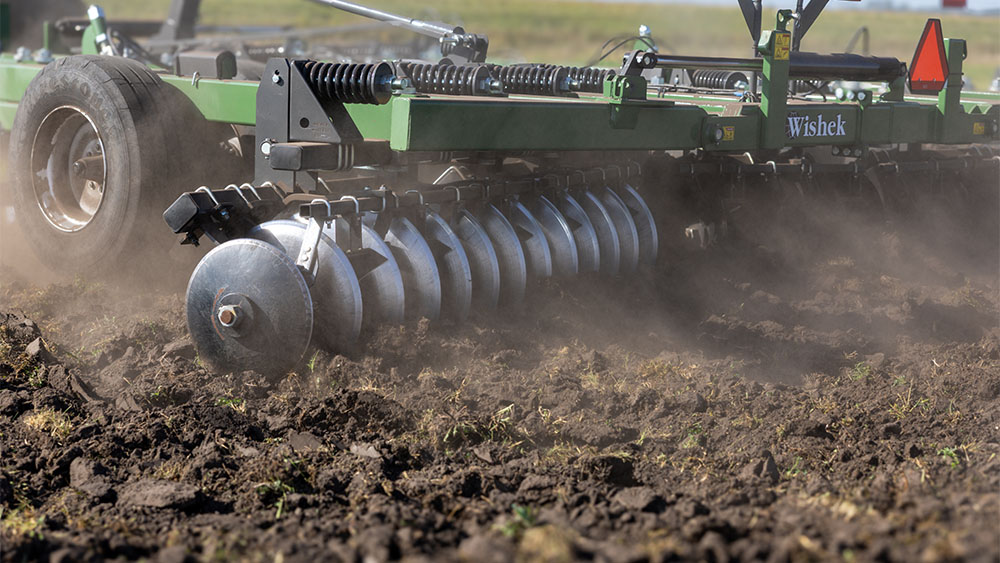

The Wishek 842NT can be equipped with 71 cm (28") or 76 cm (30") concave discs. The large diameter helps to mix high volumes of soil at depths up to 19.1 cm (7.5"). Smooth and notched blade options are available. The notched option offers better cutting performance when sizing heavy residue or slicing into hard ground.
You need to accept cookies in order to view this feature. Click here to change your consent.
Discover the strengths and features of Wishek 842NT tandem disc. Watch the video now to learn more about what makes Wishek 842NT unique.
The Wishek 842NT Tandem Disc is equipped with specialised scrapers to prevent mud build-up, ensuring consistent operation in demanding conditions. Additionally, the disc offers convenient levelling options with manual or hydraulic systems, enhancing ease of use and operational efficiency.
Specialised scrapers on the Wishek 842NT clean mud build-up from the discs, bearings, and spools, keeping them running clean and ensuring optimal tillage performance.

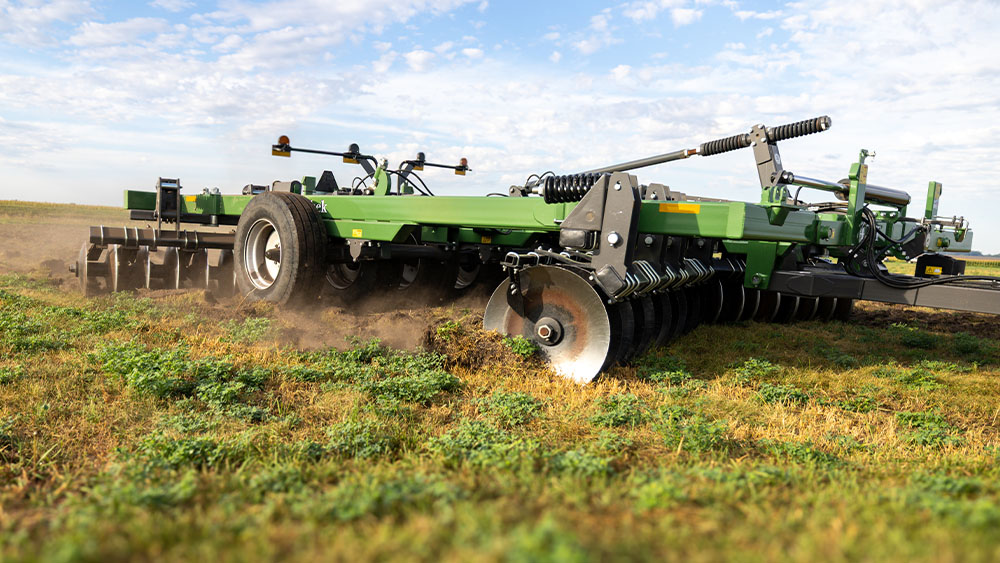

To adjust the level from front to rear, the Wishek 842NT comes with a manual levelling screw, offering easy adjustment. For added convenience, an optional hydraulic system allows operators to make this adjustment from the cab.

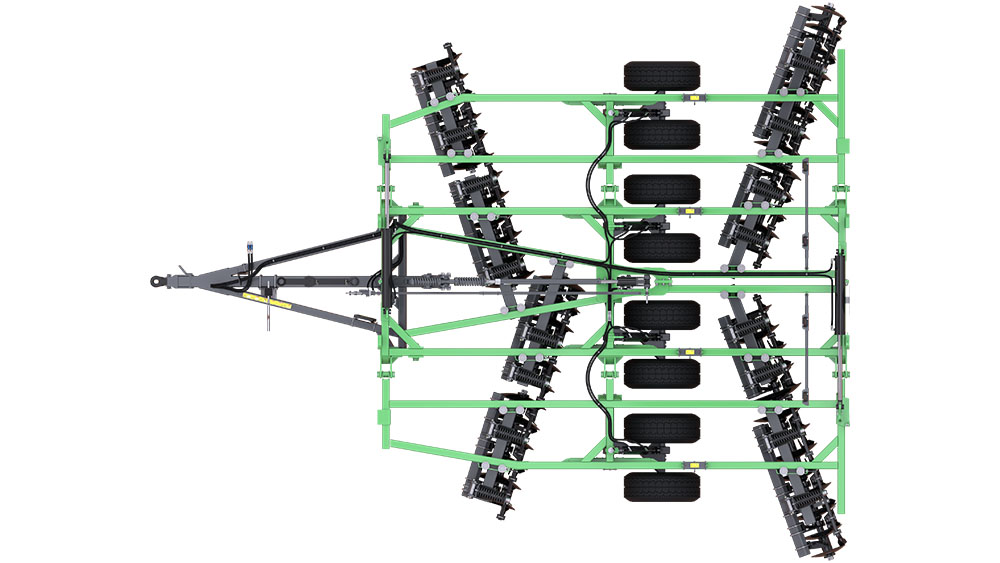

The Wishek 842NT tandem disc features spring-cushioned gangs that protect the disc from damage by allowing discs to move and avoid solid objects. Additionally, the rear feathering discs ensure an even soil profile by eliminating ridges created by the front gangs, resulting in a uniform and precise soil finish.
Spring-cushioned gangs on the Wishek 842NT help prevent damage when the discs strike a rock or other foreign object. The gangs can move 152 mm (6") rearward and upward for a total travel of 305 mm (12"). This flexibility helps prevent costly downtime and repairs.
The Wishek 842NT has rear feathering discs that smooth out the ridges created by the front gangs. They help create a level soil profile, making seedbed preparation easier in the spring.
Optional single-point depth control allows operators to precisely adjust depth for the entire implement from one location. This eliminates the need for manual adjustments at each gauge wheel, saving time and effort.
A rear hitch allows operators to pull finishing tools behind the Wishek 842NT, if desired. Hydraulic and electronic extension packages are available for controlling any added tools.

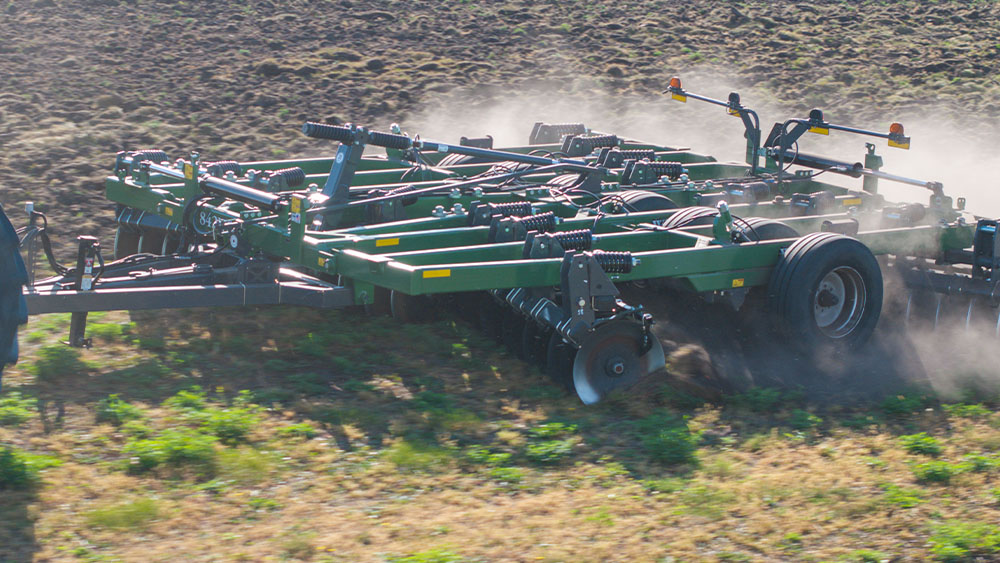

The Wishek 842NT's 4 x 8 x 1 cm tubular welded frame offers exceptional durability and the necessary weight to penetrate tough ground. This robust construction ensures the disc's longevity and reliable performance.
Are you looking for a machine with larger disc spacing for deeper soil penetration? The Wishek 862NT, with its 33 cm disc spacing and 76.2 cm discs, is designed to tackle tough soil conditions and manage heavy residue efficiently.
Concave disc blades are designed to mix soil and residue efficiently. The implement’s heavy frame helps penetrate hard ground and maintain consistent tillage depth, even in the most challenging applications.
Smooth concave disc
Smooth concave discs are available in two sizes: 71.1 cm (28") and 76.2 cm (30"). For a working depth of 23 cm (9") and better soil penetration, opt for the 71.1 cm discs. For deeper cultivation with a working depth of 25 cm (10") and longer blade life, choose the 76.2 cm discs. Plain blades are the best option for a smooth cut, making them ideal for finishing already worked soil.
Notched concave disc
Notched concave discs are available in two sizes: 71.1 cm (28") and 76.2 cm (30"). For a working depth of 23 cm (9") and better soil penetration, opt for the 71.1 cm discs. For deeper cultivation with a working depth of 25 cm (10") and longer blade life, choose the 76.2 cm discs. Notched blades provide good grip in heavy residues and better penetration ability, making them ideal for breaking new ground and working in moist conditions.
A rear hitch allows operators to pull a finishing tool, if desired, to help break up clods and level the soil profile.
| 842NT-22F | 842NT-24F | 842NT-26F | 842NT-30F | |
| Working width (m) | 7 | 7.5 | 8 | 9.1 |
| Number of bearings | 12F, 10R | 12F, 10R | 12F, 12R | 14F, 14R |
| Number of discs | 24F, 26R | 26F, 28R | 28F, 30R | 32F, 34R |
| Transport width (m) | 4.2 | 4.2 | 4.5 | 5.2 |
| Transport height (m) | 3.9 | 4.1 | 4.3 | 4.7 |
| Weight per disc (kg) | 247 | 234 | 227 | 216 |
| Weight per foot (kg) | 541 | 514 | 500 | 480 |
| Approx. weight (kg) | 12354 | 12629 | 13165 | 14280 |
| Draught requirement (hp) | 275-300 | 295-320 | 315-340 | 360-390 |
| 842NT-34F | 842NT-38F | |||
| Working width (m) | 10.1 | 11.7 | ||
| Number of bearings | 16F, 18R | 18F, 20R | ||
| Number of discs | 36F, 38R | 42F, 44R | ||
| Transport width (m) | 4.8 | 4.8 | ||
| Transport height (m) | 4.8 | 5.4 | ||
| Weight per disc (kg) | 231 | 245 | ||
| Weight per foot (kg) | 515 | 522 | ||
| Approx. weight (kg) | 17117 | 20094 | ||
| Draught requirement (hp) | 400-430 | 460-500 |
| Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering. |
| LS = Load sensing | FR = Free return | DA = Double acting | ||
| H = Hydraulic | P = Pneumatic |
