Väderstad Rollex 620 in field
» Tillage » Rollers » Rollex 450-620

Rollex 450-620

4.5-6.2m

485-520mm

>55hp

1800-2900kg

The versatile roller

Rollex 450-620 is a roller, available in 4.5, 5.0 or 6.2 metre working width. By combining versatility with high quality and productivity, Rollex has become a popular concept. You benefit from high quality design and perfect working results on the field.

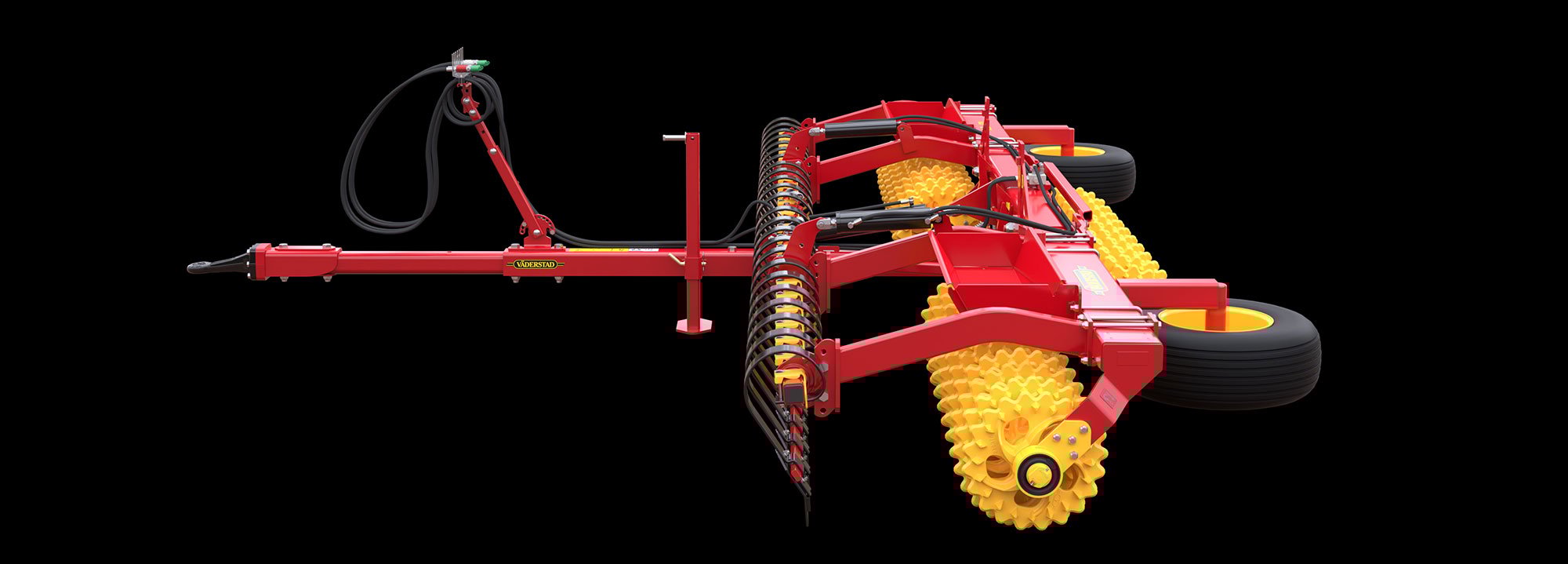

Click to active 360 product spinner

Selected features

Väderstad Rollex unique suspension maximises working life

Unique suspension maximises working life

The rubber suspension of the roller bearings absorbs impacts. This eliminates heavy shocks and significantly increases the working life of bearings, rings and the machines frame.

The bearings are double-sealed to prevent dust from entering.

Read more
Väderstad Rollex - Undisturbed by obstacles

Undisturbed by obstacles

The roller sections pivot at the end of each section. This ensures stones are effectively pressed down, without compromising the levelling result.

You benefit from an even surface, where all plants get the same growing environment.

Read more
Väderstad Rollex - Heavy-duty construction

Heavy-duty construction

Rollex has a strong frame, maintenance-free joints, hardened bushes and high quality roller rings, ensuring a long working life.

The rollers are equipped with axles made of micro-alloyed special steel of the highest quality.

To minimise ring wear in the field, Rollex is fitted with unique spring plates between the roller sections.

Read more
Rollex in field
Väderstad Cambridge ring

Cambridge - The universal ring

The ideal ring for traditional rolling in leys or growing crops, after drilling or in spring. The large serrated ring is designed to give a driving action, while the narrow ring gives the roller a soil cultivating ability, while also acting as a cleaner.

Read more
Väderstad Crosskill ring

Crosskill - Increases cultivation

Crosskill is soil cultivating ring with aggressive profile that leaves a loose, crusting resistant surface while reconsolidating the soil at depth.

The different ring diameters not only give a self-cleaning effect but also offset behaviour, processing more soil in light conditions and consequently lowering the draught requirement.

Read more
Väderstad CrossBoard Heavy for perfect levelling

CrossBoard Heavy for perfect levelling

With CrossBoard Heavy, clods are crushed and the soil is levelled. A double acting stabilising bar increases levelling capacity.

The CrossBoard is equipped with master and slave cylinders, which ensures a level work result by maintaining the position of each CrossBoard section.

Read more

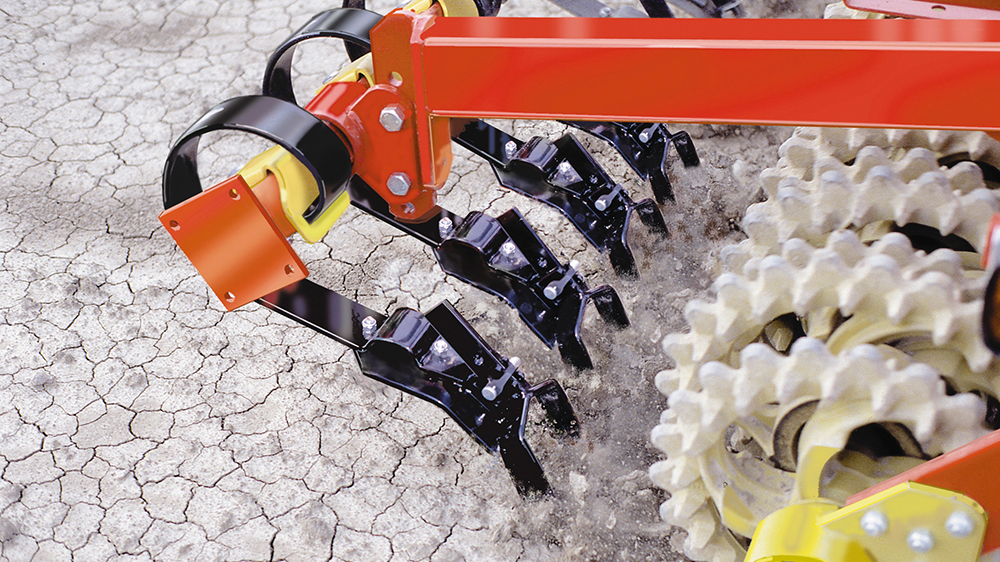

Double knife breaking crust and clods

Crust and clod breaking

With the SingleKnife or DoubleKnife fitted on the CrossBoard Heavy, the cultivation effect is upgraded further. The SingleKnife cuts clods in the top soil in order to reduce clod sizes.

Where there is a hard crust, the DoubleKnife breaks the surface to allow the crop to emerge.

Since the action is directed forwards, you benefit from an intense cultivation without ripping up the soil. Both SingleKnife and DoubleKnife are easy to fit without the need for tools, using the Väderstad QuickChange system.

Read more
Pick up stones when you see them

Pick up stones when you see them

Rolling is often a perfect opportunity to clear the field of stones that have come up to the surface during tillage or frost periods.

With the optional stone trays fitted on Rollex, large amounts of stones can be picked up quickly and easily. After rolling, the field is left ready for drilling or harvesting with no risk of stone damage to machinery.

Read more
Väderstad Rollex easy to transport

Easy to transport

Rollex offer great mobility, both on the field and in transport.

When folded the transport width fits under 2.8 metres. The folding technique of the roller lowers the centre of gravity, thereby making transport safer.

Read more
Rollex with BioDrill clearcut image

BioDrill turns Rollex into a seed drill

With the mountable small-seeder BioDrill it is possible to seed ley, catch crops and other small-seeded crops together with the rolling operation. This saves passes, time and money.

The seed nozzles ensure an even spread in front of the roller. The roller then buries the seeds in the upper topsoil, where the conditions for germination are optimal.

Read more

Product concept

Zone 1 - Crushing and levelling

Rollex offers the possiblity to add a levelling effect and crushing of clods infront of the roller rings.

CrossBoard Heavy

SingleKnife

DoubleKnife

Zone 2 - Consolidation

To fit different farming needs, Rollex can be equipped with different roller rings. The rings are rubber suspended to absorb impacts, thus maximising working life.

Cambridge

Crosskill

Stone trays

Technical data

Rollex 450 510 620
Effective working width (m) 4,5 5,1 6,2
Transport width (m) 2,3 2,8 2,8
Transport height (m) 1,4 1,4 1,4
Number of sections 3 3 3
Weight with Cambridge (kg) 1900 2200 2540
Weight with Crosskill (kg) 1800 2100 2500
Recommended working speed (km/h) 10 10 10
Brakes N/A N/A N/A
Wheel dimension (support wheel) N/A N/A N/A
Wheel dimension (transport wheel) 10,0/75x15,3 10,0/75x15,3 10,0/75x15,3
Hydraulic requirement (SA) * 1-2 1-2 1-2
Draught requirement from (hp) 55 60 70
Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return    DA = Double acting
H = Hydraulic    P = Pneumatic

*If equipped with CrossBoard 2 DA is needed.
